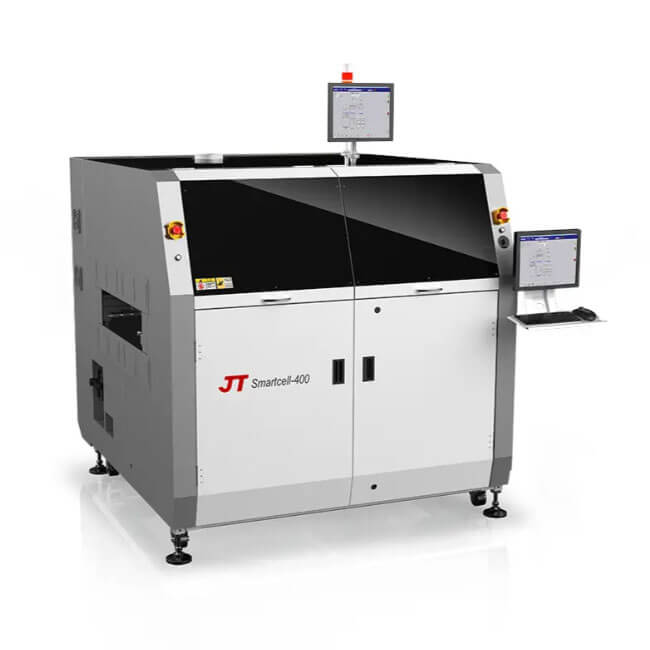

JT Smartcell-400 MIS-300 MIS-450 Selective Soldering Machine
Mini- Selective Wave Soldering System
● The soldering for double-side PCB can be applied automatically
● Offline programming function/ Gerber file can be applicable
● Without any initial PCB data, the figure can be loaded quickly with simple & fast graphic programming; Selective flux spraying can control the flux processing accurately as well as keeping the clear surface of PCB with extremely low flux consumption
● The temperature controls for top and bottom preheating is independent. Infrared heating can improve heating efficiency and keep temperature uniformity
● Transmission speed of wave nozzle is adjustable. Online rail-time wave height monitoring and auto calibration function
● Adopted CCD camera to monitor solder processing, the soldering quality can betraced in whole processing
Description
| Parameters | Smartcell-400 |
| Dimension（L×W×H） | 1650×1800×1650mm |
| Transporting System | |
| PCB Width | 60-400 mm |
| PCB Length | 120-400 mm |
| PCB Top Side Clearance | Max.120 mm |
| PCB Bottom Side Clearance | Min.50 mm |
| PCB Edge Clearance | 4 mm |
| Conveyor Height | 900±20 |
| Conveying speed | 0.2-10M/min |
| Pallet/PCB weight | Max:5kg |
| Flux Module | |
| Flux Capacity | 2L |
| The Size of Flux Nozzle Tube | 130um（Double Nozzle is option） |
| Flux Width | 2-8mm |
| Preheat Module | |
| Bottom Dynamic Infrared Heater | Max: 9KW |
| Temperature Range | RT~250℃ |
| Top Air Heater | Max：6KW |
| Temp. Control Accuracy | ±15℃ |
| Soldering Module | |
| Min Diameter of Solder Nozzle | ¢3/5 |
| Wave Height | 5mm |
| Solder Pot Capacity | 8KG/pot |
| Soldering Temperature | Max ：350 ℃ |
| Heating Time | 40min/(300℃） |
| Pot Heating Power | 1KW/Single pot |
| Location Speed | X/Y：2-200mm/s Z：2-50mm/s |
| Soldering Accuracy | ±0.25mm |
| Control System | |
| PC Operating System | Windows10 |
| Process Visualization | CCD Visual |
| Software Language | Chinese and English Changeable |
| Data Import | Gerber、Image Import |
| Programming Mode | Inline/Offline Programming |
| Electrical Parameter | |
| Power Supply | AC,380VAC 3Φ 5W 50/60Hz |
| Consumption | 22KW |
| Air Exhaust | |
| Air Duct Diameter | ¢150mm |
| Exhaus Air Rate | 360 M³/h |
| N2 Technology | |
| Pressure | 0.4-0.8 Mpa |
| N2 Consumption | Each consumes about 1.5~2 M³/h |
| Concentration | ≥99.999% |
| Parameters | MIS-300 |
| Dimension（L×W×H） | 800×1400×1400mm |
| Transporting System | |
| PCB Width | 60-300 mm |
| PCB Length | 120-330 mm |
| PCB Top Side Clearance | Max.120 mm |
| PCB Bottom Side Clearance | Min.30 mm |
| PCB Edge Clearance | 4 mm |
| Conveyor Height | 900±20 |
| Conveying speed | 0.2-10M/min |
| Pallet/PCB weight | Max: 5kg |
| Flux Module | |
| Flux Capacity | 2L |
| The Size of Flux Nozzle Tube | 130um |
| Flux Width | 2-8mm |
| Preheat Module | |
| Bottom Dynamic Infrared Heater | — |
| Temperature Range | — |
| Top Air Heater | — |
| Temp. Control Accuracy | — |
| Soldering Module | |
| Min Diameter of Solder Nozzle | ¢3/5 |
| Wave Height | 5mm |
| Solder Pot Capacity | 8KG/pot |
| Soldering Temperature | Max ：350 ℃ |
| Heating Time | 40min/(300℃） |
| Pot Heating Power | 1KW/Single pot |
| Location Speed | X/Y：2-200mm/s Z：2-50mm/s |
| Soldering Accuracy | ±0.25mm |
| Control System | |
| PC Operating System | Windows10 |
| Process Visualization | CCD Visual |
| Software Language | Chinese and English Changeable |
| Data Import | Gerber、Image Import |
| Programming Mode | Inline/Offline Programming |
| Electrical Parameter | |
| Power Supply | AC,380V AC 3Φ 5W 50/60Hz |
| Consumption | 4.5KW |
| Air Exhaust | |
| Air Duct Diameter | ¢150mm |
| Exhaus Air Rate | 360 M³/h |
| N2 Technology | |
| Pressure | 0.4-0.8 Mpa |
| N2 Consumption | Each consumes about 1.5~2 M³/h |
| Concentration | ≥99.999% |
| Parameters | MIS-450 |
| Dimension（L×W×H） | 1000×1550×1400mm |
| Transporting System | |
| PCB Width | 60-450 mm |
| PCB Length | 120-530 mm |
| PCB Top Side Clearance | Max.120 mm |
| PCB Bottom Side Clearance | Min.30 mm |
| PCB Edge Clearance | 4 mm |
| Conveyor Height | 900±20 |
| Conveying speed | 0.2-10M/min |
| Pallet/PCB weight | Max:5kg |
| Flux Module | |
| Flux Capacity | 2L |
| The Size of Flux Nozzle Tube | 130um（Double Nozzle is option） |
| Flux Width | 2-8mm |
| Preheat Module | |
| Bottom Dynamic Infrared Heater | — |
| Temperature Range | — |
| Top Air Heater | — |
| Temp. Control Accuracy | — |
| Soldering Module | |
| Min Diameter of Solder Nozzle | ¢3/5 |
| Wave Height | 5mm |
| Solder Pot Capacity | 8KG/pot |
| Soldering Temperature | Max ：350 ℃ |
| Heating Time | 40min/(300℃） |
| Pot Heating Power | 1KW/Single pot |
| Location Speed | X/Y：2-200mm/s Z：2-50mm/s |
| Soldering Accuracy | ±0.25mm |
| Control System | |
| PC Operating System | Windows10 |
| Process Visualization | CCD Visual |
| Software Language | Chinese and English Changeable |
| Data Import | Gerber、Image Import |
| Programming Mode | Inline/Offline Programming |
| Electrical Parameter | |
| Power Supply | AC,380VAC 3Φ 5W 50/60Hz |
| Consumption | 4.5KW |
| Air Exhaust | |
| Air Duct Diameter | ¢150mm |
| Exhaus Air Rate | 360 M³/h |
| N2 Technology | |
| Pressure | 0.4-0.8 Mpa |
| N2 Consumption | Each consumes about 1.5~2 M³/h |
| Concentration | ≥99.999% |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information:
Jacky WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
