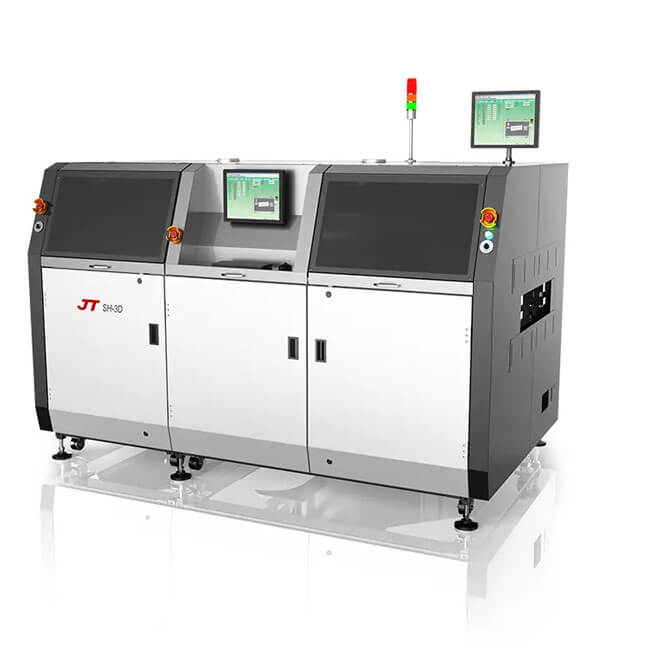

JT SH-3D-450 SH-3D-610 Selective Soldering Machine
SH-3D Integrated Selective Wave Soldering
● Spray Fluxer + Preheating+ Soldering module,integrated design, flexible configuration and free expansion;
● The point soldering module and the group soldering module are freely matched and combined;
● The most efficient selective soldering module;
● Sectional modular transmission structure
Description
| Model | SH-3D-450 |
| Parameters | |
| Dimension L×W×H | 2600×1800×1650mm |
| Transporting System | |
| PCB Width | 60-450mm |
| PCB Length | 120-500mm |
| PCB Top Space | Max：120mm |
| PCB Bottom Space | Max：60mm |
| PCB Edge Size | ≥4mm |
| Conveyor Height | 900±20 |
| Conveying Speed | 0.2-10m/min |
| PCB Weight | Max:5kg |
| Fluxer Module | |
| Flux Capacity | 2L |
| The Size of Flux Nozzle Tube | 130um |
| Flux Width | 2-8mm |
| Preheating Module | |
| Bottom movable Infrared Heater | Max:13.5kw |
| Temperature Range | Room Temperature-250℃ |
| Top Air Heater | Max：6KW |
| Soldering Module | |
| Min Diameter of Solder Nozzle | Min:¢2.5/4.5mm~MAX:¢31/35mm |
| Wave Height | 3-5mm |
| Solder Pot Capacity | Solenoid Pump13KG & Mechanical Pump 8KG |
| Soldering Temperature | Max：350℃ |
| Heating Time | 75min（Solenoid Pump）/45min（Mechanical Pump）(300℃） |
| Location Speed | X/Y：2-200mm/s ; Z：2-100mm/s |
| Temp.Control Accuraey | ±2℃ |
| Soldering Accuracy | ±0.15mm |
| Control System | |
| PC Operating System | Windows 10 |
| Process Visualization | CCD Visual |
| Software Language | Chinese and English Changeable |
| Programming Mode | Inline/Off line Programming |
| Data Import | Gerber, Image Programming |
| Air System | |
| N2 Consumption | Eachꢀconsumesꢀaboutꢀ1.5-2ꢀm³/h |
| N2 Concentration | ≥99.999% |
| Electrical Parameter | |
| Power Supply | 3P5W,380VAC 50/60Hz |
| Consumption | 35KW |
| Air Exhaust | |
| Air Duct Diameter | ¢200mm |
| Exhaust Air Rate | 900m³/h |
| Model | SH-3D-610 |
| Parameters | |
| Dimension L×W×H | 3350×1950×1650mm |
| Transporting System | |
| PCB Width | 60-610mm |
| PCB Length | 120-700mm |
| PCB Top Space | Max：120mm |
| PCB Bottom Space | Max：60mm |
| PCB Edge Size | ≥4mm |
| Conveyor Height | 900±20 |
| Conveying Speed | 0.2-10m/min |
| PCB Weight | Max:5kg |
| Fluxer Module | |
| Flux Capacity | 2L |
| The Size of Flux Nozzle Tube | 130um |
| Flux Width | 2-8mm |
| Preheating Module | |
| Bottom movable Infrared Heater | Max:18kw |
| Temperature Range | Room Temperature-250℃ |
| Top Air Heater | Max：6KW |
| Soldering Module | |
| Min Diameter of Solder Nozzle | Min:¢2.5/4.5mm~MAX:¢31/35mm |
| Wave Height | 3-5mm |
| Solder Pot Capacity | Solenoid Pump13KG & Mechanical Pump 8KG |
| Soldering Temperature | Max：350℃ |
| Heating Time | 75min（Solenoid Pump）/45min（Mechanical Pump）(300℃） |
| Location Speed | X/Y：2-200mm/s ; Z：2-100mm/s |
| Temp.Control Accuraey | ±2℃ |
| Soldering Accuracy | ±0.15mm |
| Control System | |
| PC Operating System | Windows 10 |
| Process Visualization | CCD Visual |
| Software Language | Chinese and English Changeable |
| Programming Mode | Inline/Off line Programming |
| Data Import | Gerber, Image Programming |
| Air System | |
| N2 Consumption | Eachꢀconsumesꢀaboutꢀ1.5-2ꢀm³/h |
| N2 Concentration | ≥99.999% |
| Electrical Parameter | |
| Power Supply | 3P5W,380VAC 50/60Hz |
| Consumption | 45KW |
| Air Exhaust | |
| Air Duct Diameter | ¢200mm |
| Exhaust Air Rate | 900m³/h |
