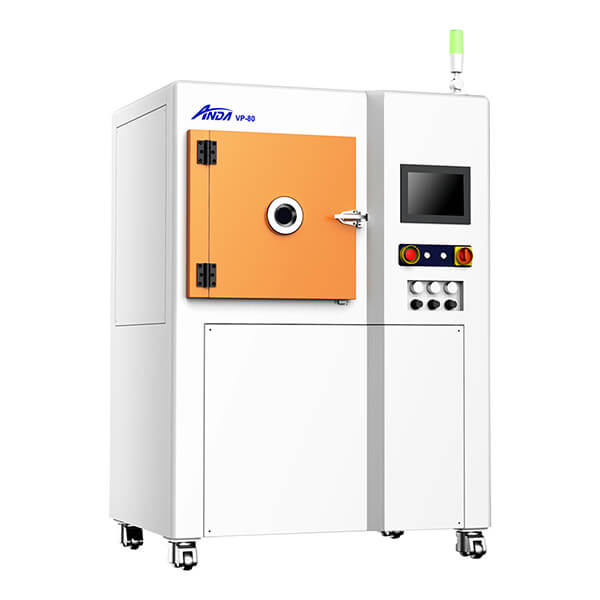

Anda VP60 Offline Vacuum Plasma cleaning machine
VP Series are offline standalone (batch style) plasma treatment units designed for immersive vacuum plasma treatment and activation of a materials surface energy. During this process, materials being treated are completely engulfed within a plasma environment allowing all surface areas of complex parts and materials to be treated and activated simultaneously.
In the electronics industry, we highly recommend plasma treatment prior to selective conformal coating or dispensing processes in order to improve wetting of coatings and the adhesion strengths of coatings and other dispensed materials. When materials are plasma treated, coatings and adhesives are significantly less susceptible to fail. Plasma treatment to electronics ensures maximum protection from coatings and glues and a long product life for the intended device.
Features
- Adjustable Shelves: allow processing of a wide variety of part geometrics
- Batch Style: each unit is complete self-contained, requiring minimal floor space
- Ultra-low Temperature: system operation temperature as low as 40°C
- Omni-directional: complete immersion of the treated material by anisotropic plasma
- Environmentally Friendly: zero chemicals are used and no harmful substances are produced
- Cleaning: remove fine dust, oil, grease and organic compounds
- Activation: Increase surface energy to promote wetting and adhesion
VP-60 Specifications
|
Plasma Treatment Configuration |
|
|
Chamber Size |
L 403 × W 400 × H 403 mm (L 15.87″ x W 15.75″ x H 15.87″) |
|
Electrode Plate Structure |
Horizontal 8 Layers |
|
Electrode Plate Size |
L 320 x W 375 mm (L 12.60″ x W 14.76″) |
|
Vacuum Pump |
Two-stage Rotary Plate Vacuum Pump / Roots Vacuum Pump |
|
Vacuum Measurement |
Pilani Resistance Vacuum Gauge |
|
Working Vacuum |
10-100 Pa |
|
Vacuum Time |
≤ 55 s |
|
Vacuum Evacuation Time |
≤ 15 s |
|
Gas Control Range |
0-300 SCCM |
|
Gas Flow Sensor |
High Precision Mass Flow Meter |
|
Plasma Generator |
500 W |
|
RF Power Supply |
0-500 W (adjustable range) |
|
Automatic RF Matching |
500 W |
|
Facility |
|
|
Standard Footprint |
L 1200 x W 920 x H 1690 mm (L 47.24″ x W 36.22″ x H 66.54″) |
|
Weight |
560 kg |
|
Power |
3 Phase 380 VAC (Standard), 208/480 VAC with transformer (Optional) |
|
Rated Power |
4.0 kW |
|
Gas Generator |
Two working gases are optional (Ar,N2,O2,CF4,CDA) |
|
Pressure |
0.6 Mpa |
|
Interface |
|
|
Controller |
PLC Controller with Touch Panel |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
