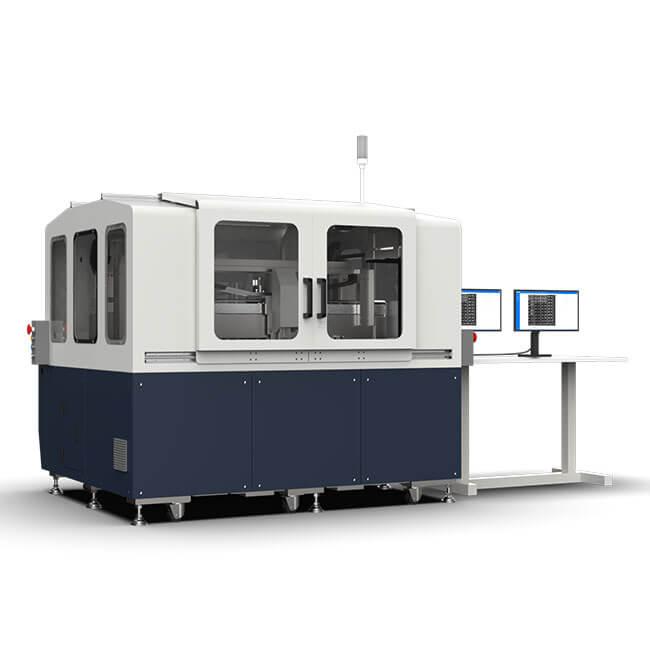

S800 Water immersion ultrasonic scanning microscope

positional accuracy：X/Y≤±0.5μm，Z≤±5μm
Maximum scanning speed：800mm/s
repeated positioning accuracy：X/Y≤±0.01mm，Z≤±0.02mm
Overall size：1900mm×1550mm×1650mm

BASIC INFO

S800 Water immersion ultrasonic scanning microscope

Product Overview:
Ultrasonic scanning microscope (SAT) is a kind of non-destructive testing imaging equipment using ultrasonic as the media. It mainly uses high-frequency ultrasonic to detect all kinds of semiconductor devices and materials, and can detect the defects such as pores, cracks, inclusions and delamination inside the sample, and display them visually in a graphical way.
In the scanning process, it will not cause damage to the sample, will not affect the performance of the sample, and can effectively meet the needs of new energy, semiconductor, power electronics, thermal management materials, diamond composite materials, carbon fiber composite materials and other industries.
Product features:
1, with A (spot scanning), B (longitudinal scanning), C (horizontal scanning), multi-layer scanning, tray-tray scanning, thickness measurement and other series of scanning modes.
2, with quantitative measurement and analysis function, visually display the position, shape and size of the internal defects of the tested parts in the form of images, and carry out the size and area statistics of the defects, and automatically calculate the percentage of defects in the measured area; With defect size identification; Thickness and ranging functions.
3, with image coloring function, can automatically color according to phase reversal; Manual coloring according to gray level; Automatic coloring according to thickness changes;
4, suitable for the rapid scanning analysis of a single device, can also be placed in batches of samples synchronous defect identification, quickly screen out unqualified products.
5, compatible with 1~110MHz ultrasonic probe.
6, testing software independent research and development, English and Chinese interface, can be continuously upgraded according to customer needs.
7, can be adapted to double probes according to needs, improve detection efficiency.
