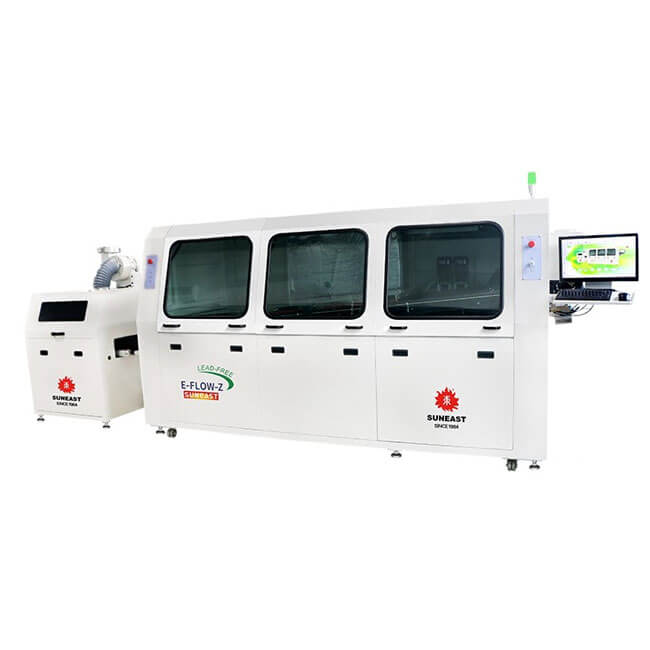

SUNEAST E-FLOW-Z/Z450/Z610 Wave Soldering Machine
Soldering Oven E-FLOW-Z Series
Model:E-FLOW-Z｜450｜610
External spraying unit: eliminate safety risks, easy maintenance.
Preheating system: adopts high energy efficiency motor with high thermal efficiency.
Conveying system: adopts special design for smooth conveying and prevent finger shaking.
Exhausting system of spraying: adopts upper and lower exhausting and air knife for separating, to eliminate odor overflow.
Exhausting hood system: with high exhausting efficiency, anti foreign matter dripping design can be added , to eliminate quality trouble.
Conveyor：Direct buffering input structure.Stainless steel chain conveyor， durable and special design for aluminum alloy track.Adopt segment floating structure to prevent from deformation
Pre-heatingzones：Designforenergysavingandremovablemodules(drawerdesign).Anycombinationofinfraredandhotairconvection.Use PID control to achieve±2C accuracy.The temperature variation for pre-heating zone and soldering zone is less than s 5℃
Flux spraying system：Managed by digital control.The motion of the spray nozzle is controlled by stepper motor.Flux supply is controlled automatically for optimized effect.Exhausting and filter system installed on the top
The solder pot is made by cast iron with anti-corrosion ceramic coating equipped with two low flowrate nozzles
Aircoolingsystem：coolingrate4-6C/s(adjustable)
PC+PLC control system.Windows 7 operation system with Chinese/English operation interface.Processing profile and data auto saving function.Alarm for detecting the flux and solder level
Product parameters
| Modol NO | E-FLOW-Z(External spraying) |
| Dimension：LxWxH(mm) | 5050x1420x1750 |
| Weigh | Approx， 1850kg |
| Power Supply | 3PH 380V 50HZ |
| Startup Power | 33KW |
| Operation Powr Consumption | Approx.8KW |
| Control System | PC+PLC |
| Spraying movement | Step motor |
| Spray Pressure | 0.2Mpa-0.4Mpa |
| Flux Flow Arrange | Option |
| Auto Fill Flux | Standard |
| Exhaust | Top exhaust |
| ExhaustDucting Diameter(mm) | Φ250 |
| Exhaust tan power | 750W |
| Preheating Mode | Convection / IR emitter |
| Control Mode | PID |
| Preheating Zone Number | 3 |
| Preheating Length(mm) | 1800 |
| Preheating Temperature | Room temperature~200℃ |
| Warm-upTime(min) | Approx.12min(setting：150℃) |
| Blower Motor | 150W 3PH 220VAC |
| PCB Width(mm) | 50~350 |
| Convoyor Direction | L-R(Option：R→L) |
| Conveyor Speed(mm/min) | 500-1800 |
| Conveyor Height(mm) | 750±20 |
| Available Component Heigh (mm) | Top120,Bottom15 |
| Conveyor Speed Control Mode | Closed loop stepless speed regulationg Inverter |
| Fingers | Spring Pressing Finger/D-40Type Fingor/Double-hook Finger/Heavy type double hook f inger,Options |
| Conveyor Angle | 4-7° |
| Type of solder Pot | Motor drive |
| Solder Pot Material | Casting Iron |
| Wave Height Adjustment | In verte Approx：Digital Control by PC |
| Cooling Method | Air Cooling Option：Water cooing |
| Heater Power | 13.5KW |
| Solder Pot Temperature | 300℃ |
| Solder Pot Capacity | Approx.480kg |
| Wave Drive Power | 180W*2 3PH 220VAC |
| Solder Pot Warm-up Time | Approx.150min(setting：250℃) |
| Temperature Control Mode | PID |
| Finger Cleaning System | Brush |
| Modol NO | E-FLOW-Z450(External spraying) |
| Dimension：LxWxH(mm) | 5050x1520x1750 |
| Weigh | Approx.2050kg |
| Power Supply | 3PH 380V 50HZ |
| Startup Power | 33kw |
| Operation Powr Consumption | Approx.9KW |
| Control System | PC+PLC |
| Spraying movement | Step motor |
| Spray Pressure | 0.2Mpa-0.4Mpa |
| Flux Flow Arrange | Option |
| Auto Fill Flux | Standard |
| Exhaust | Top exhaust |
| ExhaustDucting Diameter(mm) | Φ250 |
| Exhaust tan power | 750W |
| Preheating Mode | Convection / IR emitter |
| Control Mode | PID |
| Preheating Zone Number | 3 |
| Preheating Length(mm) | 1800 |
| Preheating Temperature | Room temperature~200℃ |
| Warm-upTime(min) | Approx.12min(setting：150C) |
| Blower Motor | 150W 3PH 220VAC |
| PCB Width(mm) | 50-450 |
| Convoyor Direction | L-R(Option：R-L) |
| Conveyor Speed(mm/min) | 500-1800 |
| Conveyor Height(mm) | 750+20 |
| Available Component Heigh (mm) | Top120,Bottom15 |
| Conveyor Speed Control Mode | Closed loop stepless speed regulationg Inverter |
| Fingers | Spring Pressing Finger/D-40Type Fingor/Double-hook Finger/Heavy type double hook f inger,Options |
| Conveyor Angle | 4-7” |
| Type of solder Pot | Motor drive |
| Solder Pot Material | Casting Iron |
| Wave Height Adjustment | In verte Approx：Digital Control by PC |
| Cooling Method | Air Cooling Option：Water cooing |
| Heater Power | 13.5KW |
| Solder Pot Temperature | 300℃ |
| Solder Pot Capacity | Approx.550kg |
| Wave Drive Power | 180W*2 3PH 220VAC |
| Solder Pot Warm-up Time | Approx 150min(setting：250℃) |
| Temperature Control Mode | PID |
| Finger Cleaning System | Brush |
| Modol NO | E-FLOW-Z610(External spraying) |
| Dimension：LxWxH(mm) | 5050x1690x1750 |
| Weigh | Approx.2300kg |
| Power Supply | 3PH 380V 50HZ |
| Startup Power | 45KW |
| Operation Powr Consumption | Approx.11KW |
| Control System | PC+PLC |
| Spraying movement | Step motor |
| Spray Pressure | 0.2Mpa-0.4Mpa |
| Flux Flow Arrange | Option |
| Auto Fill Flux | Standard |
| Exhaust | Top exhaust |
| ExhaustDucting Diameter(mm) | Φ250 |
| Exhaust tan power | 750W |
| Preheating Mode | Convection / IR emitter |
| Control Mode | PID |
| Preheating Zone Number | 3 |
| Preheating Length(mm) | 1800 |
| Preheating Temperature | Room temperature~200℃ |
| Warm-upTime(min) | Approx.12min(setting：150℃) |
| Blower Motor | 250W 3PH 220VAC |
| PCB Width(mm) | 50-610 |
| Convoyor Direction | L-R(Option：R-L) |
| Conveyor Speed(mm/min) | 500-1800 |
| Conveyor Height(mm) | 750±20 |
| Available Component Heigh (mm) | Top120,Bottom15 |
| Conveyor Speed Control Mode | Closed loop stepless speed regulationg Inverter |
| Fingers | Heavy type double hook f inger/ |
| Opt on：Special jig for fixture | |
| Conveyor Angle | 4~7° |
| Type of solder Pot | Motor drive |
| Solder Pot Material | Casting Iron |
| Wave Height Adjustment | In verte Approx：Digital Control by PC |
| Cooling Method | Air Cooling Option：Water cooing |
| Heater Power | 18KW |
| Solder Pot Temperature | 300℃ |
| Solder Pot Capacity | Approx.640kg |
| Wave Drive Power | 180W*2 3PH 220VAC |
| Solder Pot Warm-up Time | Approx.150min(setting：250C) |
| Temperature Control Mode | PID |
| Finger Cleaning System | Brush |
