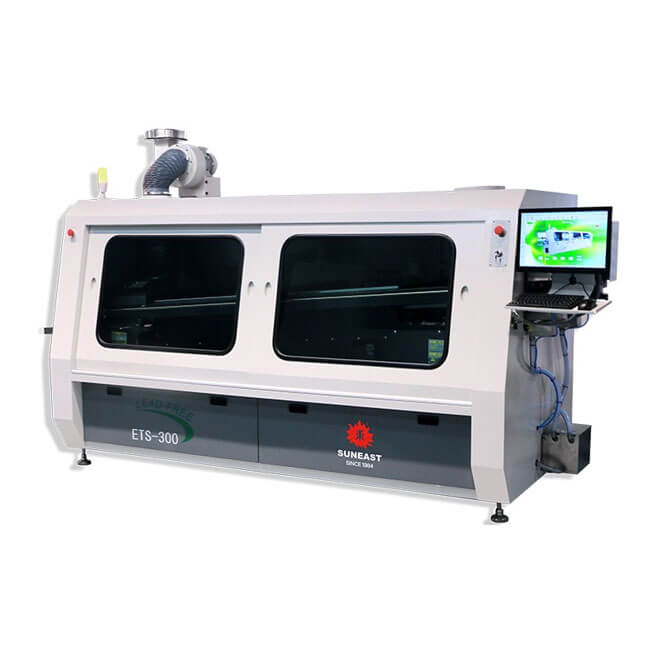

SUNEAST ETS-300 ETS-300E Wave Soldering Machine

Dimension：LxWxH(mm):3385x1240x1540
Conveyor Height(mm):750±20
PCB Width(mm):50~300
Weigh:Approx.1150kg

BASIC INFO

SUNEAST ETS-300 ETS-300E Wave Soldering Machine

Small Wave Soldering ETS Series

Model:ETS-300

Compact structure and small footprint.

PC+PLC control system.

IR preheating, high thermal efficiency and uniform temperature.

Step motor control spraying, more stable and reliable.

Adopts small solder pot, reduces the cost.

●Transportation：Input board directly.Stainless steel chain conveyor， durable and special design for aluminum alloy track.Applied floating track for different

stages for preventing deformation.

●Preheatingsystem：Drawer-typeenergy-savingdesign， IR preheating， PID mode temperature control， temperature control accuracy can reach±2℃， the

temperature dropping is≤5℃between preheating zone and soldering zone

●Flux spraying system：Managed by digital control.The motion of the spray nozzle is controlled by stepper motor.Flux supply is controlled automatically

for optimized effect.Exhausting and filter system installed on the top

●The solder pot is made by cast iron with anti-corrosion ceramic coating equipped with two low flowrate nozzles.

●Forced air cooling system.

●PC+PLC control system， Windows 7 operatingsystem， Chinese/English operation interface， process profile/data automatic storage function， lower or higher flux level alarm； lower tin level alarm.

Product parameters

Modol NO	ETS-300
Dimension：LxWxH(mm)	3385x1240x1540
Weigh	Approx.1150kg
Power Supply	3PH 380V 50HZ
Startup Power	28KW
Operation Powr Consumption	7KW
Control System	PC+PLC
Spraying movement	Step motor
Spray Pressure	0.2Mpa~0.4Mpa
Flux Flow Arrange	option
Auto Fill Flux	Standard
Exhaust	Top exhaust
ExhaustDucting Diameter(mm)	Φ250
Exhaust tan power	370W
Preheating Mode	IR
Control Mode	PID
Preheating Zone Number	2
Preheating Length(mm)	1500mm
Preheating Temperature	Room temperature~200℃
Warm-upTime(min)	Approx.12min(seting：150℃)
PCB Width(mm)	50~300
Convoyor Direction	L→R(Option：R→L)
Conveyor Speed(mm/min)	500~1800
Conveyor Height(mm)	750±20
Available Component Heigh (mm)	Top120,Bottom15
Conveyor Speed Control Mode	Closed loop stepless speed regulationg Inverter
Fingers	1.Heavy type double hook finge 2.Light double hook finger(Option)
Conveyor Angle	4~6°
Type of solder Pot	Motor drive
Solder Pot Material	Casting Iron
Wave Height Adjustment	Digital Control by PC
Cooling Method	Air cooling
Heater Power	9KW
Solder Pot Temperature	300°C
Solder Pot Capacity	Approx.350KG
Wave Drive Power	180W*2 3PH 220VAC
Solder Pot Warm-up Time	Approx.150min(setting：250C)
Temperature Control Mode	PID
Finger Cleaning System	Brush

Modol NO	ETS-300E
Dimension：LxWxH(mm)	3385x1190x1540
Weigh	Approx.1100kg
Power Supply	3PH 380V 50HZ
Startup Power	27KW
Operation Powr Consumption	6.7KW
Control System	PC+PLC
Spraying movement	Step motor
Spray Pressure	0.2Mpa~0.4Mpa
Flux Flow Arrange	option
Auto Fill Flux	Standard
Exhaust	/
ExhaustDucting Diameter(mm)	Φ250
Exhaust tan power	/
Preheating Mode	IR
Control Mode	PID
Preheating Zone Number	2
Preheating Length(mm)	1500mm
Preheating Temperature	Room temperature~200℃
Warm-upTime(min)	Approx.12min(seting：150℃)
PCB Width(mm)	50~300
Convoyor Direction	L→R(Option：R→L)
Conveyor Speed(mm/min)	500~1800
Conveyor Height(mm)	750±20
Available Component Heigh (mm)	Top120,Bottom15
Conveyor Speed Control Mode	Closed loop stepless speed regulationg Inverter
Fingers	1.Heavy type double hook finge 2.Light double hook finger(Option)
Conveyor Angle	4~6°
Type of solder Pot	Motor drive
Solder Pot Material	Casting Iron
Wave Height Adjustment	Digital Control by PC
Cooling Method	/
Heater Power	220V9KW
Solder Pot Temperature	300°C
Solder Pot Capacity	Approx.350KG
Wave Drive Power	180W*2 3PH 220VAC
Solder Pot Warm-up Time	Approx.150min(setting：250C)
Temperature Control Mode	PID
Finger Cleaning System	/
