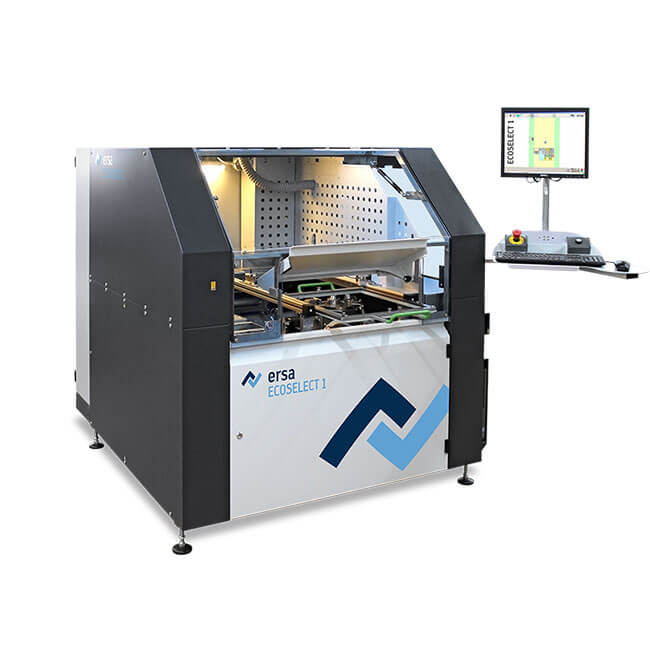

ERSA ECOSELECT 1 Selective Soldering Machine
Small Selective Soldering System with outstanding technology.
Tech-Highlights ECOSELECT 1
Compact batch system with small space requirement
Same components and software modules from the well-known VERSAFLOW 3 platform
Highest quality of the products, also in the entry level of selective soldering
Technical Data
ECOSELECT 1
Dimensions
|
Length: 1,700 mm Width: 1,500 mm |
Height: 1,612 mm |
Conveyor support
|
Universal mask holder PCB width: 15-406 mm (optional 508 mm) PCB length: 15-508 mm |
Maximum PCB build-up at the top up to 120 mm Maximum PCB build-up bottom up to 60 mm (30 mm to z-variable) Maximum PCB weight: 8 kg (optional 12 kg) |
Flux module / Preheat modul / Solder module
|
Fluxer: Drop-Jet in different sizes Preheater: IR heating , convection or combination of IR and convection |

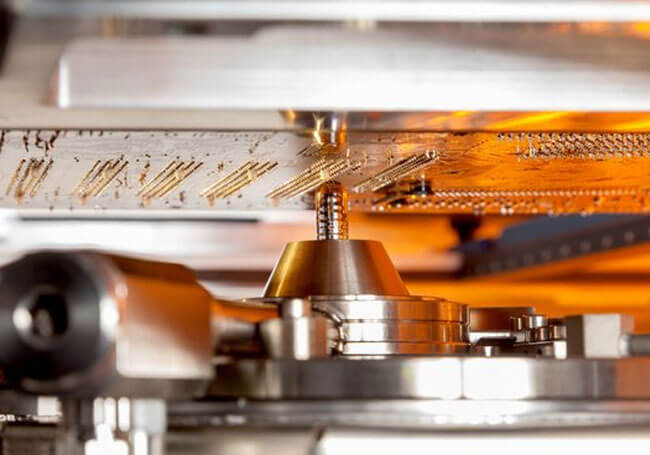

Soldering module: Electromagnetic solder pot Mini-wave 13 kg, up to 2 pots |
