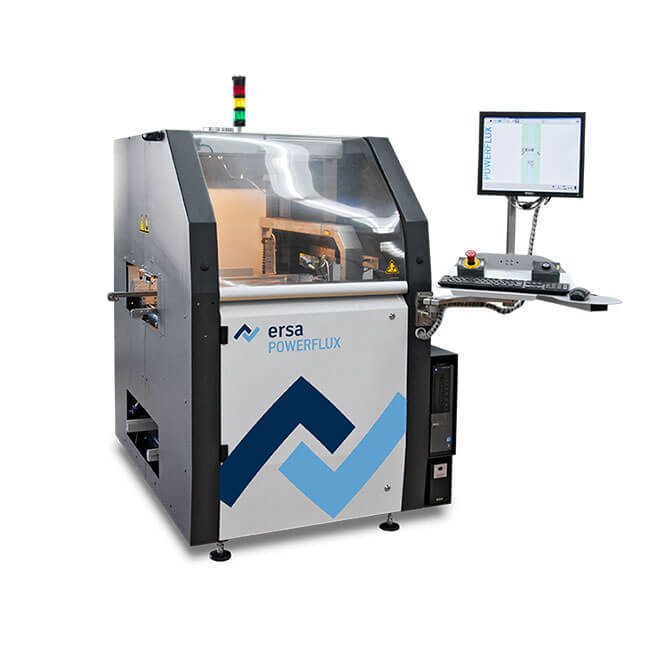

ERSA POWERFLUX Selective Soldering Machine
Best selective process safety even with highest throughput.
Tech-Highlights POWERFLUX
XL-version for 610 x 610 mm PCBs
Reduction of flux consumption up to 95%
Short payback period
Reduction of flux residue on the PCB
Reduced maintenance efforts on the fluxer unit and soldering system
Reduced efforts to maintain the solder masks or pallets
Increased service life for the solder masks or pallets
Technical Data
POWERFLUX
Dimensions
|
Length: 1.689 mm Width: aprox. 1.080 mm |
Height: aprox. 1.557 mm |
Conveyor support
|
Chain pin conveyor PCB width: 60-508 mm PCB length: 60-508 mm |
Maximum PCB top side cleareance up to: 120 mm Max. PCB bottom side clearance: 60 mm Max. PCB weight: 8 kg |
Fluxer
Drop-Jet in different sizes
