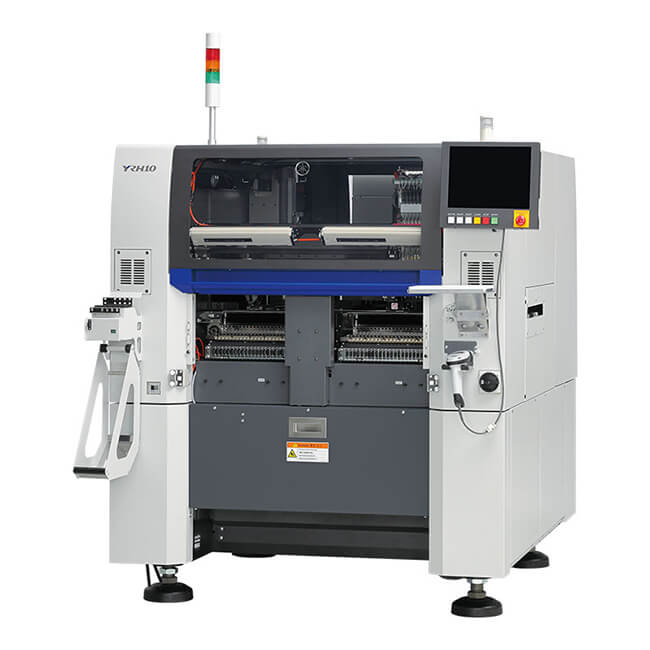

Yamaha i-Cube 10(YRH10) Hybrid Pick and place machine

Placement Speed : 10,800CPH
Applicable PCB : 330*250mm
Applicable Part : 0201 to □16mm, H15mm (multi camera)
Accuracy: ±15μm

BASIC INFO

Yamaha i-Cube 10(YRH10) Hybrid Pick and place machine

Hybrid mounting
Realize mixed mounting of semiconductor and SMD

High-speed and high-accuracy mounting
±15μm(Cpk≧1.0) CPH10,800(when die is supplied from wafer) Note: under optimum conditions

Upgraded component supply
Intelligent feeder

Handling Large PCBs
L330 x W250mm

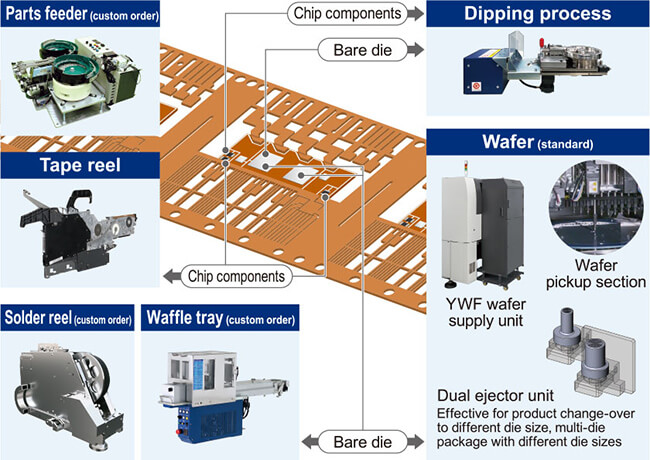

Mixed mounting of semiconductor and SMD

It is capable of various types of the production process, and YRH10 realizes SMT for semiconductor, SMD in one unit. Post-mounting inspection is provided as a standard feature.

Supply patterns

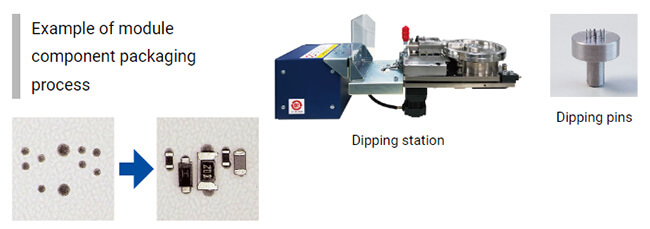

Pin transfer of adhesives (option)

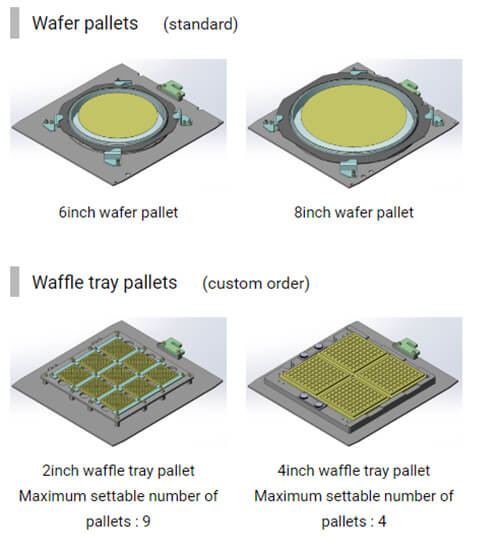

Pallet typesc

High-speed and high-accuracy mounting

Placer with 10-nozzles on the mounting head realizes high productivity while maintaining high-level mounting accuracy.

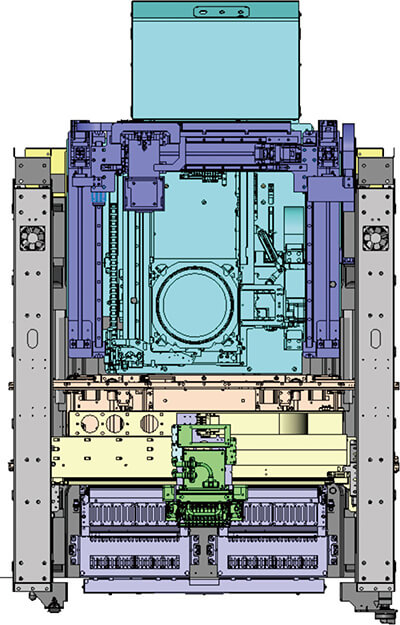

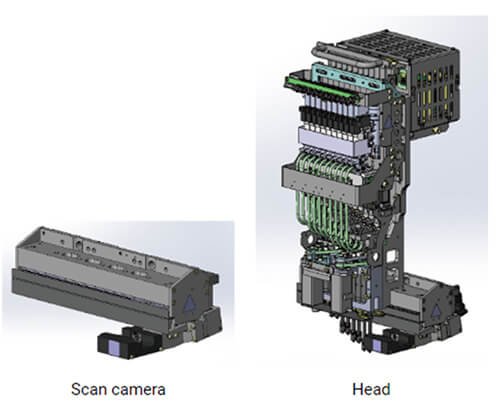

Inline head with a scan camera

High-speed flexible head covers from super-tiny components to middle size odd-shaped components. The adoption of a scan camera makes the operation distance from pickup to mounting shortest, which achieves high productivity.

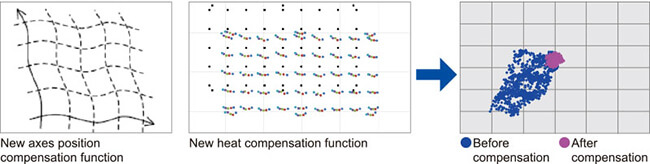

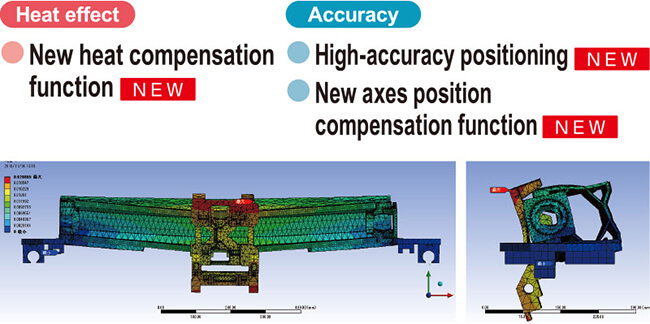

Multiple Accuracy Compensation System (MACS)

New compensation function + high-accuracy positioning

Yamaha proprietary Compensation System realizes high mounting accuracy of ±15μm (μ+3σ).

Available for intelligent feeder and various options

Available for intelligent feeder which improves the pickup accuracy for tape reel component.
Combining with the Multiple Accuracy Compensation System MACS realizes high-accuracy component pickup and mounting.

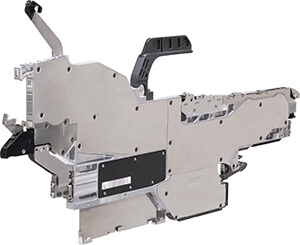

ZS feeder

Available for electric intelligent feeder which are also used for machine. Compact and light-weight feeders improve the workability and reduces burdens to operators.

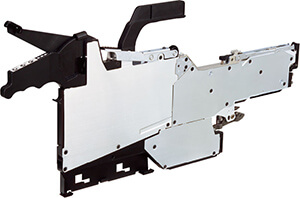

Auto Loading Feeder

An Auto Loading Feeder for which two reels can be set in advance is also supported. This type eliminates the need for splicing and can vary the supply timing. This significantly reduces the decrease in the operating rate due to running out of components.

Various options

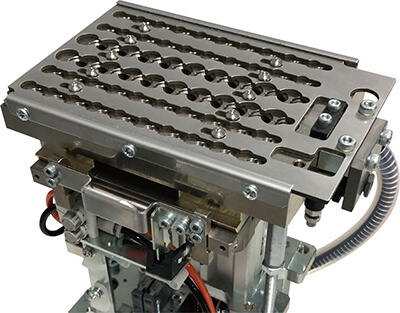

Nozzle station
Make automatic replacements of special and spare nozzles.

Available for nozzles stations, blow stations, and other options for various applications.

Options

1. Nozzle station

2. Blow station

3. PCB height measurement laser sensor

4. Nozzle height compensation touch sensor

5. Multi camera (A complete set for the front is available as an option,field of view : 20mm)

6. Ionizer (tape feeder side and wafer side)

7. IT option Note

8. YSUP Programming / YSUP Material Information Note

9. Dipping station

10. Wafer mapping (comes with barcode reader) Note

11. Pin sensor

12. Machine internal lamp LED

13. Temporary holding station (Mounted on front side of machine : 1 pc. maximum)

14. Muzzle plate (conveyor port safety cover)

15. QFP recovery conveyor

16. Monitor offset

17. Reel holder

18. Empty tape box

19. Flat ring tray (extended 6.8 inches)

Note : Please inquire for further information.

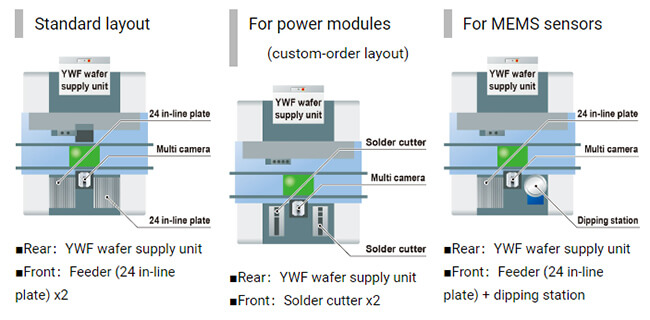

Applicable for various production processes

Customizable for various production layouts based on product types.
The highly productive flexible placer contributes to realizing highly efficient production processes.

Yamaha i-Cube10 (YRH10)
Applicable PCB		L50 x W30mm to L330 x W250mm
PCB thickness		0.1 to 4.0mm
PCB conveyance direction		Left ⇒ Right (option : Right ⇒ Left)
Conveyer reference		Front
Mounting accuracy (Cpk≧1.0)		±15μm
Mounting capability		10,800 CPH (when die is supplied from wafer) Note : under optimum conditions
Number of component types		Reel : Max. 48 types (conversion for 8mm tape feeder)
		Wafer : Max. 10 types
Die	Die size	□0.35 to □16mm Note
	Die thickness	0.1 to 0.5mm Note
	Wafer size	6 to 8 inch wafers, 2 to 4 inch waffle trays
	Wafer magazine	Wafer : Max. 10 types
SMD	Component size	0201 to □16mm, H15mm (multi camera)
		0201 to □12mm, H6.5mm (scan camera)
	Tape size	8 to 104mm
	Max feeder count	Max. 48 types (for 8mm feeder)
Power supply		3-phase AC 200/208/220/240/380/400/416V ±10% 50/60Hz
Air supply source		0.45 MPa or more, in clean, dry state
External dimension		L1,252 x W1,962 x H1,853mm
Weight		Approx. 1,560kg
