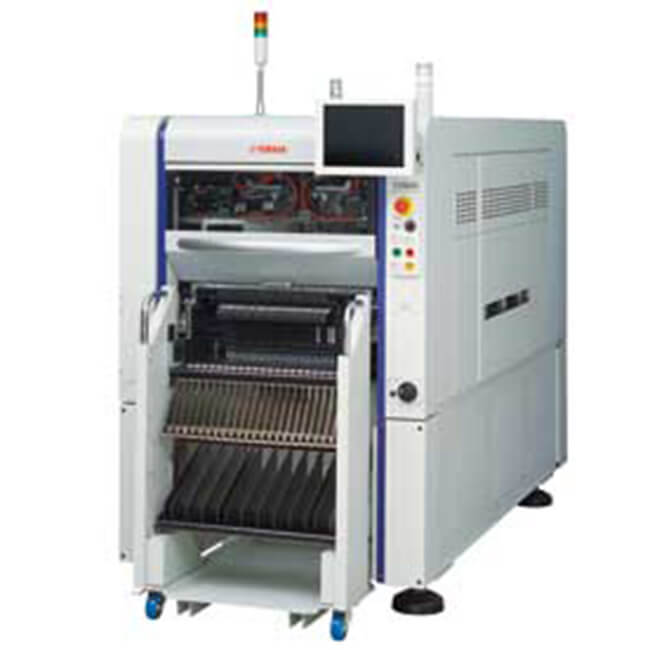

Yamaha YSM40 Pick and place machine
1. Compact and multifunctional
2. Intelligent ES feeders with a thin, lightweight and compact design
3. Transport direction: from left to right
4. Double PCB transport
5. Cutoff device for excess tape (rear and front)
6. Indicator of mounting/arming feeders accuracy
7. System of exchangeable heads
8. Machine width: 1 meter
9. System of device lock after opening the aperture
10. Easy transport of feeders - trolleys for feeders replacement (option)
11. Maximum number of feeders: 92
12. PCB dimensions: 50 x 50 do 700 x 460 mm
13. Yield: 100 000 cph
| Model | YSM40 |
| Applicable PCB | L700×W580mm to L50×W50 mm |
| Mounting heads (mountable head types) | Choice of three head variations to accommodate various components |
| ●High-speed head: 0402 - 4532 (metric base), height 3mm or less | |
| ●Multi-head: 0402 - 45×100mm, height 15mm or less | |
| ●Odd-shaped components head: 0402 - 45×100mm, height 25.5mm or less, odd shapes | |
| Mounting capability | Over 100,000 CPH (using 4-beam format with high-speed head/multi-head) |
| Mounting accuracy | Absolute accuracy (μ+3σ): ±0.04mm/CHIP, ±0.04mm/QFP |
| Repeatability (3σ): ±0.03mm/CHIP, ±0.03mm/QFP | |
| Number of component types | 2-beam type:Tape reel 92 types (Max./8mm width) |
| 4-beam type: Tape reel 88 types | |
| (Fixed bank conditions, max./8mm width) | |
| Power supply | 3-phase AC200/208/220/240/380/400/416V ±10% |
| Air supply | 0.45MPa |
| External dimensions | L1,000×W2,100×H1,550mm(excluding protrusions) |
| Weight | Approx. 2,100kg |
