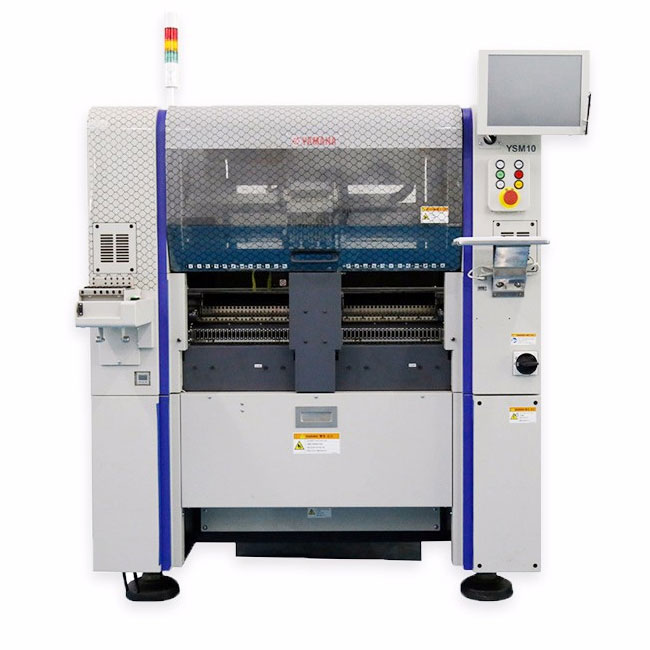

Yamaha YSM10 Pick and place machine

Placement Speed : 46,000CPH
Applicable PCB : 510*460mm
Applicable Part : 03015mm to W55 x L100mm (For parts sizes larger the width 45mm, recognition of parts is divided into sections.), Height 15mm or less
Accuracy: +/-0.035mm (+/-0.025mm) Cpk 1.0 (3σ)

BASIC INFO

Yamaha YSM10 Pick and place machine

YSM series entry model mounter that achieved both the world’ s fastest speed and versatility in its class worldwide!

Ultimate basic machine featuring the three "1"

Flexible response for different production configurations!

Functions that ensure stable production

Ultimate basic machine featuring the three "1"

1 head solution!

Handles a wide range of components from 03015mm (0.3 × 0.15mm) ultra-micro-chips to large parts 55 × 100mm and 15mm in height and needs no head replacement since it uses high-speed general-purpose heads the same as high-end models.

New scan camera

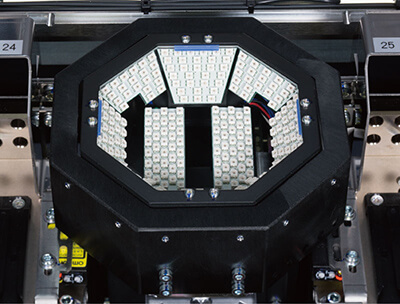

Improves scan camera performance that expands the size of high-speed mounting parts to 12mm.Supports ball recognition such for BGA and CSP, etc.

HM (High-speed Multi) head

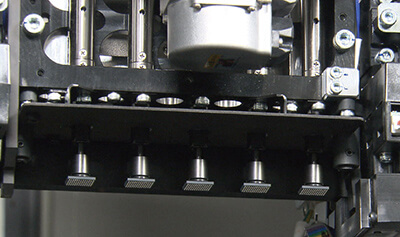

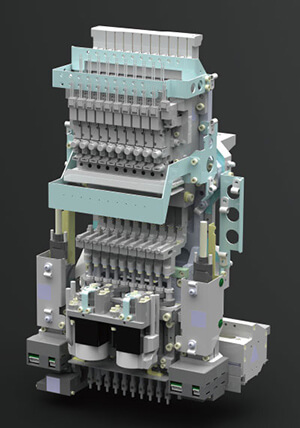

Standard type with 10 nozzle specifications for a compact body, light-weight, high-speed and versatility.

HM 5 head

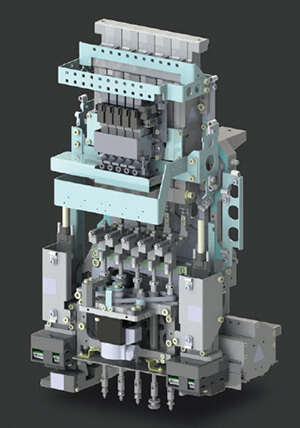

Economy type having 5 nozzles with HM head functions unchanged, it is selectable according to productivity and budget needs.

The world’s fastest mounting speed in its class!

By adopting a new-generation servo system from upper-ranked models and utilizing a lightweight and compact universal type head we have speeded up mounting more than 25% compared to conventional models to achieve the world’s fastest mounting speed in its class of 46,000 CPH (chips per hour).

Single Platform

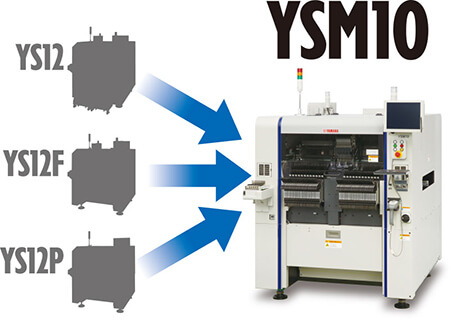

Here, 3 models or namely the YS12 with flexibility and mobility, YS12P with some simpler specifications, and YS12F with superb component handling compatibility are integrated into one type of platform. This is a super-entry model combining high parts compatibility and versatility along with the usual small size body, high speed, and space saving specs.

Flexible response for different production configurations!

Compatible components

Multi-camera

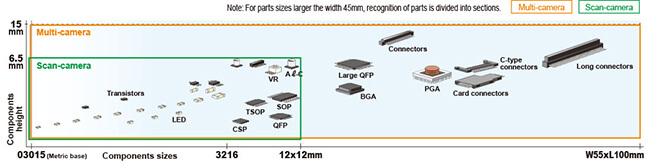

High-speed and high-accuracy parts recognition to sizes exceeding 12mm or heights exceeding 6.5mm.

Nozzle station

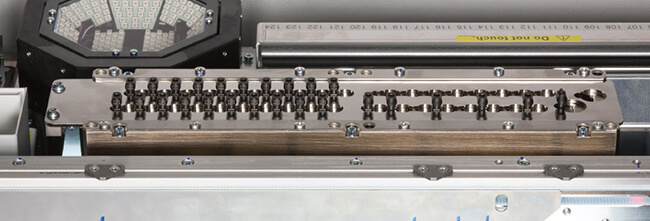

Automatic replacement of spare nozzles and special order nozzles available.

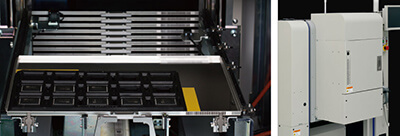

Automatic replacement tray supply unit "sATS15"

A maximum of 15 parts trays can be loaded. (at tray pitch of 12.5mm)

Tape feeder

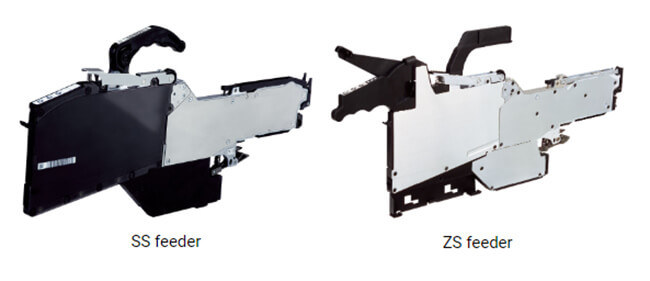

Electric-drive intelligent feeders "SS feeder" and "ZS feeder" fully compatible with all YS series models.

Functions that ensure stable production

Side view function

Eliminates mounting errors by detecting parts, missing parts, and part pickup status with no time loss.

Automatic recognition optimizer function

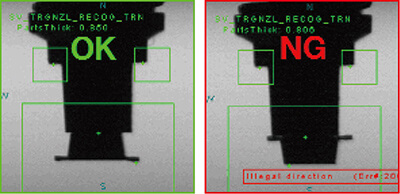

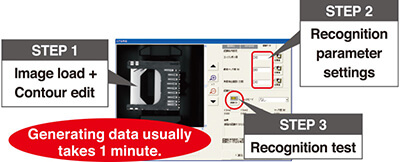

Prevents pickup and recognition errors by applying a function (smart recognition) that does easy data generation for parts having complex shapes and also a recognition data auto-generator & tracking function. (es-Vision)

Blow station

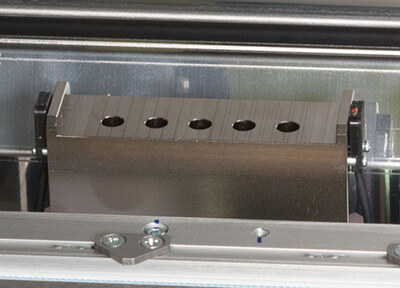

Nozzle shafts are automatically cleaned to keep the nozzle in good condition for long periods of time. A nozzle health check function applies automatic recovery processes such as nozzle blow and a protect function to prevent use of abnormal nozzles.

Highly stable & reliable pickup system

Maintains superb part pickup performance by way of a pickup height auto--teach function and pickup position auto compensator function.

Conforms to CE marking standards

Worldwide operability with equipment design that gives safety number one priority.
Note: This name signifies a safety standard required for equipment for install and usage in Europe.

YSM10
Applicable PCB	L 510 x W 460mm - L 50 x W 50mm
	Note : Available in lengths up to L950mm as an option.
Applicable components	03015mm to W55 x L100mm (For parts sizes larger the width 45mm, recognition of parts is divided into sections.), Height 15mm or less
	Note : A multi camera (option) is required for part heights exceeding 6.5mm or part sizes exceeding 12mm
Mounting capability	HM head (10 nozzle) specification : 46,000CPH (under optimum conditions as defined by Yamaha Motor)
	HM 5 head (5 nozzle) specification : 31,000CPH (under optimum conditions as defined by Yamaha Motor)
Mounting accuracy	+/-0.035mm (+/-0.025mm) Cpk 1.0 (3σ)
(Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
Number of component types	Fixed plate : Max. 96 types (conversion for 8mm tape feeder) Note 1
	Tray : 15 types (maximum when equipped with sATS15, JEDEC)
Power supply	3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source	0.45MPa or more, in clean, dry state
External dimension	L1,254 x W1,440 x H1,445mm
Weight	Approx. 1,270kg
