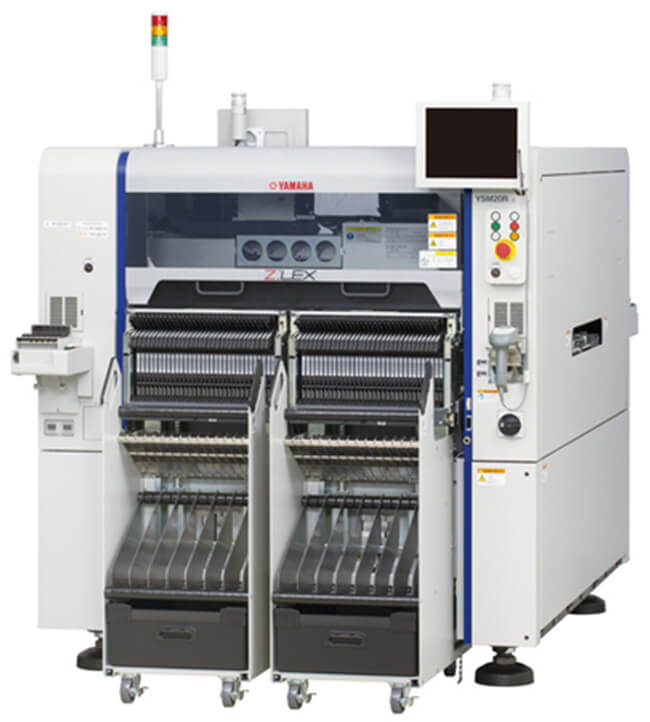

Yamaha Z:LEX YSM20W Pick and place machine
Handles a maximum PCB width of up to 356 mm where the same width PCB is being conveyed at the front and rear while in dual-lane specification mode. In this case, the head will continue to function without front or rear head strike for up to a maximum PCB width of 324 mm achieving high-efficiency implementation without loss.
In single-lane specification mode, PCBs can be conveyed at up to a maximum length of 810 mm, maximum width 742 mm, a conveyable weight of up to 10 kg, and a thickness of up to 8 mm. This new model is also compatible with a wide range of extra-large-sized PCB's and jig conveyance etc., including for automotive products, industrial, medical, power devices, and LED lighting.
| Model | YSM20W | |
| Applicable PCB | Single lane | L 810 x W 742 mm - L 50 x W 50 mm |
| Dimensions | Dual-lane | L 810 x W 356 mm (×2) - L 50 x W 50 mm |
| (Front lane Max W 662 mm) | ||
| Applicable Components | High-speed Multi (HM) Head: | |
| 03015 – 45 x 45 mm L 100 mm (Height 15 mm or less) | ||
| Flexible Multi (FM) head: | ||
| 03015 – 55 x 55 mm L 100 mm (Height 28 mm or less) | ||
| Mounting capability | X is 2 Beam: | |
| (The Company's optimum | At High-speed Multi (HM) Head x 2 spec | |
| conditions) | 80,000 CPH | |
| Mounting accuracy | ±0.035 mm (±0.025 mm) Cpk≧1.0 (3σ) | |
| *In the Company's optimum | ||
| conditions | ||
| (standard material used for | ||
| evaluation) | ||
| Number of component types | Fixed plate: Max 140 types (8mm Tape Conversion) | |
| Feeder Exchange Carriage: Max 128 types | ||
| (8mm Tape Conversion) | ||
| Tray: 30 types (Fixed type), 10 types (Carriage type) | ||
| can be equipped with up to a total of two carriages | ||
| Power supply | 3-phase AC 200/208/220/240/ | |
| 380/400/416 V ±10% 50/60 Hz | ||
| Air supply | 0.45 MPa or more, clean and dry state | |
| External dimensions | L 1,374 x W 2,110 x H 1,480 mm | |
| (not including projected parts) | ||
| Weight | Approx. 2,500 kg | |
