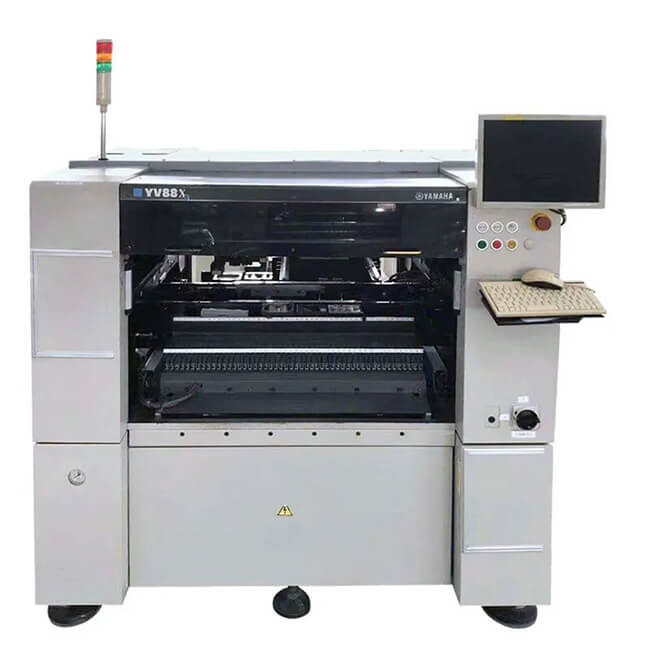

Yamaha YV88X Pick and place machine
The Yamaha YV88X pick and place machine is an advanced equipment used in the electronics manufacturing industry for high-speed and accurate placement of surface mount components onto printed circuit boards (PCBs). It offers a wide range of functionality and features that enhance placement accuracy, speed, and versatility.
| Model | YV88X |
| Board size | MAX.460 x 335 MIN.50 x 50 mm |
| PCB Thickness | 0.4 ~ 3.0mm |
| Conveyor Transfer | Right→ Left(Left→ Right:Option) |
| Tact Time | 0.55sec/chip,0.9sec/QFP |
| Feeder Sta. | 94 station(8mm Tape Feeder) |
| Feeder Type | 8~56mm Tape Feeder/Bulk Feeder/Stick/Tray |
| Components | 0603 ~ 54mm,CSP,BGA,QFP |
| Power | AC200~416V±10% 3PH,50/60Hz,4kVA |
| Air | 5 Kgf,150N/mim |
| Dimension(LxWxH) | 1650 x 1408 x 1850mm |
| Weight(kg) | 1570 |
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
