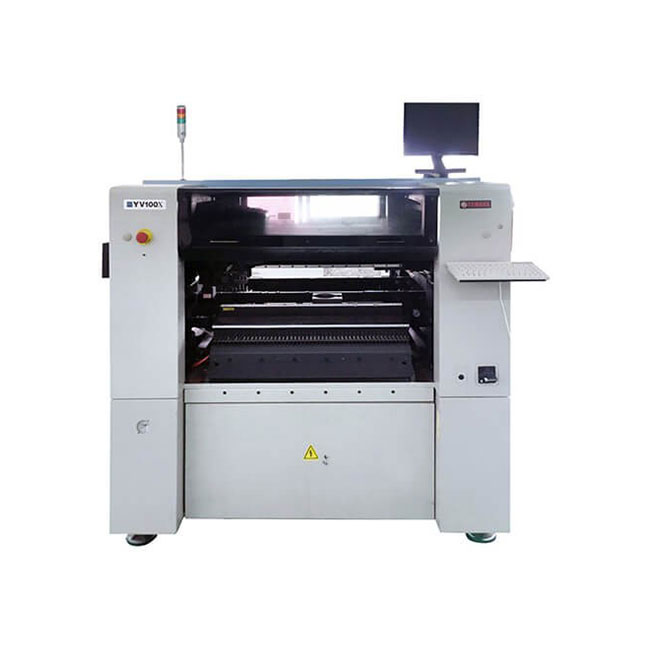

Yamaha YV100X Pick and place machine
Yamaha YV100X placement machine is using the latest Yamaha latest closed-loop technology and dual drive technology. Yamaha YV100X Multi-functional placement machine is using DOS operating system. This SMT mounting machine is equipped with a working head, 8 nozzles, 2 high-resolution multi-vision digital camera, optional with YAMAHA patented flight for the first move, Components from 0201 (British) micro-components to 32mm chip SMD components, including IC, QFP, SOT, SOP, SOJ, PLCC, BGA, and other components such as connectors can be mounted using Yamaha YV100X SMT Machine. Yamaha YV100X Mechanical structure is simple,a casting frame made to ensure durability and stability, the circuit control is not complicated, and designed for easy maintenance. The menu is relatively simple, easy to operate, can be easily modified stickers 1.2 m long LED light board. Yamaha YV100X YV100X mid- speed multi-function placement machine is suitable for small and medium batch production and with high-speed placement output.
Model: Yamaha YV100X
PCB size: L460 x W445 mm (Max.), L50 x W50 mm (Min.)or L460 x W335 mm
Accuracy: +-0.1 mm(Chips), +-0.08 mm(QFP)
Mounting Speed: 0.198 sec/chips, 1.7 sec/QFP
Mounting angle: +-180°, per0.01°
Space for cassettes: 100 of 8mmTape, and 80 trays with YTF. (Option)
Available feeders: 8-56 mmTapes, Sticks, Bulks, Trays
Available Components: From 0.6mmX0.3mm to 32 mmX100 mm, Maximum component height 6.5 mm
Maximum mounting data: 10000 mounting line/ 1 production data, Maximum 500 production data in the hard disk.
Machine size: L1, 655XW1, 408XH1, 850 mm
Power Supply: 3-Phase AC 200/208/220/240/380/400/416 V +1-10% 50/60 Hz
Air supply: source 0.55 MPa or more,(4 to 6 Bar) in clean, dry states
Machine weight: 1,450 kg
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
