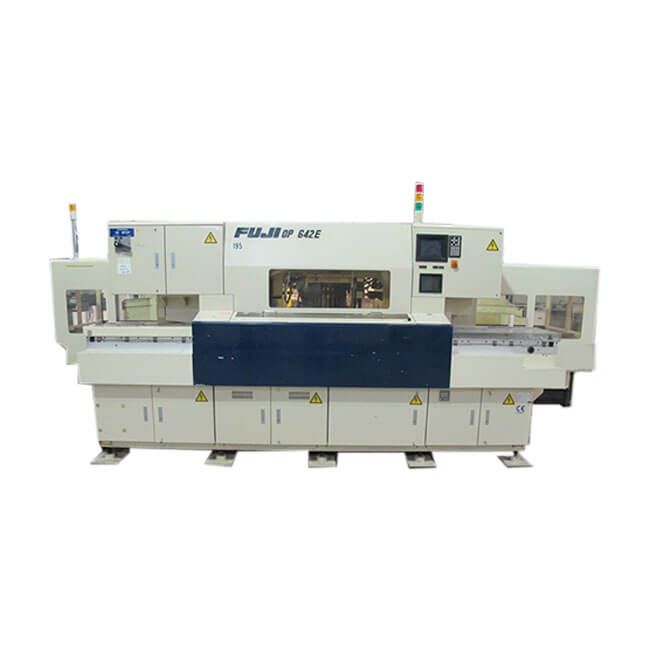

FUJI CP643E Pick and place machine
PCB dimensions Max: 457mm x 356mm Min: 80mm x 60mm
Board Thickness: 0.3 to 4.0 mm
Component capacity Up to 140 types (8mm tape)
PCB loading time 0.7 sec./PCB with double PCB loading
1.4 sec./PCB with single PCB loading
Loading time does not include X-Y table movement.
Double PCB loading is possible upto 220mm in length
Placing rate 0.09 sec./component - 40,000 CPH
Applicable components 0402 to 19 x 20 mm
Maximum Component Height: 6mm
Placing Accuracy ± 0.01mm (3 s)
Power 3 phase 200 to 480 VAC, 10 kVA
1.25 kVA in power saving mode
Air Supply 0.5 MPa (5 kgf/Cm2)
Machine dimensions L : 4843mm W : 1734mm H : 1851mm
Weight Approx. 6500 kg
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
