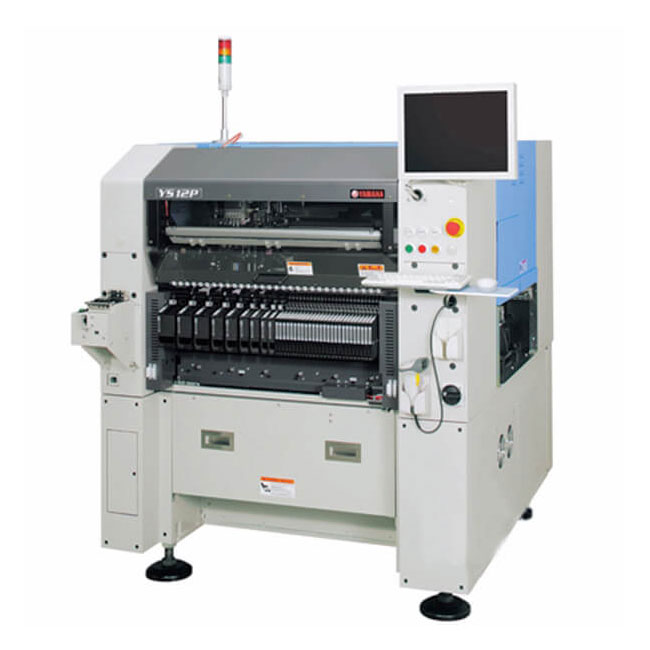

Yamaha YS12P pick and place machine
Yamaha YS12P Pick and Place Machine is a compact modular SMT placement machine. The YS12P is capable of mounting components from 0402 to 32 x 32mm maximum size with a mounting speed of 24,000CPH. High-speed mounting capacity handling 24,000CPH (0.15sec/CHIP equivalent) High flexibility for components 0402 to 32 x 32mm components, the height up to 6.5mm. Yamaha YS12P is applicable to large size PCB, L510 x W460mm to L50mm x W50mm. Yamaha YS12P Pick and Place Machine also handle tray package components by Manual Tray(MT) Built-in Tape cutter.
Specification
YS12P (Model : KKD-000)
Applicable PCB L510 x W460mm to L50mm x W50mm
Mounting accuracy Absolute accuracy(μ+3σ) +/-0.05mm/CHIP
Mounting tact 24,000CPH(under our optimum condition)
Component supply Tape reel, tray
Number of component types Tape package components: 59 types(Max/8mm tape reel conversion) Tray package conversion: 2 types(Max/JEDEC tray conversion)
Applicable components 0402 to 32 x 32mm MAX, including ball type electrode components
Applicable height 6.5mm
Power supply 3-Phase AC 200/208/220/240/380/400/416 V +/-10%
Air supply source 0.45MPa
External dimension L1,254xW1,440xH1,445mm (not include the projection)
Weight Approx. 1,250kg
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
