Yamaha YS12F pick and place machine

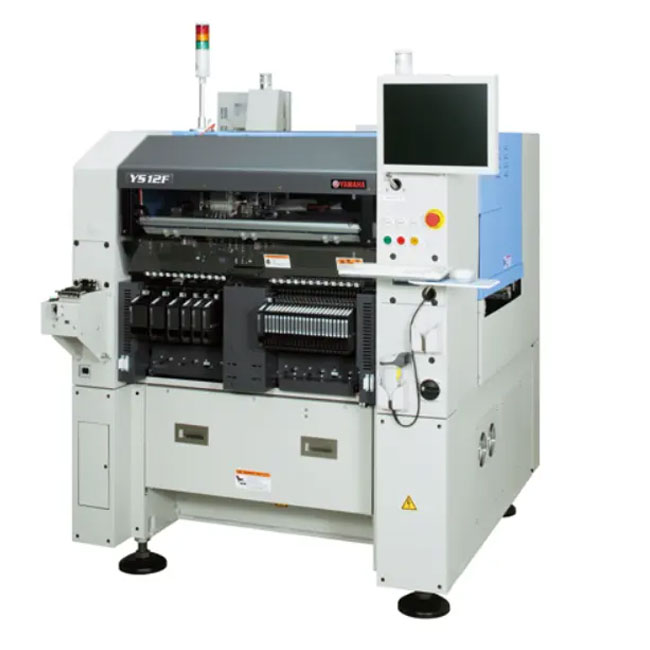

Yamaha YS12F pick and place machine is a compact High-Speed Modular mounter. In order to achieve high accuracy mounting , MACS is adopted. This system has a function to grasp the elements of the machine that affect the mounting accuracy organically and make overall and multiple adjustment for compensation.
YAMAHA nozzle station ( ANC: Auto Nozzle Change ) & nozzle cleaning station ( for exceuting nozzle self-cleaning) is adopted to maximize part placement speed and production efficiency.
YAMAHA YS12F mounter equipped with Multi-camera with side light, is suitable for mounting various components, such as CSP, QFP, BGA, TSOP, SOP, VR, connector, Iarge QFP, long connector(up to 100mm), C type connector... It shows wide flexibility and excellent mounting quality well of YAMAHA pick and place machine.
| Model Number | YS12F |
| Applicable PCB | L510 x W460mm to L50 x W50mm |
| Mounting tact (Optimum) | 20,000CPH (0.18sec/CHIP Equivalent) |
| Mounting accuracy | Absolute accuracy: +/-0.05mm/CHIP , +/-0.05mm/QFP |
| (Yamaha's standardcomponents) | Repeatability: +/-0.03mm/CHIP , +/-0.03mm/CHIP |
| Applicable components | 0402 to 45x100mm, including ball type electrode components *32x32mm or more needs special nozzle set |
| Applicable height | 15mm |
| Numberof componenttype types | Tape package components: 106 types(Max/8mm tape reel conversion)Tray package conversion: 15 types(Max/JEDEC tray conversion) |
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz |
| Air supply source | 0.45MPa or more, in clean, dry states |
| External dimension | L1,254 x W1,440 x H1,450mm |
| L1,254 x W1,755 x H1,475mm (when ATS15 mounted; not include the projection) | |
| Weight | Approx. 1,370kg |
| Weight | 1,340kg |
