  •  Yamaha YS12 pick and place machine

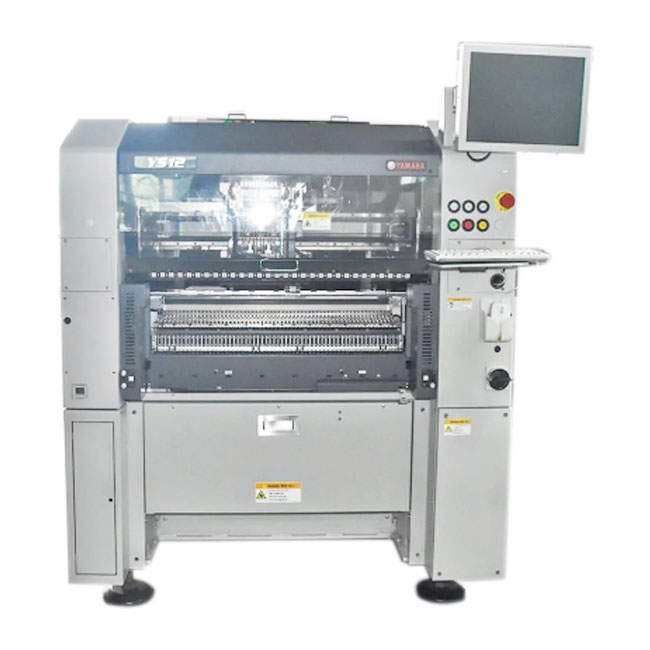

Yamaha YS12 pick and place machine

Yamaha YS12 pick and place machine

  • Placement Speed :36,000CPH
  • Applicable PCB :510*460mm
  • Applicable Part : 4 mm×4 mm to 100 mm×100 mm
  • Accuracy (u+30):±0.05mm/CHIP
BASIC INFO

Yamaha YS12 pick and place machine

The Yamaha YS12 pick and place machine is the most flexible, space-efficient machine on the market, offering unmatched capability. It is the solution for customers requiring many feeding positions, large board sizes and significant output.

A newly developed -ultra thin- feeder platform with an electrical intelligent feeder allows the YS12 to hold up to 120 feeding positions enabling high flexibility for large mix and minimum changeover environments with high reliable pick up rates. The ability of handling a large variety of products with a very wide range of components and product complexity, the YS12 is a future proof capable machine ensuring that your production capabilities will keep ahead of the rapid evolution of electronic components and packaging solutions.
With a space productivity of 20k components per hour (cph) per square meter, the YS12 is the most productive chip shooter on the market. With its length of merely 1.25 meters, its 10 inline heads, combined with a new recognition system, the YS12 achieves a speed of 36k cph.
Performance is guaranteed with the advanced optic scanning camera and integrated side-view camera. Simultaneous measuring of the X- and Y-sides of the component provide the most optimal accuracy and mount reliability.

ltem

Data

Model NO.object substrate

Yamaha YS12

L50×W50mm ~L510×W460mm

Mounting efficiency

(ptimal conditions)36,000 CPH (0.1 sec / CHIP equivalent)

bsolute accuracy

(u+30):±0.05mm/CHIP

Mounting accuracy

Standard components of our company

Object Element

(0402mm series name)~32*mm Note 1 *Corresponding from January 2010

Type of component

120 Max.Converted to 8 mm tape

Power Specification

Three phase AC200/208/220/240/380/400/416 V ±10%50/60 Hz

Air Supply source

Above 0.45PA,clean and dry

Contour dimension

L1,254×W1,440×H1,450mm(Above the cover plate)

Weight

1,340kg

SMT Pick and place machine Brand

Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591  Email: sales@efsmt.com

FAQ:

Q: What we can do for you?

A: One-stop SMT Solution Supplier; Reliable SMT Partner.

Q.What is your MOQ requirement for the machine?

A. 1 set moq requirement for the machine.

Q. This is the first i use this kind of machine, is it easy to operate?

A: Provide free trainingThere are also English manuals or instructional videos to show you how to use the machine.

Q: If the machine has any problem after we receive it, how can we do?

A: Our engineer will help to solve it first,  and free parts send to you in machine warranty period.

Q: Do you provide any warranty for the machine?

A: Yes 1 year warranty will be provided for the machine.

Q: What is your payment terms?

A: 30% deposit in advance and 70% balance before shipment.
