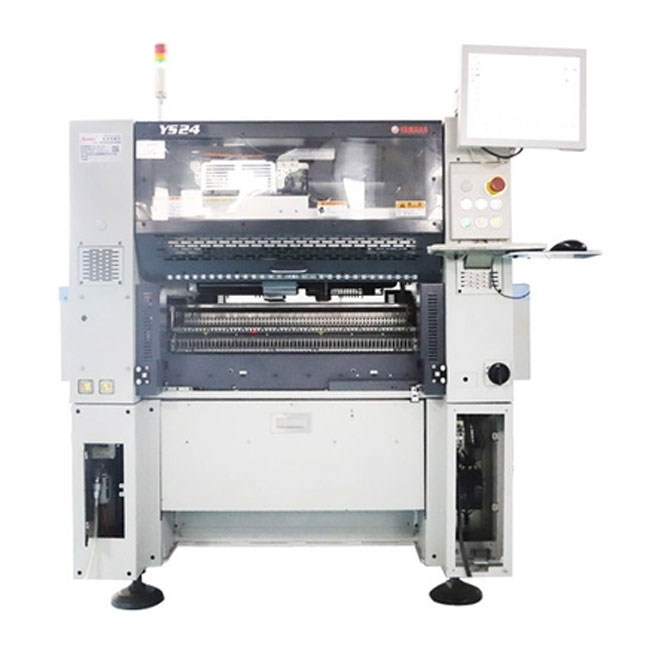

Yamaha YS24 pick and place machine

Placement Speed :72,000CPH
Applicable PCB :700*460mm
Applicable Part : 0402 (Metric bases) to 32mm components (Height 6.5mm or less)
Accuracy (u+30):±0.05mm/CHIP

BASIC INFO

Yamaha YS24 pick and place machine

The YAMAHA YS24 is a machine with a compact super high modular. The mounting of this YAMAHA concept started from the YS12 and eventually became the YS24, providing an, even more, compact super high-speed modular. That makes for a unique feature of high productivity in the area and becoming the top class in the world. It can mount 72,000 CPH per square meter of space, which shows that it is the best. That is why it’s an excellent product in the world.

A machine’s width is only 1254 millimeters and the depth is 1440 millimeters. And despite its compact size, it can handle a maximum of up to 120 tape feeders, and comes with two sets of narrow pitch can inline multi heads. The newly designed “Dual Stage Conveyor” is another great feature added to this YAMAHA YS24, for this new concept has a conveyor system where a stage moves inside the front and rear heads simultaneously mounting the PCB components.

Model	YS24
Applicable PCB	L700×W460mm to L50×W50mm
Mounting Capability	72,000CPH (0.05 sec./CHIP: Optimum conditions established by Yamaha Motor)
Mounting Accuracy	Absolute accuracy (μ+3σ) :+/-0.05mm/CHIP
Mounting Accuracy	Repeatability (3σ) :+/-0.03mm/CHIP
Applicable Components	0402 (Metric bases) to 32mm components (Height 6.5mm or less)
Component Types	120 type (Max, 8mm tape reel conversion)
Power Supply	3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air Supply Source	0.45MPa
External Dimensions	L1,254 x W1,440 x H1,450mm (Excluding protrusions)
Weight	1,700kg
