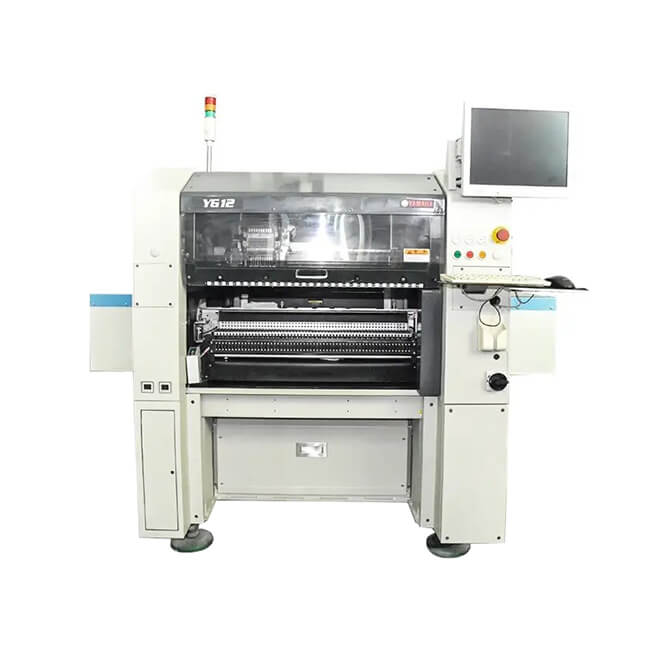

Yamaha YG12 Pick and Place Machine
The YG12 pick and place machine streamlines the assembly process, reduces manual labor, and improves production efficiency in electronic manufacturing. Its advanced features and user-friendly interface make it a valuable tool for achieving accurate and reliable PCB assembly.
1. Setup: Prepare the machine by loading the appropriate feeders with components and ensuring the PCB is securely fixed on the machine's worktable.
2. Programming: Use the machine's interface to create or import the pick and place program. Define the component positions, orientations, and any specific placement requirements.
3. Calibration: Calibrate the machine by aligning the vision system and adjusting placement parameters to ensure accurate component detection and placement.
4. Operation: Start the pick and place process, and the machine will automatically pick components from the feeders and place them onto the PCB according to the programmed sequence. Monitor the operation for any errors or issues.
5. Inspection: Once the placement is complete, inspect the PCB to verify the alignment and solderability of the components. Perform any necessary rework or adjustments if required.
6. Maintenance: Regularly clean the machine, inspect and replace worn-out parts if needed, and follow the manufacturer's maintenance guidelines to ensure optimal performance and longevity.
| Specifications | YAMAHA YG12 Pick and Place Machine |
| Applicable PCB | L 510 x W 460mm - L 50 x W 50mm* Option: Up to L610 mm available |
| Mounting capability | 46,000CPH (The Company's optimum conditions) |
| Applicable components | 03015-W 55 x L 100mm (divided recognition for over W 45mm), H: 15mm or less |
| Mounting accuracy | ±0.035 mm (±0.025 mm) Cpk>=1.0 (3σ) |
| Number of component types | Setting Plate : Max 96 types (8mm)Tray : 15 types (sATS 15 equipment) |
| Power supply | 3-phase AC 200/208/220/240/380/400/416 V ±10% 50/60 Hz |
| Air supply source | 0.45MPa or more, clean and dry state |
| External dimension | L 1,254 x W 1,440 x H 1,445mm (excluding protrusions) |
| Weight | 1,270kg |
