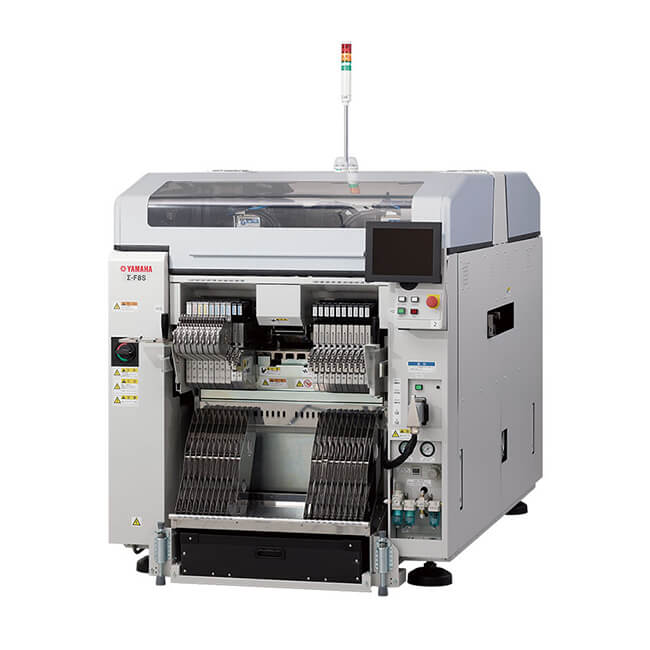

Yamaha Σ-F8S Pick and Place Machine
The Yamaha Σ-F8S, a new model of premium modular “Σ” series, is an evolutionary advancement of the Σ-F8. The existing model employs a rotary direct drive head to achieve 150,000 CPH*2 (in optimum conditions), the world’s fastest level. The Σ-F8S achieves an effective 5% tact improvement on average and greater productivity compared to the existing version, and with its improved mounting accuracy this new model is also capable of handling the extremely small-sized 0201 (0.25 x 0.125 mm) chip components.
1) Improved productivity and accuracy due to revised XY axis design
Introduction of leading-edge control technology together with the adoption of an off-set type linear motor through a logic-based design revision of the XY drive axes. The supporting beam of the head has been made more lightweight and with reduced vibration. Because of this, the effective tact delivers a 5% productivity improvement on average over existing models. At the same time, mounting accuracy of ± 25μm (3σ), which corresponds to handling the extremely small-sized 0201 chip components, has also been achieved.
2) Compatibility with Current Σ Series Model
Compatibility of the main options with the current model Σ-F8 has been maintained, including with the head, nozzle, nozzle stocker, and tape feeder. This allows for users of the current Σ series to continue to use their specialized equipment as they implement this new equipment hassle free.
| Model | Yamaha Σ-F8S | |
| Applicable PCB | Single lane | L 330 x W 250 mm - L 50 x W 50 mm |
| Dimensions | (Option: L 381x W 510 mm - L 50 x W 50 mm) | |
| Dual-lane | L 330 x W 250 mm - L 50 x W 50 mm | |
| Applicable Components | High-speed head: 0201 - 4.3 x 3.4 mm | |
| (Height 2.0 mm or less) | ||
| High-speed Multi-Purpose head 03015- 33 mm | ||
| (Height 12.7 mm or less) | ||
| Mounting capability | High-speed head x 4 Spec: | |
| (The Company's optimum | 150,000 CPH (Dual-lane) | |
| conditions) | 136,000 CPH (Single lane) | |
| Mounting accuracy | High-speed Head: | |
| *In the Company's optimum | 0201/03015: ±25μm (3σ) (140,000CPH) | |
| conditions | 0402/0603: ±36μm ( 3σ) (150,000CPH) | |
| (standard material used for | ||
| evaluation) | ||
| Number of component types | Max 80 types (8 mm width tape conversion) | |
| Power supply | Three-phase AC 200±10% 50/60 Hz | |
| Air supply | 0.45 MPa or more, clean and dry state | |
| External dimensions | L 1,280 x W 2,240 x H 1,450 mm | |
| (not including projected parts) | ||
| Weight | Approx. 1,940 kg (Not including cart) | |
