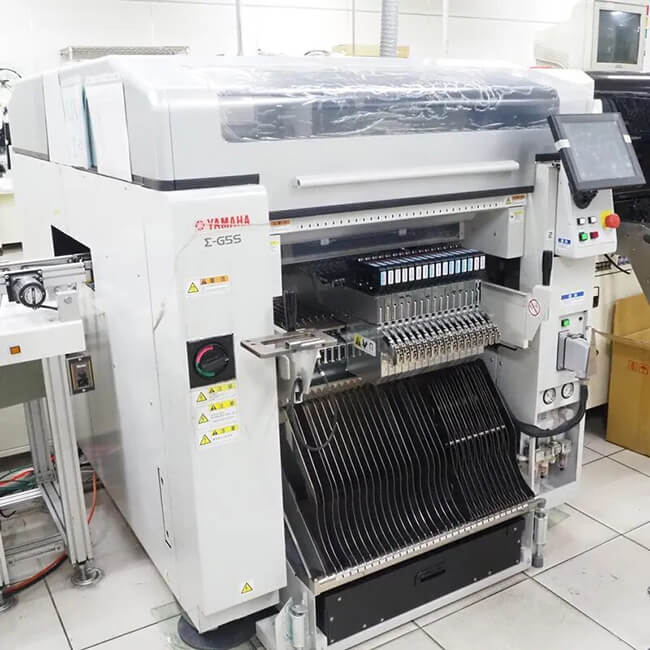

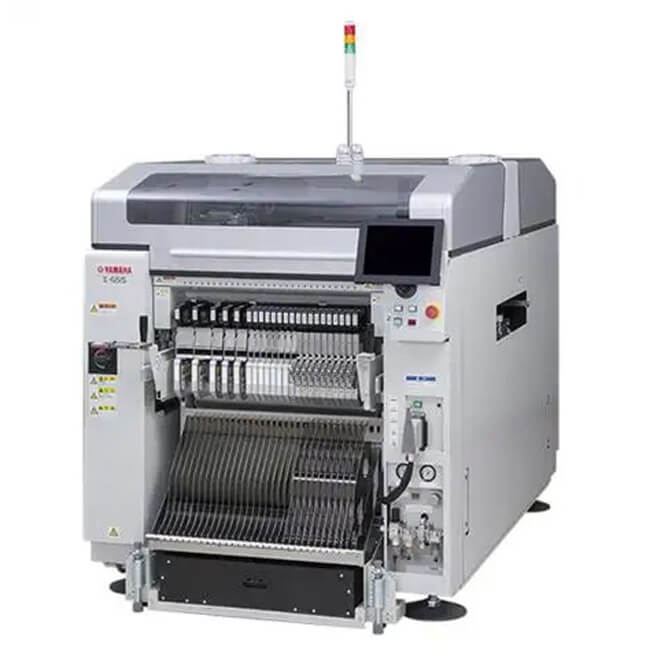

Yamaha Sigma Σ-G5S Pick and Place Machine
The Sigma G5S is equipped with Yamaha unique patented Overdrive System that enables the heads to assemble PCBS simultaneously with no wait time. Overdrive functionality enables both placement heads to pick from each other’s component supply, on either side of the machine, and place on the same board simultaneously and without restriction. Overdrive functionality enables the user to adapt to varying production requirements without reconfiguring the line.
The Sigma G5S’ better ‘Family Setup’ approach slashes changeover time by more than 90%, and Feedback communications with YAMAHA’s YSI-V AOI bring greater efficiency and optimization to the SMT/PCB assembly process. YAMAHA’s SMT surface mounters boast the world’s fastest mounting speeds as well as compatibility with a wide range of electronic components and printed circuit boards (PCBs). Additional PCB assembly equipment, including solder paste printers, dispensers, and inspection systems are also available, making Yamaha a leading supplier of a full lineup of equipment for surface mount assembly technology.
| Model |
Yamaha Sigma Σ-G5S |
| Applicable PCB | Single Lane L610 x W510 to L50 x W50 |
| （Option : L1,200 x W510 to L50 x W50） | |
| Dual Lane L610 x W250 to L50 x W84 | |
| Mounting capability | High-Speed Head : 37,500CPH / Head |
| 75,000CPH / module （2 head type） | |
| Multi-Functional Head : 9,000CPH / Head | |
| Extreme odd-shaped Head : 7,000CPH / Head | |
| Mounting accuracy | High-Speed Head : 03015 to 0603 : ±30μm（3σ）（75,000CPH） |
| (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used) | 03015 to 0603 : ±25μm（3σ）（70,000CPH） |
| Multi-Functional Head : IC : ±15μm（3σ） | |
| Extreme odd-shaped Head : IC : ±15μm（3σ） | |
| Applicable components | High-Speed Head : 03015 CHIP to □44 （T : 12.7） |
| Multi-Functional Head : 1005 CHIP to □72（T : 25.4） | |
| Connectors 100 × 26 | |
| Extreme odd-shaped Head : 1005 CHIP to □72（T : 35.0） | |
| Connectors 150 × 26 | |
| Number of component types | Max. 120 Types （8mm-width Adjustable Tape Feeder*） *Tape Feeder for Σ（Sigma） Series |
| Power supply | 3-Phase AC 200V +/- 20V, 50/60Hz |
| Air supply source | 0.45 to 0.69MPa (4.6 to 7kgf/cm²) |
| External dimension | L 1,280 x D 2,240 x H 1,450 (1 head type : L 1,280 x D 2,290 x H 1,450) |
| Weight | Approx. 1,800 kg (1 head type : Approx. 1,640 kg) (excluding cart) |
