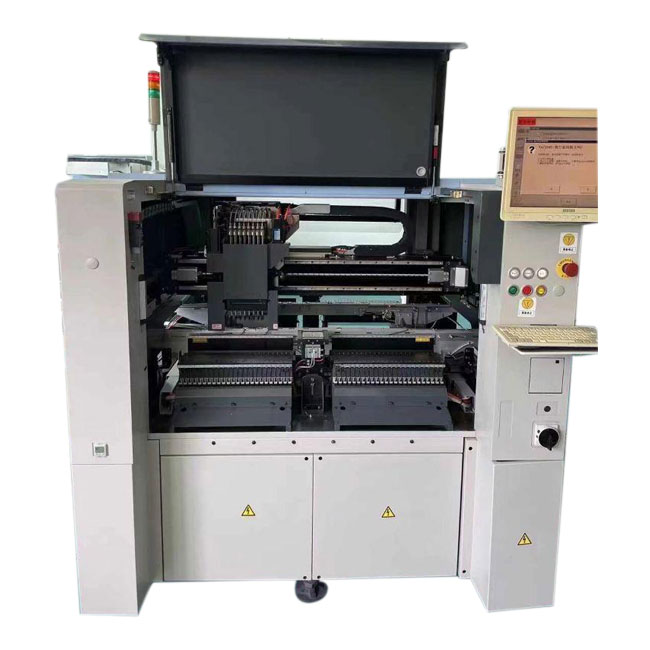

Yamaha YG100RA/YG100RB Pick and place machine
1.May correspond to the 0402 CHIP ~ □ 45mm components, long connectors wide range of components
2.All the time, Mount absolute accuracy of ± 50 μm (CHIP), ± 30μm (QFP)
3.Object element 15mm corresponding height
4.Long size corresponding substrate (~ L510mm)
| Model: | YG100RA(FNC type)/YG100RB(SF type) | |
| Applicable PCB: | L50×W50mm ～L510×W460mm | |
| Mounting efficiency: | 24,000CPH/CHIP (equivalent to 0.15 sec/CHIP) | |
| Mounting | Excellent accuracy(μ+3σ): | ±0.05mm/CHIP, ±0.05mm/QFP |
| accuracy: | Repeatability (3σ): | ±0.03mm/CHIP, ±0.03mm/QFP |
| Components: | 0402mm)~□55mm SOP/SOJ, QFP, connector, PLCC, CSP/BGA, long connector | |
| Object component height: | 15mm or less | |
| Device type: | 96 types (*Large, converted to 8mm tape and reel) | |
| Power supply: | Three-phase AC 200/208/220/240/380/400/416 V ±10% 50/60 Hz | |
| Air supply: | 0.55MPa or more, clean and dry condition | |
| Overall dimensions: | L1,650 x W1,562 (cover end) x H1,470 mm (above cover) L1,650 x W1,615 (end of the rail of the replacement cart) x H1,470mm (above the cover) | |
| Main body weight: | Approx. 1,630kg: (Main body only) | |
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
