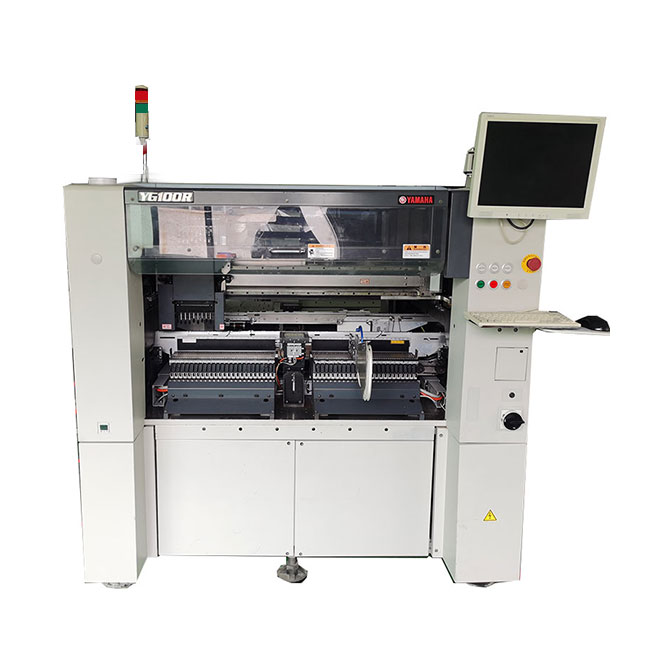

Yamaha YG100R Pick and place machine
Yamaha YG100R high-speed SMT machine
Can mount components: CHIP components, SOP/SOJ, QFP, connectors, PLCC, CSP/BGA, long ~ 0402-31 mm components, connectors (L100mm x W31mm) - > mind vision camera, 0603 - more than 31 type components, 45 mm long connector (L100mm x W45mm) - - more than 45 type vision camera
Substrate size: (limited to the host) : L460 x W440mm (Max) ~ L50 x W50mm (Min)
Substrate thickness/substrate weight: 0.4 mm to 3.0 mm / 3.0 kg
Benchmark/conveyor belt transmission direction: right and left side before (option: from left to right)/(option: the back)
SMT precision: the company internal evaluation by using standard components
Absolute accuracy (mu + 3 sigma) : + / - 0.05 mm/CHIP, plus or minus 0.05 mm/QFP repeat precision (3 sigma) : + / - 0.03 mm/QFP/CHIP, plus or minus 0.03 mm
Mount speed: best conditions 0.15 seconds/CHIP
Varieties of element number: 96 (Max, to 8 mm strip conversion)
Component supply form: strip plate, bulk, rod, tray
Power specifications: three-phase AC 200/208/220/240/220/240/416 v + 10% for 50/60 hz
The average power consumption: 0.72 KW (host) only, attached dYTF: 0.90 KW, attach satz: 0.96 KW, at the same time using satz + dYTF: 0.98 KW
Supply air: more than 0.55 Mpa, the air is clean, dry condition
Oad/host weight: L1, 650 x W1, about 1630 kg / 562 x H1, 562 mm (only host)
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
