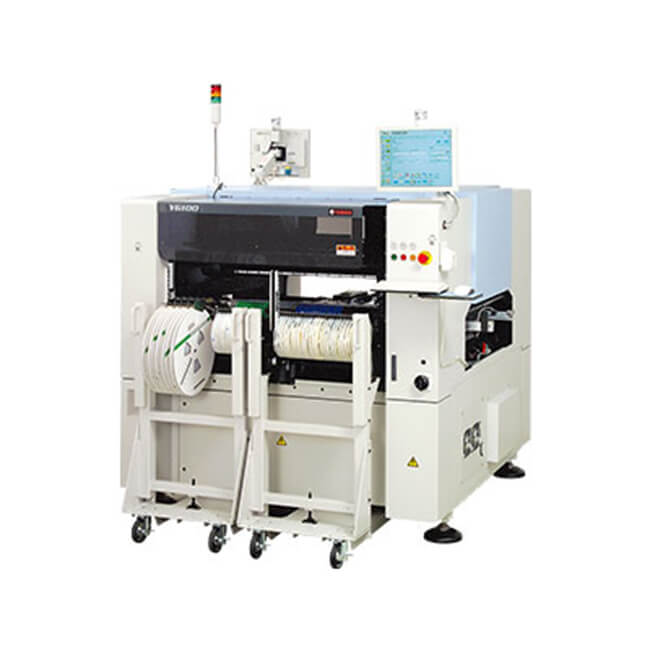

Yamaha YG100 Pick and place machine
1. YAMAHA YG100 is a high-performance, high-precision placement machine produced by YAMAHA specifically for high-speed general purpose machines,it can simultaneously mount different types of special-shaped components.Using YAMAHA's newly designed head structure,all nozzles up and down control are controlled by the electric motor, The machine mounting accuracy is greatly improved compared to the previous memory.
2. YAMAHA YG100 high-speed placement chip, high-precision, high-speed modular placement machine, high rigidity dual drive structure,High-performance servo system, high-resolution digital multi-vision camera, multiple precision correction system.
3. Automatically adjust the transmission width, automatically adjust the height of the mounting surface,belonging to the YG series classic models.The theory is 24,000 points per hour.
4. The actual production speed is about 15,000 points per hour.
|
Model |
YG100 |
|
Board size |
M-Type: L460xW330 ~ L50xW50mm/t = 0.4 ~ 3.0mm |
|
Mounting speed |
0.15 seconds / accessories / 32mm QFP standard: 1.70 seconds / accessories 3) |
|
IPC9850 conditions |
24,000CPH, Chip: 0.15 seconds / accessories |
|
Mounting accuracy |
Chip: ± 0.05mm (3σ) / QFP: ± 0.05mm (3σ) |
|
Supported components |
0402 to SOP, SOJ, 84-pin PLCC, 0.5mm pitch QFPBGA, CSP□31mm, 100mm connector, IC socket. |
|
Equipment Parts Height |
15mm |
|
Operation Software |
YGOS (FullLine Mode, OnLineHelp, rich accessories, and internal organs) |
|
Optimization Software |
Basic Services (Head and Feeder Numbers, Automatically Specified by the Installer) |
|
Power supply |
3-phase AC 416~200V, V± 10%, 50/60Hz, 4.8kVA |
|
Air supply |
5.5kg/ (DryAir)/140/min |
|
Dimension |
1,650(L)x1,562(W)x1,850(H)mm |
|
Weight |
1,630kg |
