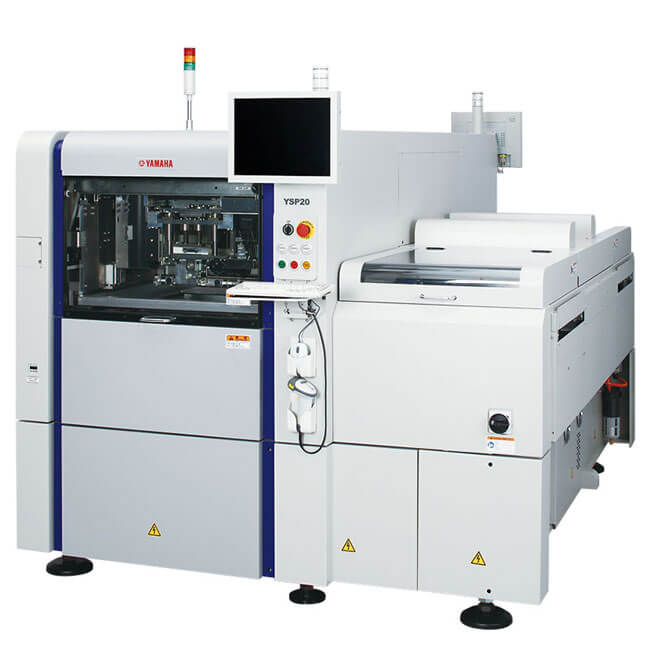

YAMAHA YSP20 Solder paste printer

Applicable PCB:L510 x W460mm to L50 x W50mm
Printing accuracy:Printing accuracy (3σ) : +/- 0.025mm
Applicable stencil size:750 x 750mm, 736 x 736mm
Air supply source:0.45MPa

BASIC INFO

YAMAHA YSP20 Solder paste printer

BUILT-IN HIGH–SPEED & MULTI-FUNCTIONS SURPASS ALL PREVIOUS LIMITS!

Super high-speed printing 5sec/cycle

Positioning repeatability 3σ:+/-0.005mm

Handles large PCBs L510 x W460mm

Large stencils front & rear MAX.750x750mm

Ideal for High-Speed Multi-Function Printing

With dual stage & dual stencil

Printing has a line tact time of approximately 5 seconds. More than doubles the YSP productivity.

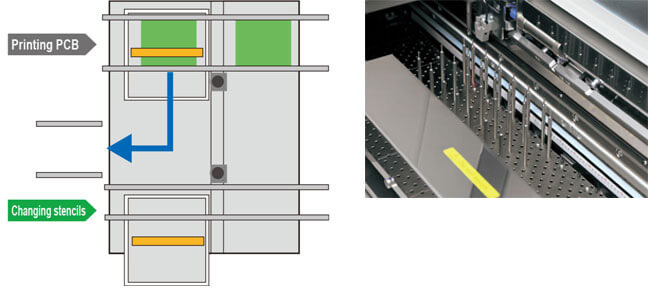

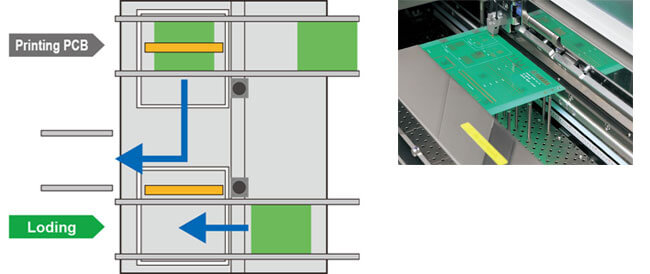

Non-stop setups & changeovers

One side sets the stencil backup while other side prints PCBs.

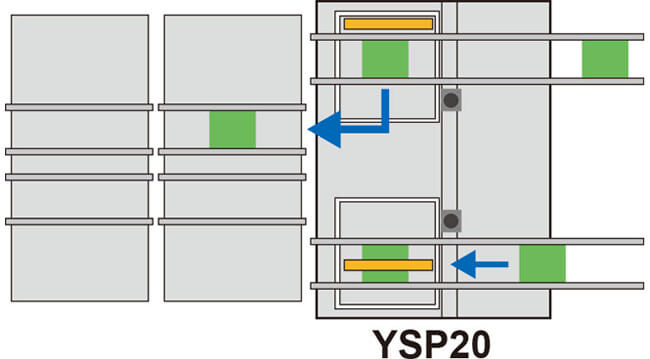

Fully compatible with YAMAHA dual lane system

Internal traverse function handles all dual-lane and single-lane types as a standard feature.

Delivers High-Quality & High-Accuracy Printing

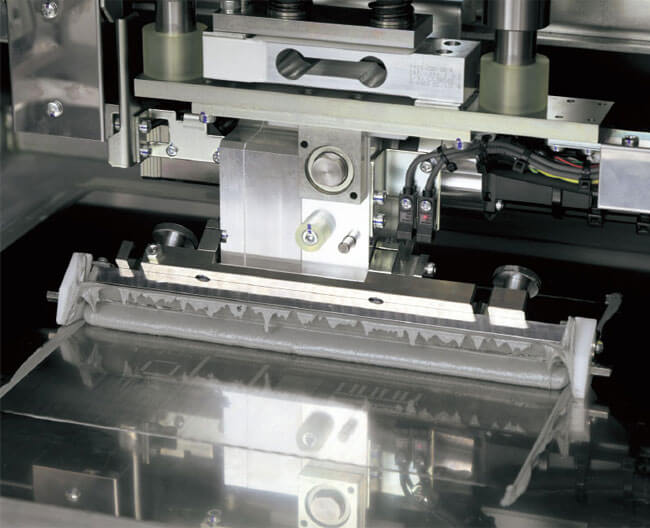

YAMAHA’s original 3S head[3S:Swing Single Squeegee]

Program change squeegee attack angle and speed to an ideal setting to provide optimal printing conditions that match the solder being used.

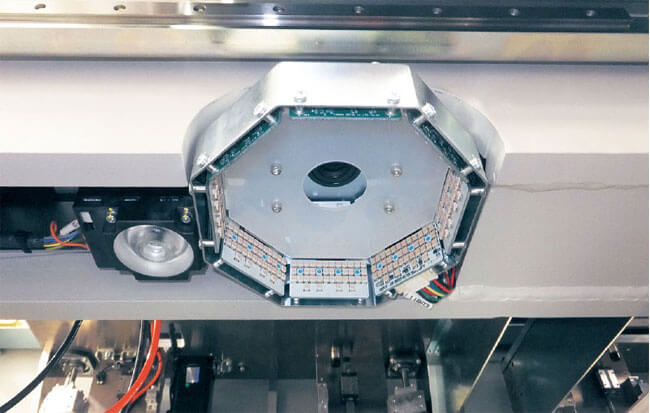

Printing inspection function(option)

Dedicated camera does full main line inspection. Feedback results are used in automated overlay printing and stencil cleaning.

PSC system (option) for stable printing[PSC:Print Stability Control]

This function stabilizes the cream solder rolling radius that affects print quality. The PSC function shortens the setup time and cuts solder loss. PSC is also compatible with non-stop production operation.

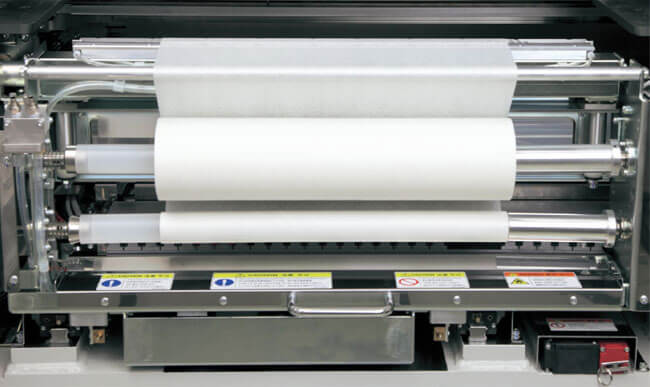

Auto cleaning system

High efficiency cleaning system is a standard feature. New system design makes for quieter operation.

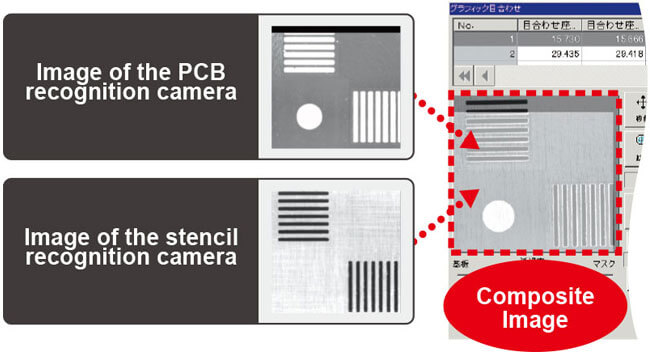

Graphic layer base alignment function

Composite display made from 2 camera images allows easy and precise alignment of PCB and stencil positions.

Handles Large PCB & Stencils

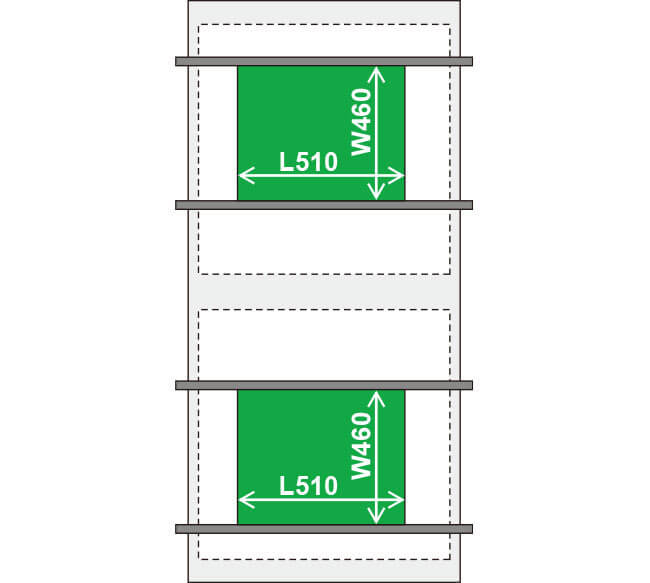

Handles large PCBs

This model is designed to handle larger PCBs up to L510 × W460mm, expanding its capacity to accommodate collective substrates, LCD PCBs and industrial-use PCBs.

Using the YSP20 in combination with distribution conveyor allows processing PCB width up to 460mm at both front and rear stages.

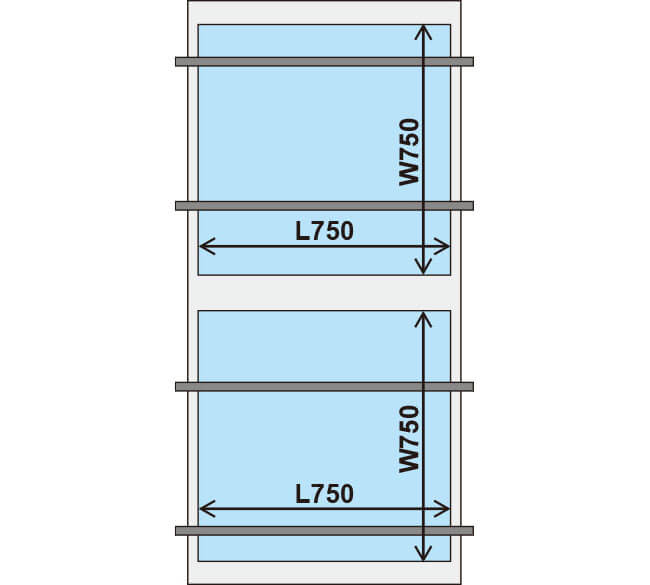

Handles large stencil sizes

Both front and rear stages handle large stencils to a maximum size of L750 × W750mm. 4 types of stencil sizes can easily change by a simple operation.

Superb Operability & Full Range of Options

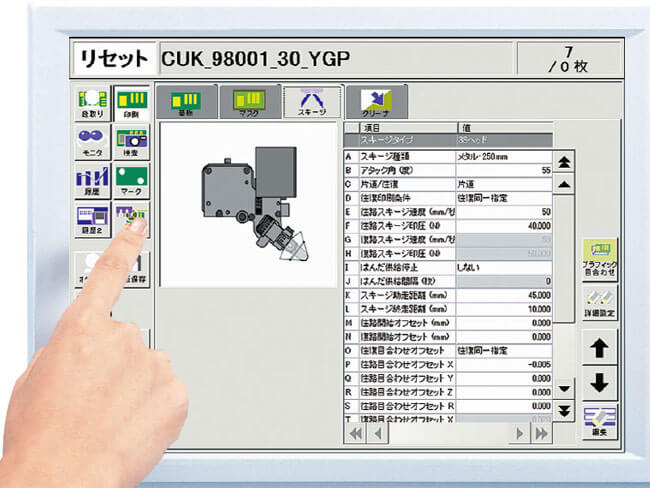

Touch panel

Smooth and simple operation via easy-to-see and easy-to-use interface Displays text in 4 languages: Japanese, English, Chinese, Korean.

Specifications

YSP20
Applicable PCB	L510 x W460mm to L50 x W50mm
Printing head	3S head (3S : Swing Single Squeegee)
Printing accuracy	Printing accuracy (3σ) : +/- 0.025mm
Printing accuracy	Positioning repeatability (3σ) : +/- 0.005mm
Cycle time	Approx. 5 sec (Standard printing : under optimum condition)
Applicable stencil size	750 x 750mm, 736 x 736mm
Applicable stencil size	750 x 650mm, 650 x 550mm
Power supply	3-Phase AC 200/208/220/240/380/400/416V +/- 10%
Air supply source	0.45MPa
External dimension	L1,779 x W2,410 x H1,520mm (excluding projections)
Weigh	Approx. 2,900kg
