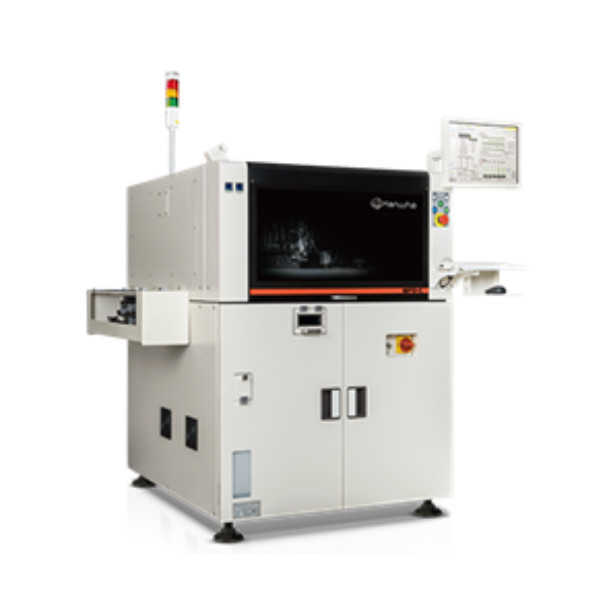

Hanwha CP3-C Solder paste printer
Sp3-Chelps customersexperience the printer of thefuture smart era as well as thebest printing quality
Realizes high-precision printing with alignment accuracy of ±8um
Corrects print offset automatically by feeding back defective SPI printing
port for Mixed Production
Features
Best Quality
Printing Technoy
Allows printing in the direction of both X and Y axes and realizes the best printing quality by applying SQG Blade Tilting Technoy.
2D Inspection
Prevents Defective Printing
Possible to per 2DI of a PCB for insufficient soldering, excessive soldering, and solder bridges as well as foreign materials.
SPI Feedback System
Improves Printing Quality
Corrects the printing offset automatically by feeding back to the machine the data inspected by the SPI machine.
Cleaning Technoy
Improves User Convenience and Cleaning Perance
Improves the user convenience of the Cleaner Module and increases cleaning perance by applying the Solvent Dipping technoy.
Specifications
|
Alignment Repeatability |
±8μm@6σ, Cpk2.0 |
|
|
Wet Print |
±15μm@6σ, Cpk2.0 |
|
|
Cycle Time |
5 sec |
|
|
PCB |
Max. Size (mm) |
L350 x W250 (Single Lane) |
|
L350 x W250 (Dual Lane/Option) ** |
||
|
Min. Size (mm) |
L50 x W50 |
|
|
Thickness (mm) |
0.3 ~ 3.9 |
|
|
Max. Weight (kg) |
1.5 |
|
|
Metal Mask |
Min. Size (mm) |
L550 x W650 |
|
Max. Size (mm) |
L650 x W550, L736 x W736 |
|
|
Frame Thickness (mm) |
30 ~ 40 |
|
|
Matching |
Center Standard |
|
|
Utility |
Power Supply |
100/110/120/200/220/240V (±5 %) Single Phase |
|
Max. 4.5 kVA, 50/60 Hz |
||
|
Air Supply |
Pressure 4.5 ~ 7.0 kgf/cm2, Max. 700 Nℓ/min |
|
|
External Dimension |
W1,376 * x D1,200 x H1,430 mm |
|
|
(Standard) |
||
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
