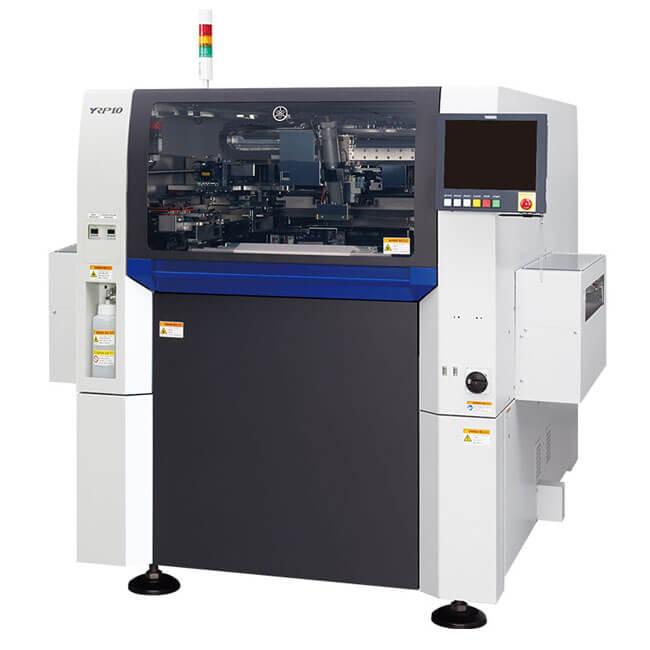

YAMAHA YRP10 Solder paste printer

Applicable PCB：L510 x W510mm to L50 x W50mm
Printing accuracy： ±8 μm
Power supply：Single-phase AC 200 to 230V +/-20V
Air supply source：0.4MPa or more

BASIC INFO

YAMAHA YRP10 Solder paste printer

High-speed、high-quality printer that achieves completes automatic setups and changeovers.

It also supports both single lane and dual lane production.

High-speed printing performance Core cycle time: 6 seconds

Printing accuracy μ±6σ : ±16μm Cpk≧2.0
(Measured using CeTaQ under optimum conditions of YAMAHA)

Completely automated setups and changeovers

Dual lane fully independent production

Delivers both high quality & super-accurate printing!

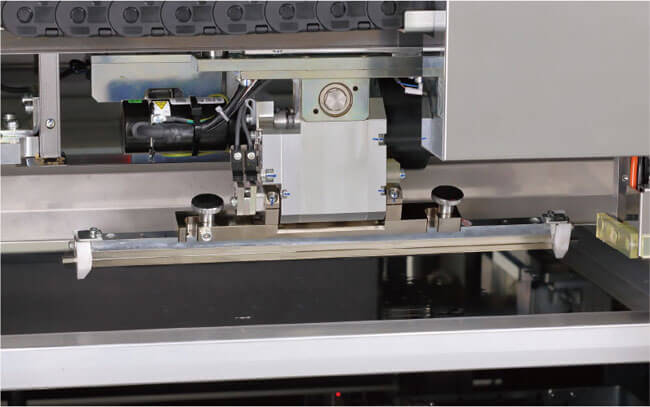

YAMAHA’s original 3S head[3S:Swing Single Squeegee]

Program change squeegee attack angle and speed to an ideal setting to provide optimal printing conditions that match the solder being used.

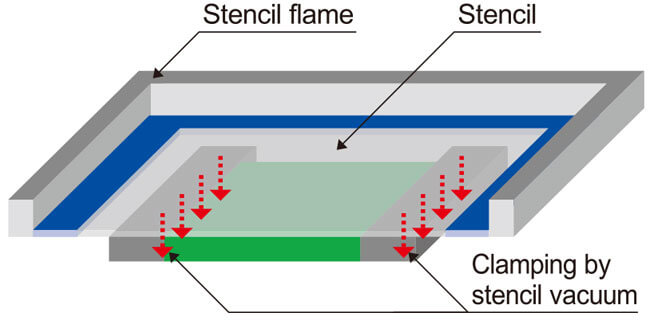

Stencil vacuum

A stencil vacuum mechanism delivers consistent high accuracy printing with no effects from stencil droop. Also drastically cuts the setup time since no offset entry is needed during back and forth printing movement.

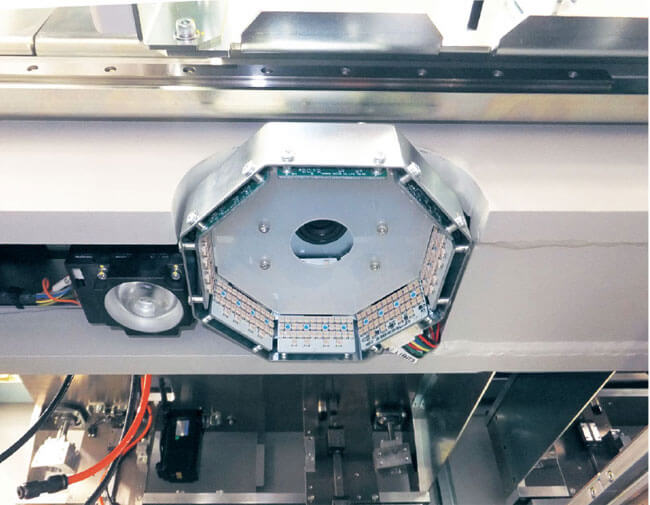

Printer's built-in inspection camera (Option)

Supports full-on pro-level inspections with a dedicated camera. Feedback from inspection results allow over-printing and stencil cleaning.

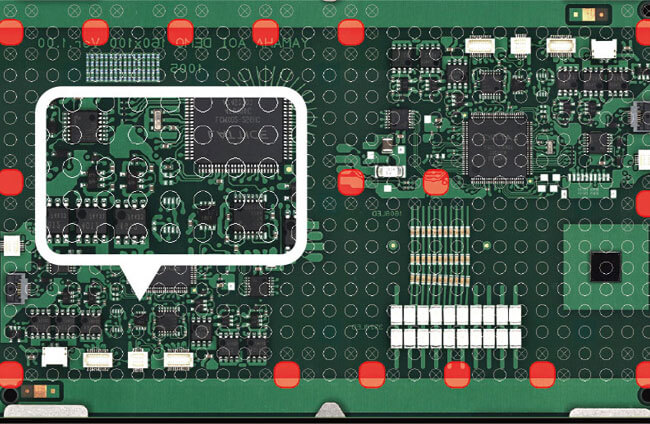

Push-up pins for high-density PCBs (Option)

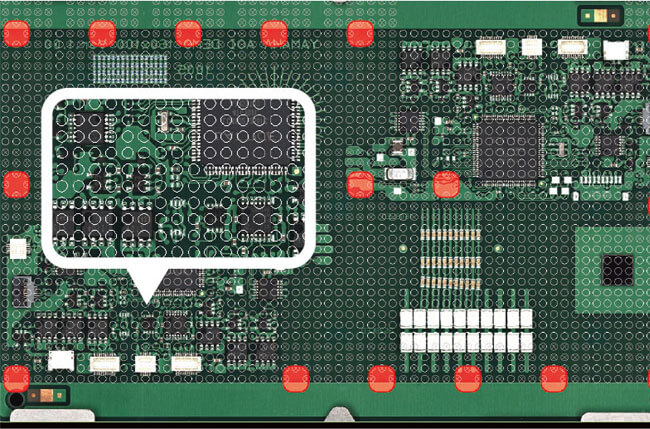

Possible to arrange up to 200 pins. In addition to a 5 mm-pitched matrix plate, a 2.5 mm-pitched matrix plate with a higher degree of arrangement freedom is also available as an option.

5mm pitch specification

2.5mm pitch specification

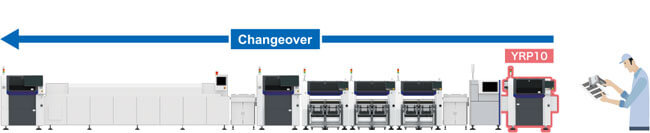

Completely automatic setups and changeovers & prolonged nonstop operation

Ultra-high-efficiency support of a variety of production models

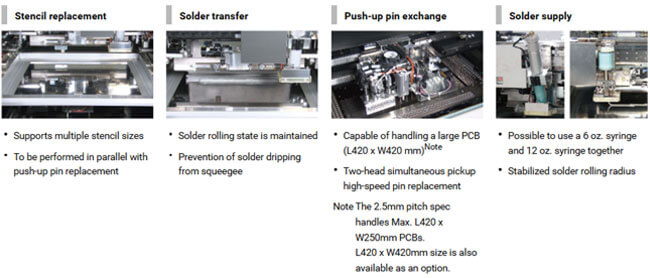

Automatic replacement of the stencil and push-up pins. Through a combination with automatic changeovers in the entire line, man-hours and the number of human errors in model changeover have been drastically reduced. Nonstop solder supply with a 12 oz. syringe achieves prolonged, unmanned, nonstop solder printing.

Dual lane fully independent production

Flexible dual lane

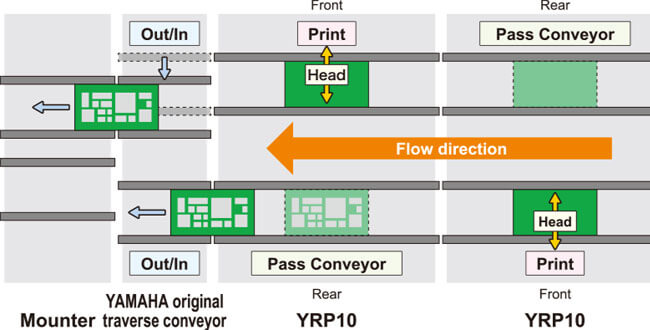

Connecting two YRP10s in series enables a fully independent dual-lane operation. A dual-lane operation and an automatic changeover feature are supported at the same time. Addition of a traverse conveyor flexibly connects the YRP10s to the downstream equipment.

W330 dual lane

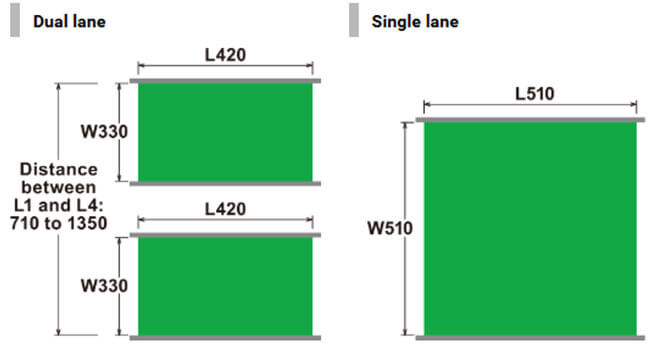

Large PCBs the size of up to L420 × W330 mm can be produced in a dual lane. You can increase the number of PCBs to take and the number of PCBs to be conveyed by the carrier, boosting production efficiency.

M2M link solution

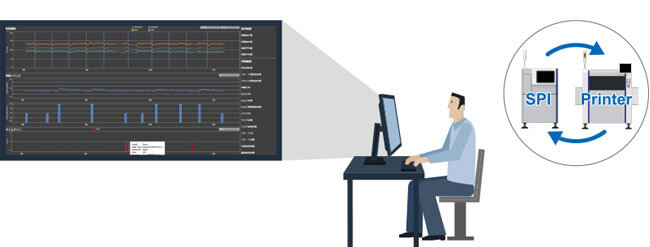

Inspection result feedback

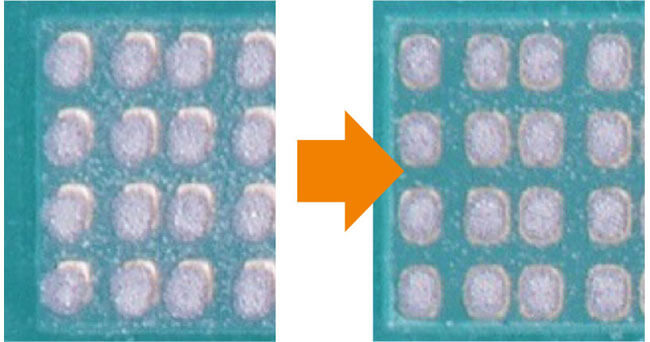

Possible to clean the stencil and correct its position using inspection result feedback via the link with the SPI.

Solder paste printing analysis

Displays link between fluctuations in solder size and solder paste printing status and allows checking the solder paste printer status when defects or problems occur. Streamline quality improvements and line operating rate.

Specifications

YRP10
Applicable PCB	Single lane : L510 x W510mm to L50 x W50mm
Applicable PCB	Dual lane : L420 x W330mm to L50 x W50mm
Printing heads	3S head (3S : Swing Single Squeegee)
Printing accuracy	Positioning repeatdbility (±6σ) : ±8 μm Cp≧2.0
Printing accuracy	Printing accuracy (μ±6σ) : ±16 μm Cpk≧2.0Note
Core cycle time	6sec
(Not include printing)	6sec
Applicable stencil size	L750 x W750mm, L736 x W736mm (29″), L750 x W650mm, L650 x W550mm
Applicable stencil size	L600 x W550mm, L550 x W650mm, L584 x W584mm (23″)
Power supply	Single-phase AC 200 to 230V +/-20V
Air supply source	0.4MPa or more
External dimension	L1,640 x W1,840 x H1,525mm (Single-lane standard specification)
(excluding projections)	L3,560 x W2,300 x H1,525mm (Dual-lane specification)
Weight	Printer : Approx. 1,710kg
Weight	Traverse conveyor : Approx. 450kg
