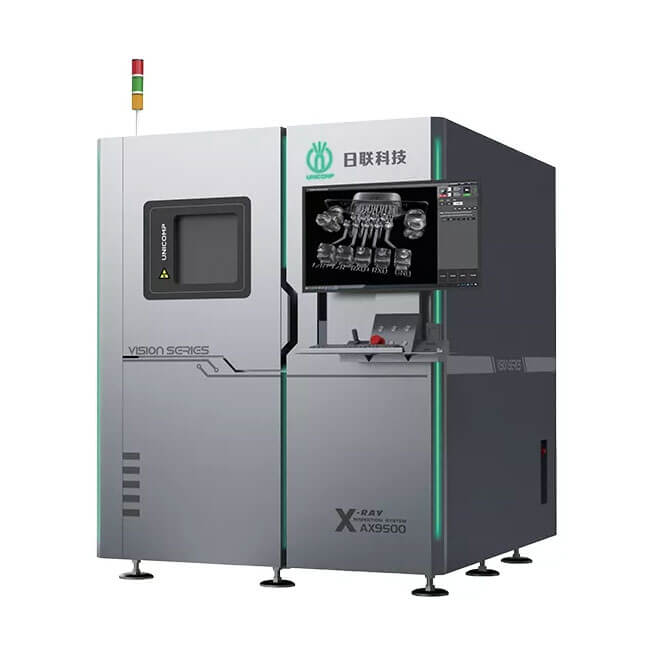

UNICOMP AX9500 CT X-ray Inspection Machine
Fully upgraded new products, can perform CT detection on BGA, CSP, flip chips, LEDs and other semiconductors, can also be used for SMT welding analysis, 3D tomography CT scanning system (planar CT + cone beam CT)
Applications
BGA、CSP、Flip Chip、LED Chip
Soldering Analysis
Automotive Devices, Battery Industry
Aluminum Die Casting, Molding Plastics
Ceramics, Other Dedicate Industries
Function Features
160kV open tube, 1µm focus spot
High resolution with Max detection area FPD
3D CT scanning system（Planar CT + Cone beam CT）
7 axis motion system, 360 degrees inspection
CNC programming with high accuracy and repeatability
High Definition navigation system
Easy tracking function with different angles

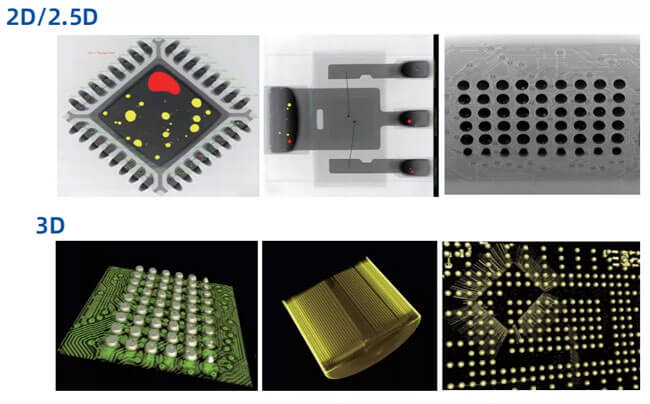

X-Ray images

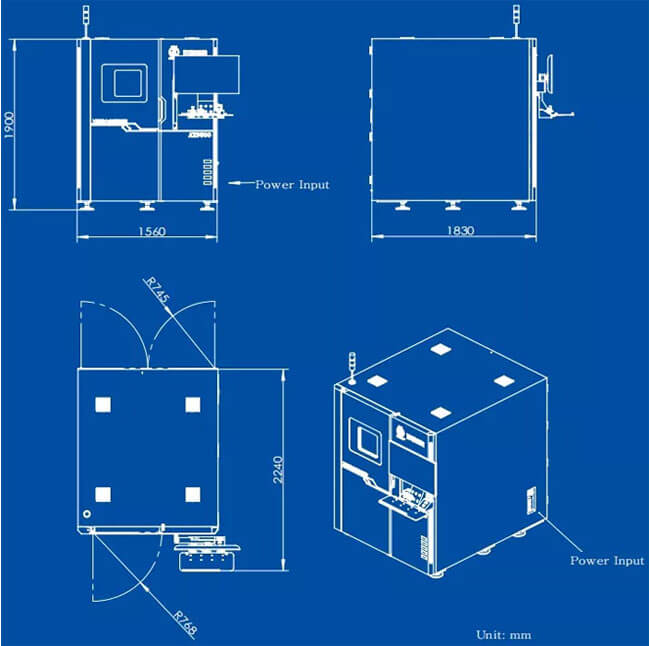

Dimensions and Appearance
|
System Parameters |
|
|
Footprint Size |
1560(W)*1830(D)*1900(H)mm |
|
Machine Weight |
≈3700kg |
|
Max.Tube Power |
64W |
|
Max.Target Power |
15W |
|
Max.Voltage / Current |
160kV/1000μA |
|
X-Ray Leakage |
<0.5μSv/h |
|
Imaging System |
|
|
X-Ray Tube Type |
Open tube |
|
Resolution |
1 μm |
|
Detector |
FPD |
|
System Magnification |
2500X (combined 7500x) |
|
Inspection Capbility |
|
|
Maximum load size (2D/2.5D) |
580(X)mm×610(Y)mm |
|
Maximum Inspection Size(2D/2.5D) |
540(X)mm×570(Y)mm |
|
Maximum Load Size (CT): |
Planer CT: 470(X)mm×500(Y)mm |
|
Core-beam CT: 100(X)mmx200(Y)mm |
|
|
3D Imaging Time |
45s |
|
Maximum Sample Weight |
10kg（Planer CT） |
|
0.5kg（Cone-beam CT) |
|
|
System Parameters |
|
|
Footprint Size |
1560(W)*1830(D)*1900(H)mm |
|
Machine Weight |
≈3700kg |
|
Max.Tube Power |
64W |
|
Max.Target Power |
15W |
|
Max.Voltage / Current |
160kV/1000μA |
|
X-Ray Leakage |
<0.5μSv/h |
|
Imaging System |
|
|
X-Ray Tube Type |
Open tube |
|
Resolution |
1 μm |
|
Detector |
FPD |
|
System Magnification |
2500X (combined 7500x) |
|
Inspection Capbility |
|
|
Maximum load size (2D/2.5D) |
580(X)mm×610(Y)mm |
|
Maximum Inspection Size(2D/2.5D) |
540(X)mm×570(Y)mm |
|
Maximum Load Size (CT): |
Planer CT: 470(X)mm×500(Y)mm |
|
Core-beam CT: 100(X)mmx200(Y)mm |
|
|
3D Imaging Time |
45s |
|
Maximum Sample Weight |
10kg（Planer CT） |
|
0.5kg（Cone-beam CT) |
|
|
System Parameters |
|
|
Footprint Size |
1560(W)*1830(D)*1900(H)mm |
|
Machine Weight |
≈3700kg |
