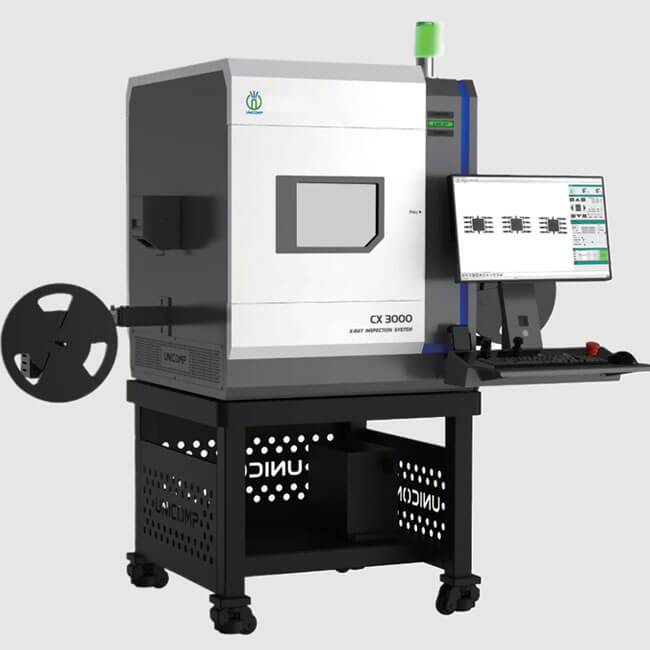

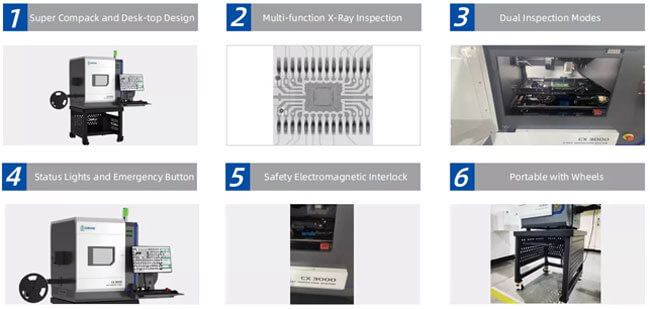

System Summary

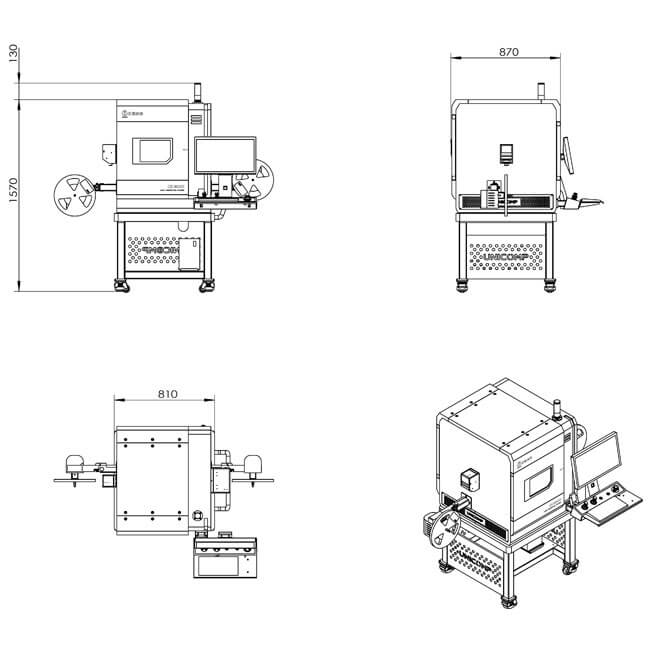

Footprint

800(L)×870(W)×1550(H)mm

Machine Weight

600 kg

Power Supply

AC 110/220V, 50/60Hz

Plywood Packing Size

1650(W)×1300(D)×2050(H)mm

Packing Weight

880kg (include desk)

Power Consumption

1.0 kW

X-Ray Tube

Tube Type

Sealed

Max. Power

8W

Voltage

0~90kV (Adjustable)

Focus Spot Size

5μm

Imaging Detector

Detector

Flat Panel Detector (FPD)

Pixel Size

84μm

Effective Detection   Area

130*130mm

Frame Rates

20fps

Pixel Matrix

1536*1536

System Magnification

200X

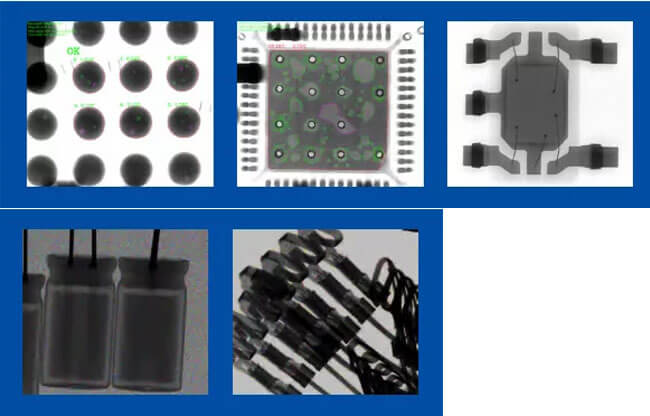

Software

Auto-measuring

Internal defects of electronic components, PCBA welding quality Auto-measuring and Support Data/Graphic Output

Multiple Measuring   Tools

Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc.

Real-time Display

Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc

Navigation

Navigation in Visual Windows

User Friendly

Automatic conveying of reel to reel components, Easy Operation and User Friendly

Motion Control System

Movement Control

Keypad & Mouse

Max. Loading   Area/Weight

300*350mm / 5kg

Max. Inspection Area

255*330mm

Manipulator

3-axis with X / Y / Z

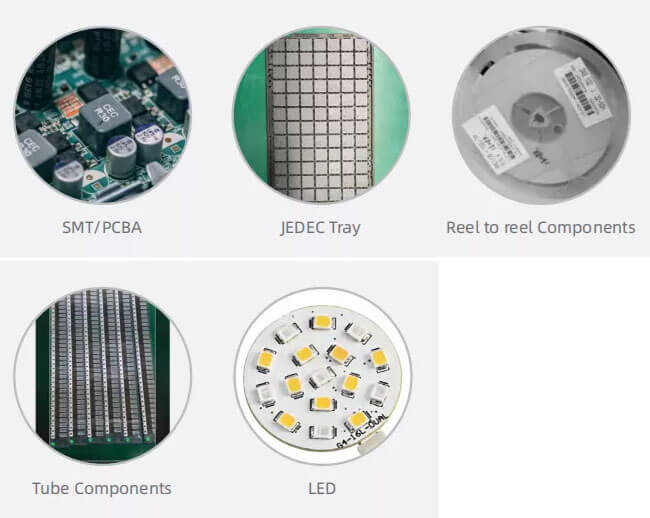

Accessory

Reel to Reel（Standard:22mm tape, Option: 44mm）

Industrial PC

Monitor

22’’ FHD LCD Display

System OS

Windows 10 64bit

Hard disk

1TB

RAM

8GB

CPU model

Intel i7 Processor

Other Features

Energy Saving

X-Ray Auto-off when it's out of work over than 5 minutes

Safety Operation

Electromagnetic Interlock and warning Light

Authority Management

Fingerprint Access Management System,  and Support Password Accessing

X-Ray Safety

<1μSv/h (Meets All International Standards)

Work Desk

Included
