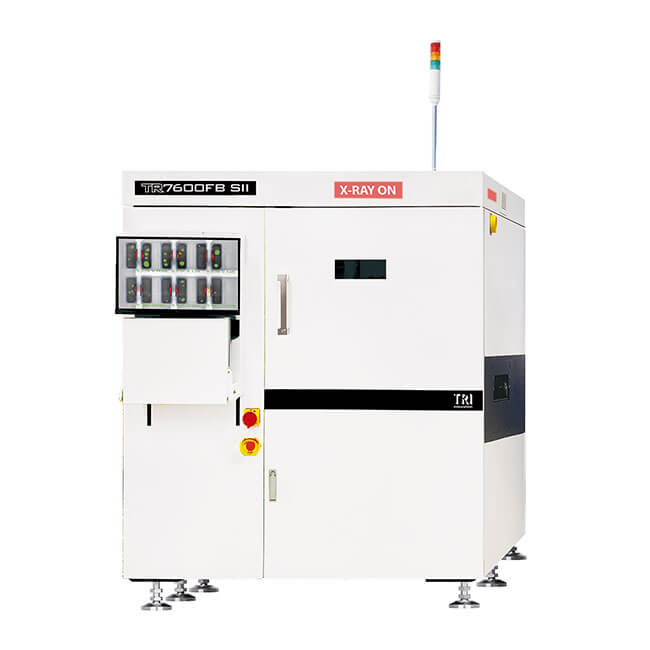

TRI TR7600FB SII X-ray Inspection Machine
The TR7600FB SII is the Next Generation AXI with a new X-ray Imaging Structure Design for Clearer images. The Smart 3D AXI is powered by AI-Inspection Algorithms, AI-Void Detection, and Programming. The AXI solution can inspect large boards, up to 850 mm x 520 mm and up to 12kg in weight. The TR7600FB SII lowers the escapes and false calls without compromising the production line's cycle time.
Features
• New X-ray Imaging Structure Design for Clearer Images
• AI Inspection Algorithms, AI-Void Detection, and Programming
• 5 µm High Precision for Comprehensive Defect Detection
• Next Generation Mechanical Design for Higher Speed up to 20 FOV/s
• Inline fine-tuning for multiple samples without interrupting production
• Large Board Inspection, up to 850 mm x 520 mm, up to 12 kg in weight
• Smart Factory Ready with Easy MES Connectivity
• Applications: Aerospace, Advanced Packaging, Automotive, Data Center, IIOT, Medical and Mobile Devices.
• Communication Standard: SMEMA, SECS/GEM, IPC-CFX-2591, IPC-HERMES-9852
Specification
Camera
Flat Panel Detector
X-ray Source
40 -130 kV
Imaging Resolution
5 μm - 30 μm
Inspection Method
2D, 2.5D, 3D Slicing, Planar CT (Optional)
Motion Table & Control
X-Axis Control
High-precision ballscrew + AC-servo controller
Y-Axis Control
High-precision ballscrew + AC-servo controller
Z-Axis Control
High-precision ballscrew + AC-servo controller
X-Y Axis Resolution
N/A
Board Handling
Max PCB Size
850 x 520 mm
PCB Thickness
0.4 - 7 mm
Max PCB Weight
12 kg
Top Clearance
@ 30 μm: 60 mm
@ 25 μm: 80 mm
@ 20 μm: 90 mm
@ 15 μm: 90 mm
@ 10 μm: 90 mm
@ 5 μm: 90 mm
Bottom Clearance
@ 30 μm: 50 mm
@ 25 μm: 50 mm
@ 20 μm: 50 mm
@ 15 μm: 40 mm
@ 10 μm: 20 mm
@ 5 μm: 10 mm
Edge Clearance
3 mm or 5 mm
Conveyor Height
880 - 920 mm. Optional: 940 - 965 mm
Inspection Functions
Capabilities
BGAs, Backdrill, Barrel fill, Capacitors, Resistor, Chips, Components Under RF shields, WLCSP, DIMM Connectors, Flip-Chips, Ground Pads, Gullwing, Heat sinks, J-Leads , LED Chips, LGAs, Paladin Connector, RNET, SiP, SMT Connectors, SOIC, SOT, Thermal Pad, QFNs, QFP and THTs
Defects
Missing, Misalignment, Tombstone, Billboard, Tantalum Polarity, Rotation, Foreign Material, Insufficient/Excess Solder, Bridging, Open, Solder Ball, Non-Wetting, Void and Lifted Lead
Dimensions
WxDxH
1550 x 22400 x 1800 mm
* not including signal tower, height: 519.5 mm
Weight
3770 kg
Power Requirement
200 – 240 VAC, Single Phase, 50 / 60 Hz, 4 kVA
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
