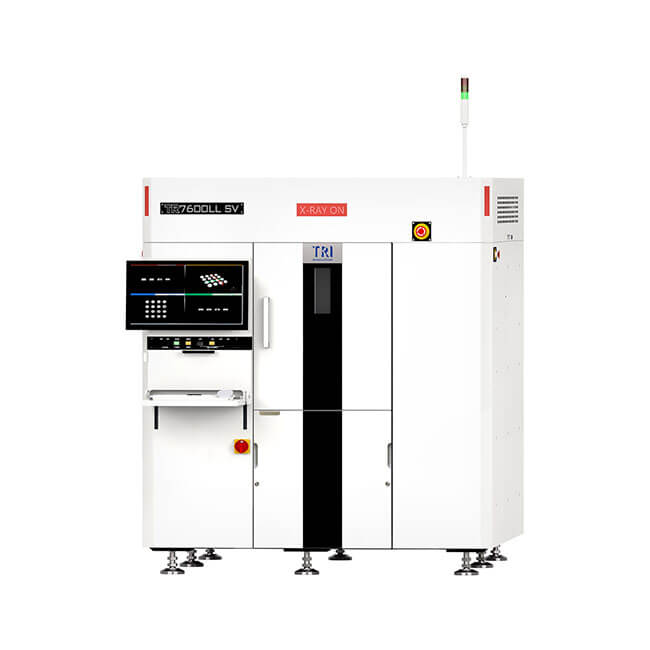

TRI TR7600LL SV X-ray Inspection Machine
The TR7600 SV series is the newly released line scan 3D AXI, with up to 20% performance improvement compared to the award-winning TR7600 SIII series. Powered by AI Algorithms, the high-speed 3D AXI can precisely detect Void defects. With 7 µm high-resolution, the TR7600 SV series delivers a high yield rate inspection.
The robust platform is capable of fast image reconstruction and defect detection in BGAs, Barrel fill, Capacitors, Chips, Components Under RF shields, CSPs, DIMM Connectors, Flip-Chips, Ground Pads, Gullwing, Heat sinks, J-Leads , LED Chips, LGAs, Paladin Connector, Resistor, RNET, SiP, SMT Connectors, SOIC, SOT, Thermal Pad, QFNs, QFP and THTs.
Features
• 7 µm High Performance Inspection, 20% Performance Improvement compared to previous model
• New motion controller, EtherCAT, for real-time measurements and ease of maintenance
• AI-Powered Inspection algorithms for precise defect detection
• Smart Factory Ready for Easy MES Connectivity
• Worldwide Technical Support Services
Specification
|
Camera |
Ultra-High Speed Line-Scan CCD 3 or 5 Units (9 or 15 Sensors) |
|
X-ray Source |
60 -130 kV |
|
Imaging Resolution |
7 μm - 25 μm |
|
Inspection Method |
2D, 2.5D, 3D Slicing, Planar CT (Optional) |
|
Motion Table & Control |
|
|
X-Axis Control |
Linear Servo Motor with Motion Controller |
|
Y-Axis Control |
High-Precision Ballscrew + AC-Servo Controller |
|
Z-Axis Control |
High-Precision Ballscrew + AC-Servo Controller |
|
X-Y Axis Resolution |
N/A |
|
Board Handling |
|
|
Max PCB Size |
1000 x 660 mm |
|
PCB Thickness |
0.4 - 7 mm |
|
Max PCB Weight |
12 kg |
|
Top Clearance |
@ 25 μm: 50 mm |
|
@ 20 μm: 50 mm |
|
|
@ 15 μm: 30 mm |
|
|
@ 10 μm: 15 mm |
|
|
@ 7 μm: 7 mm |
|
|
Bottom Clearance |
@ 25 μm: 55 mm |
|
@ 7 /10 / 15 / 20 μm: 70 mm |
|
|
Edge Clearance |
3 mm or 5 mm |
|
Conveyor Height |
880 - 920 mm. Optional: 940 - 965 mm |
|
Inspection Functions |
|
|
Capabilities |
Missing |
|
Misalignment |
|
|
Tombstone |
|
|
Billboard |
|
|
Tantalum Polarity |
|
|
Rotation |
|
|
Floating |
|
|
Defects |
Insufficient/Excess Solder |
|
Bridging |
|
|
Open |
|
|
Solder Ball |
|
|
Non-wetting |
|
|
Void |
