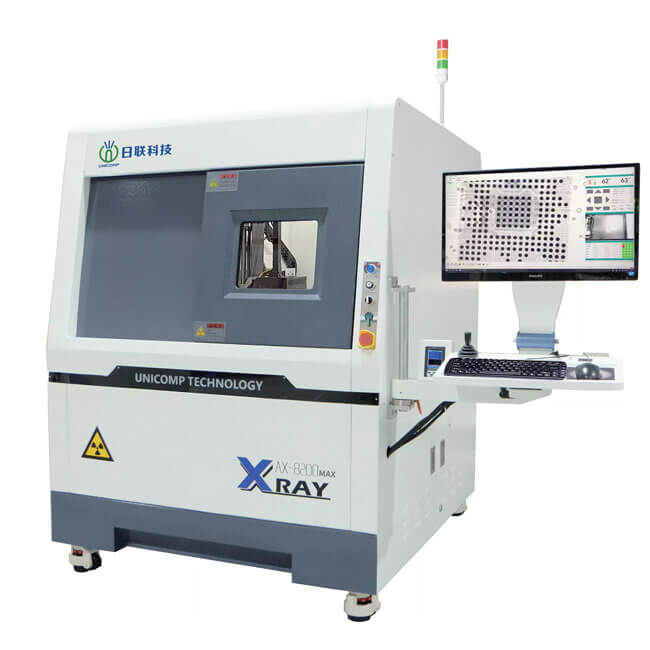

UNICOMP AX8200MAX X-ray Inspection Machine
Widely applied for BGA , CSP , Flip Chip, LED , Fuse,Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Photovoltaic Industry, etc.
Application Fields
Functions and Feature

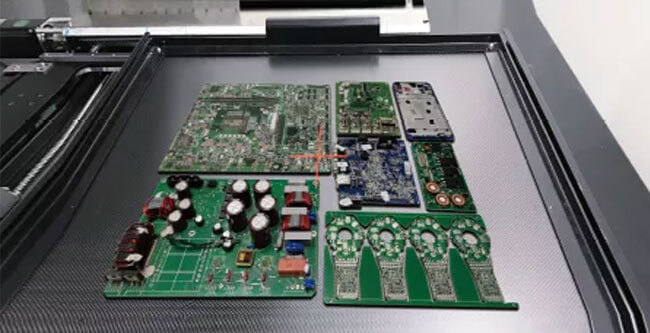

1. Large Size Inspection Table, Laser Locator for Precise Location

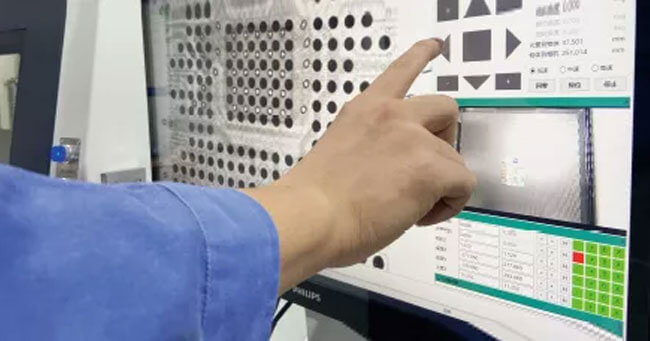

2. 24'' FHD Interactive Touch LCD Display
3. Accurate Control, CNC Programming, Automatic Positioning

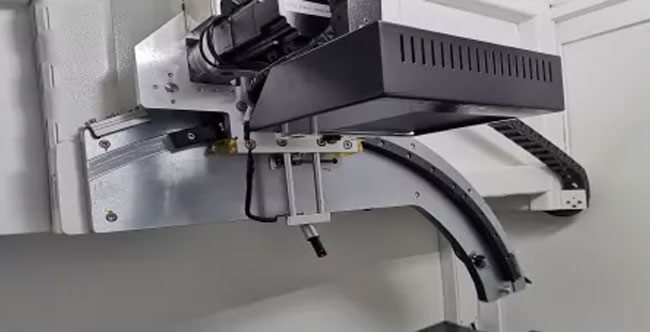

4. FPD 60° Tilting Inspection

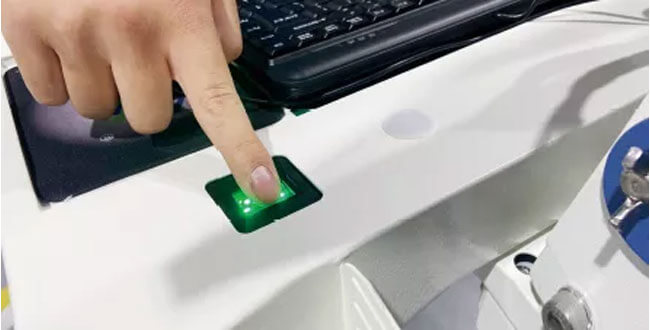

5. Fingerprint Access Management System Real-time Monitoring of Radiation

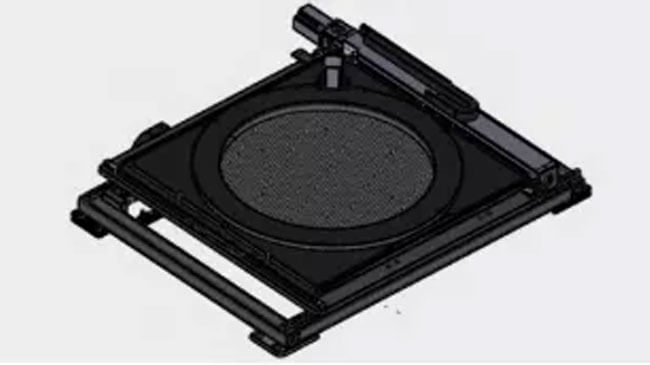

6. Option 360° Rotation Table

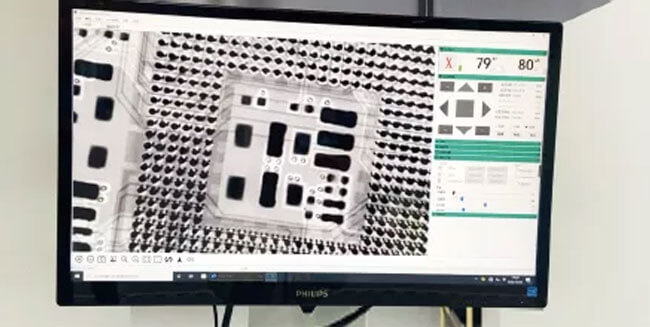

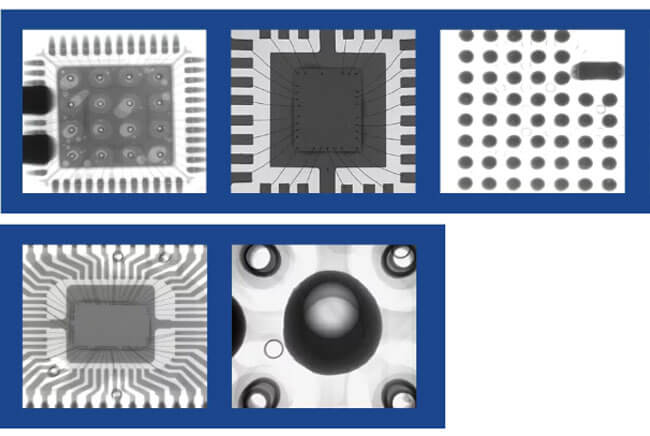

Inspection Image
|
System Summary |
|
|
Footprint |
1280(W)×1500(D)×1704(H)mm |
|
Machine Weight |
1450 kg |
|
Power Supply |
AC 110/220V, 50/60Hz |
|
Plywood Packing Size |
1750(W)×1920(D)×2000(H)mm |
|
Packing Weight |
1620 kg |
|
Power Consumption |
1.5 kW |
|
X-Ray Tube |
|
|
Tube Type |
Sealed |
|
Max. Power |
8W |
|
Voltage |
0~90kV (Adjustable) |
|
Focus Spot Size |
5μm |
|
Imaging System |
|
|
Detector |
Flat Panel Detector (FPD) |
|
Pixel Size |
84μm |
|
Effective Detection Area |
129*129mm |
|
Frame Rates |
30fps |
|
Pixel Matrix |
1536*1536 |
|
System Magnification |
600X |
|
Software |
|
|
Auto-measuring |
BGA Soldering Voids Auto-measuring and Support Data/Graphic Output |
|
Multiple Measuring Tools |
Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc. |
|
CNC Mode |
CNC Programmable Inspection, Easy Operation and User Friendly |
|
Real-time Display |
Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc |
|
Navigation |
Convenient Target Point Positioning System |
|
Motion Control System |
|
|
Movement Control |
Joystick, Keypad, Mouse &Touch Panel |
|
Max. Loading Area/Weight |
610*610mm / 10kg |
|
Max. Inspection Area |
ф550*550mm |
|
Manipulator |
6-axis with X / Y / Z1 / Z2 / T1 / T2 |
|
Industrial PC |
|
|
Monitor |
24’’ FHD Interactive Touch LCD Display |
|
System OS |
Windows 10 64bit |
|
Hard disk |
1TB |
|
RAM |
16GB |
|
CPU model |
Intel i7 Processor |
|
Other Features |
|
|
Door Open |
Electric Sliding |
|
X-Ray Safety |
<1μSv/h (Meets All International Standards) |
|
Authority Management |
Fingerprint Access Magnagement System, and Support Password Accessing. |
|
Safety Operation |
Electromagnetic Interlock, Warning Light and Real-time Radioation Leakage Monitor |
