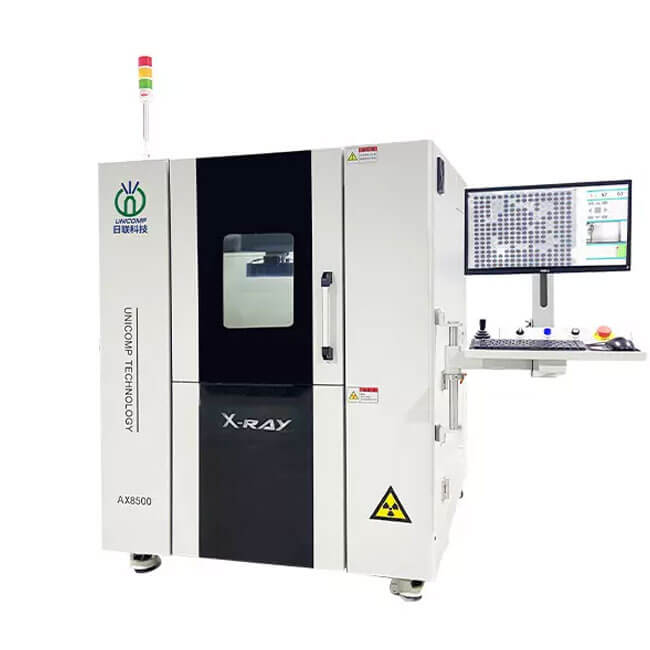

UNICOMP AX8500 X-ray Inspection Machine
Widely applied for BGA , CSP , Flip Chip, LED , Fuse,Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Photovoltaic Industry, etc.
Application Fields

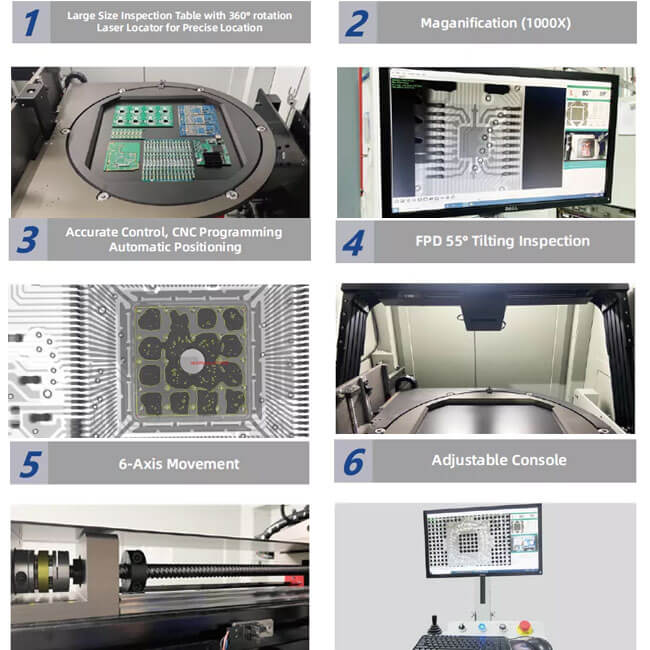

Functions and Feature

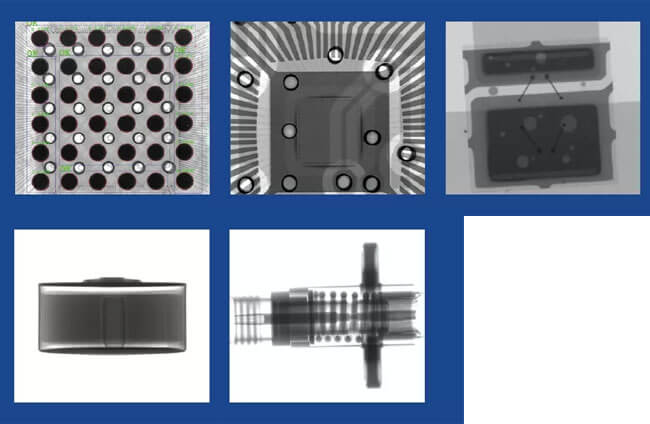

Inspection Images

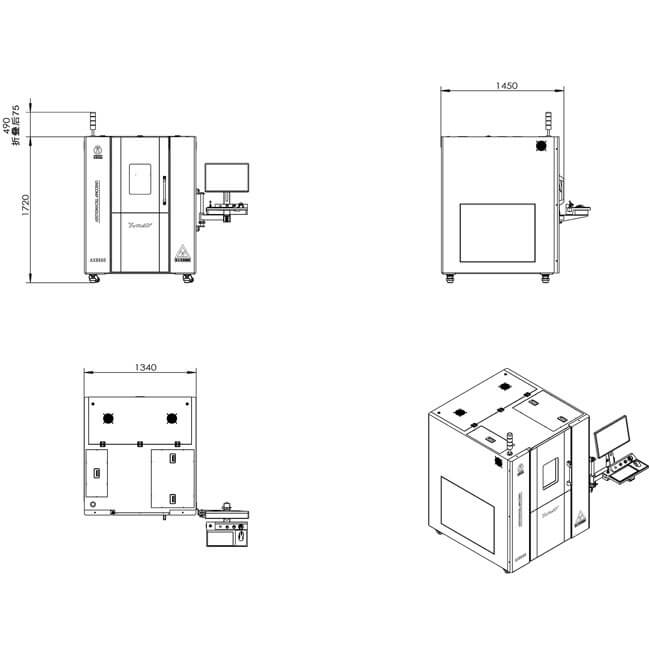

Dimensions and Appearance
|
System Summary |
|
|
Footprint |
1340(W)×1450(D)×1795(H)mm |
|
Machine Weight |
1700 kg |
|
Power Supply |
AC 110~220V, 50/60Hz |
|
Plywood Packing Size |
1600(W)×1600(D)×2000(H)mm |
|
Packing Weight |
1920 kg |
|
Power Consumption |
1.5kW |
|
X-Ray Tube |
|
|
Tube Type |
Sealed |
|
Max. Power |
25W |
|
Voltage |
0~110kV (Adjustable) |
|
Focus Spot Size |
5μm |
|
Imaging System |
|
|
Detector |
Flat Panel Detector (FPD) |
|
Pixel Size |
84μm |
|
Effective Detection Area |
129*129mm |
|
Frame Rates |
20fps |
|
Pixel Matrix |
1536*1536 |
|
System Magnification |
1000X |
|
Software |
|
|
Auto-measuring |
BGA Soldering Voids Auto-measuring and Support Data/Graphic Output |
|
Multiple Measuring Tools |
Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc. |
|
CNC Mode |
CNC Programmable Inspection, Easy Operation and User Friendly |
|
Real-time Display |
Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc |
|
Navigation |
Convenient Target Point Positioning System |
|
Motion Control System |
|
|
Movement Control |
Joystick, Keypad & Mouse |
|
Max. Loading Area/Weight |
Ф570mm / 10kg |
|
Max. Inspection Area |
450*450mm |
|
Oblique Views |
Max. 55° Filting (FPD) / 360° Rotation (Table) |
|
Manipulator |
6-axis with X1 / X2 / Y / Z1 / T (55°) /R (360°) |
|
Industrial PC |
|
|
Monitor |
21.5’’ FHD LCD Display |
|
System OS |
Windows 10 64bit |
|
Hard disk |
1TB |
|
RAM |
8GB |
|
CPU model |
Intel i7 Processor |
|
Other Features |
|
|
Energy Saving |
X-Ray Auto-off when it's out of work over than 5 minutes |
|
Safety Operation |
Electromagnetic Interlock and warning Light |
|
Authority Management |
Password Management |
|
X-Ray Safety |
<1μSv/h (Meets All International Standards) |
|
* Specifications are subject to change without notice, All trademarks are the property of the system maker. |
|
