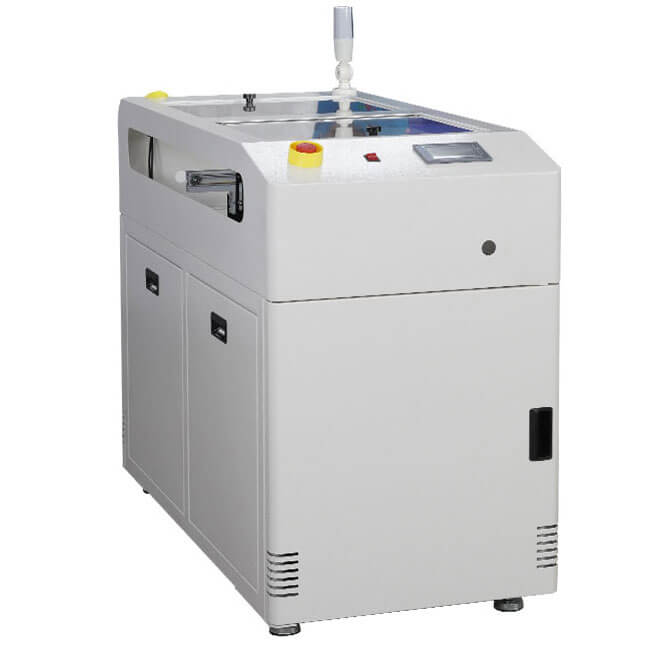

Translation Shuttle PCB Conveyor
1.Adopt Panasonic PLC, imported square photoelectric, LEF intermediate relay control system, stable and reliable.
2.Touch screen display operation, with fault sound and light alarm, automatic diagnosis function.
3.Stepper motor control, adjustable speed and distance
4.Closed design guarantees the highest level of safety.
5.The top safety cover can be opened for easy handing of the machine hardware during maintenance.
6.Imported with steel belt drive for precise positioning and durability.
7.Easy to use touch screen function control interface.
8.A variety of work modes can be selected.
9.Robust and balanced width adjustment (automatic ball screw adjustment)
10.The transfer distance can be set arbitrarily.
11.Automatic calculation of transfer distance by inputting PCB width.
12.Compatible SMEMA interface.
Specifcation
SMT Cleaning Machine, SMT PCB Loader Machine, SMT NG Buffer Machine, PCB Conveyor, PCB Laser Marking Machine, SMT Automatic Shearing Machine, PCB hanging basket car, BGA Rework Station, SMT Unloader Machine, DIP plugin line conveyor
Keyword
Model
SD-8300
Dimension
600*1280*1050mm
600*custom size*1050mm
600*1750*900mm
PCB Board Size
50*50-500*300mm
50*50-500*300mm
50*50-535*390mm
Weight
250KG
-
300KG
Mobile Trolley
Single car
Customized multiple cars
Single car
Power Supply
Single phase AC220V 50/60Hz
Power
300W
Fixed Edge
Front fixed(depending on the whole body)
Transfer Height
900卤20mm
Transfer Direction
Left to right(optional right to left)
Operating Mode
Two in one and one in two( can customize multiple working modes)
Use Environment
Non-corrosive gas and dust environment
Anti-interference
Voltage noise: 1000Vp-p, wave width 1us, time 1 minute
Linear Guides
Taiwan silver straight slide (durable and wearable)
