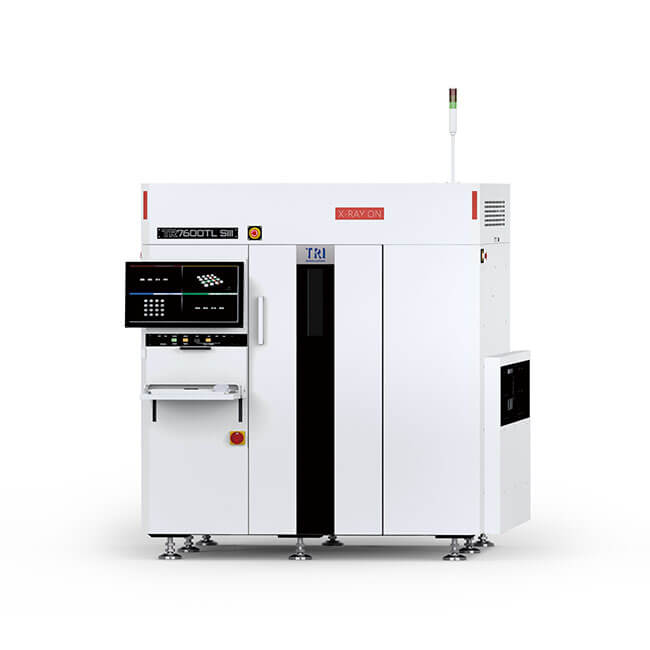

TRI TR7600TL SIII SMT X-ray Inspection Machine
The new TR7600TL SIII line scanning 3D AXI is specially designed for inspecting large-size circuit boards (up to 1200mm x 660mm) and has exclusive CT functions. The TR7600TLSIII series platform delivers outstanding speed and performance without sacrificing imaging resolution.
Features
• Ultra-high-speed 3D CT X-ray inspection
• Superior resolution inspection of extra-large size circuit boards
• Intelligent programming with complete algorithms
Specification
|
Camera |
Ultra-High Speed Line-Scan CCD Cameras (3 or 5 Units) |
|
X-ray Source |
Microfocus tube 130 kV max (user adjustable) |
|
Imaging Resolution |
10 μm, 15 μm, 20 μm, 25 μm (user selectable) |
|
Inspection Method |
2D, 2.5D, 3D Slicing, Planar CT (optional) |
|
Motion Table & Control |
|
|
X-Axis Control |
High-precision ballscrew + AC-servo controller |
|
Y-Axis Control |
High-precision ballscrew + AC-servo controller |
|
Z-Axis Control |
High-precision ballscrew + AC-servo controller |
|
XY Axis Resolution |
N/A |
|
Board Handling |
|
|
Max PCB Size |
Standard: 610 x 660 mm |
|
2 Stages: 1200 x 660 mm |
|
|
PCB Thickness |
0.6-7 mm |
|
Max PCB Weight |
12kg |
|
Top Clearance |
@ 25 μm: 50 mm |
|
@ 20 μm: 50 mm |
|
|
@ 15 μm: 30 mm |
|
|
@ 10 μm*: 15 mm |
|
|
|
|
|
* For confirming the specific technical requirements, please contact TRI's sales representative |
|
|
Bottom Clearance |
@ 25 μm: 55 mm |
|
@ 20 μm: 70 mm |
|
|
@ 15 μm: 70 mm |
|
|
@ 10 μm: 70 mm |
|
|
Edge Clearance |
3 mm or 5 mm |
|
Conveyor Height |
880 - 920 mm |
|
|
|
|
* SMEMA Compatible |
|
|
Inspection Functions |
|
|
Capabilities |
Missing |
|
Misalignment |
|
|
Tombstone |
|
|
Billboard |
|
|
Tantalum Polarity |
|
|
Rotation |
|
|
Floating |
|
|
Defects |
Insufficient/Excess Solder |
|
Bridging |
|
|
Open |
|
|
Solder Ball |
|
|
Non-wetting |
|
|
Void |
|
|
Lifted Lead |
|
|
Dimensions |
|
|
wxya |
2014 x 2000 x 1940 mm |
|
|
|
|
Note: not including signal tower, height: 510 mm |
|
|
Weight |
4750kg |
|
Power Requirement |
200 – 240 VAC, Three Phase, 50 / 60 Hz, 7 kVA. Optional: 346 – 416 VAC Three Phase Transformer |
