TRI TR7600LL SIII SMT X-ray Inspection Machine

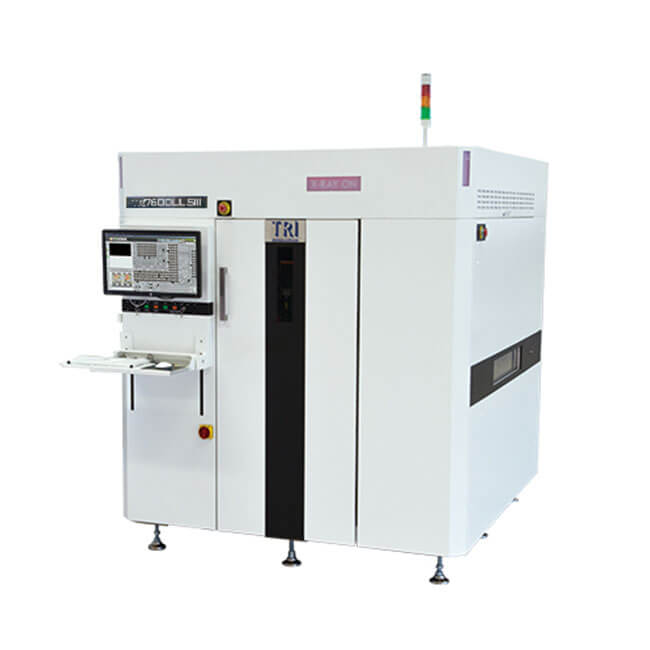

The TR7600LL SIII CT AXI series is TRI's new generation of iconic online PCBA inspection solutions. Designed to provide 100% inspection coverage for ultra-large circuit boards, the TR7600LL SIII has the industry's fastest high-resolution imaging performance and provides superior image quality in the industry's most advanced automated X-ray inspection.
Features
• Ultra-high-speed 3D CT X-ray inspection
• Superior image quality
• Able to inspect very large circuit boards
• High resolution can detect wafers as small as 01005in
Specification
|
Camera |
Ultra-High Speed Line-Scan CCD Cameras (3 or 5 Units) |
|
X-ray Source |
130 kV max (user adjustable) |
|
Imaging Resolution |
7 μm,10 μm,15 μm, 20 μm (user selectable) |
|
Inspection Method |
2D, 2.5D, 3D Slicing, Planar CT (Optional) |
|
Motion Table & Control |
|
|
X-Axis Control |
High-precision ballscrew + AC-servo controller |
|
Y-Axis Control |
High-precision ballscrew + AC-servo controller |
|
Z-Axis Control |
High-precision ballscrew + AC-servo controller |
|
XY Axis Resolution |
N/A |
|
Board Handling |
|
|
Max PCB Size |
Standard: 510 x 660 mm |
|
2 Stages: 1000 x 660 mm |
|
|
PCB Thickness |
0.6-7mm |
|
Max PCB Weight |
12kg |
|
Top Clearance |
@ 20 μm: 50 mm |
|
@ 15 μm: 30 mm |
|
|
@ 10 μm: 15 mm |
|
|
@ 7 μm: 7 mm |
|
|
Bottom Clearance |
70mm |
|
Edge Clearance |
3 mm or 5 mm |
|
Conveyor Height |
880 - 920 mm (34.6 - 36.2 in.) |
|
Inspection Functions |
|
|
Capabilities |
Missing, Misalignment, Tombstone, Billboard, Tantalum Polarity, |
|
Rotation, Floating |
|
|
Defects |
Insufficient/Excess Solder, Bridging, Open, Solder Ball, Non-wetting, |
|
Void, Lifted Lead |
|
|
Dimensions |
|
|
wxya |
1750x2140x1945mm |
|
Weight |
4500kg |
|
Power Requirement |
200 - 240 VAC three phase, 50/60 Hz, 7 kVA |
|
(346-416 VAC optional three phase transformer) |
