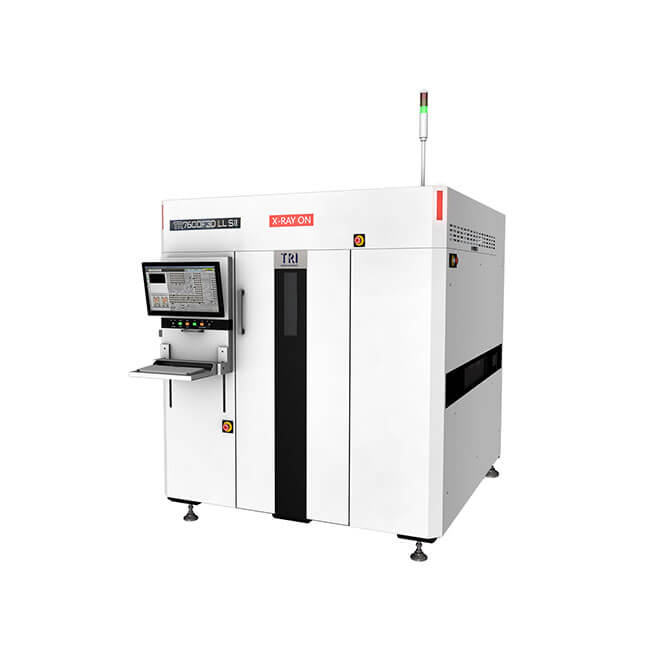

TRI TR7600F3D LL SII SMT X-ray Inspection Machine
TR7600F3D LL SII is the latest high-speed 3D AXI model with CT function, suitable for inspection of large boards up to 1000 x 660 mm, and can reduce missed detection and false positive rates without affecting production time.
Features
• Smart 3D AXI solution for 1000 x 660 mm large circuit board inspection
• 5 µm high-resolution complete defect inspection
• 20 FOV/s higher speed next-generation platform design
• MES tandem Industry 4.0 solution
Specification
| Camera | Flat Panel Detector |
| X-ray Source | 130 kV Max (User Adjustable) |
| Imaging Resolution | 5 μm,10 μm, 15 μm, 20 μm, 25 μm, 30 μm |
| Inspection Method | 2D, 2.5D, 3D Slicing, Planar CT (Optional) |
| Motion Table & Control | |
| X-Axis Control | High-Precision Ballscrew + AC-Servo Controller |
| Y-Axis Control | High-Precision Ballscrew + AC-Servo Controller |
| Z-Axis Control | High-Precision Ballscrew + AC-Servo Controller |
| XY Axis Resolution | N/A |
| Board Handling | |
| Max PCB Size | 1000 x 660 mm* |
| * The Max. PCB Size will vary depending on the angle of incidence | |
| PCB Thickness | 0.4-7 mm |
| Max PCB Weight | 12kg |
| Top Clearance | @ 20/25/30 μm: 50 mm |
| @ 15 μm: 45 mm | |
| @ 10 μm: 25 mm | |
| @ 5 μm: 5 mm | |
| Bottom Clearance | @ 30 μm: 55 mm |
| @ 5/10/15/20/25 μm: 70 mm | |
| Edge Clearance | 3 mm or 5 mm |
| Conveyor Height | 880 - 920 mm |
| * SMEMA Compatible | |
| Inspection Functions | |
| Capabilities | Missing |
| Misalignment | |
| Tombstone | |
| Billboard | |
| Tantalum Polarity | |
| Rotation | |
| Floating | |
| Defects | Insufficient/Excess Solder |
| Bridging | |
| Open | |
| Solder Ball | |
| Non-wetting | |
| Void | |
| Lifted Lead | |
| Dimensions | |
| wxya | 1730 x 2300 x 1975 mm |
| Note: not including signal tower, height: 502 mm | |
| Weight | 4850kg |
| Power Requirement | 200 - 240 VAC single phase, 50/60 Hz, 4 kVA |
