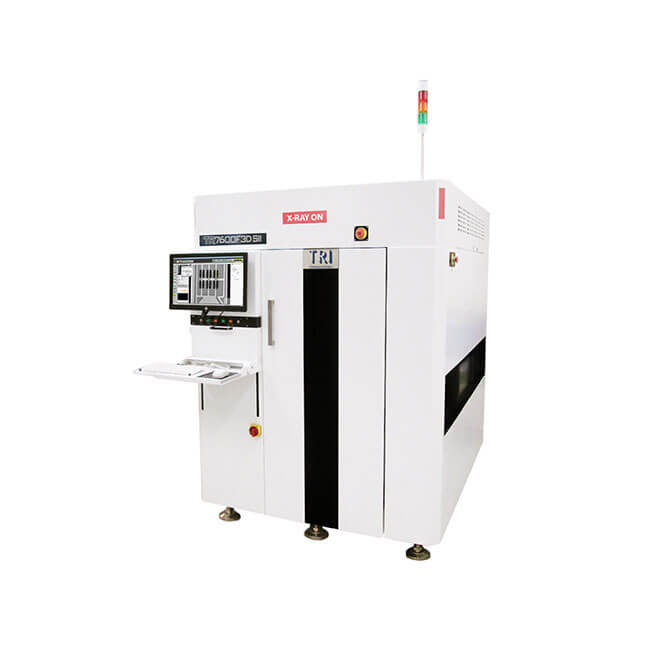

TRI TR7600F3D SII X-ray Inspection Machine
The new generation of high-speed online TR7600F3D SII automatic X-ray inspection solution has an inspection speed that is two to three times faster than the previous generation product and can inspect large circuit boards up to 900mm x 460mm without affecting the production line production time. This can reduce the missed detection and false positive rates at the same time.
Features
• 5 µm high-precision comprehensive defect detection
• New generation mechanical design provides faster speed, up to 10 FOV/s
• MES serial connection for easy integration into smart factories
Specification
|
Camera |
Flat Panel Detector |
|
X-ray Source |
130 kV Max (User Adjustable) |
|
Imaging Resolution |
5 μm,10 μm, 15 μm, 20 μm, 25 μm, 30 μm |
|
Inspection Method |
2D, 2.5D, 3D Slicing, Planar CT (Optional) |
|
Motion Table & Control |
|
|
X-Axis Control |
High-Precision Ballscrew + AC-Servo Controller |
|
Y-Axis Control |
High-Precision Ballscrew + AC-Servo Controller |
|
Z-Axis Control |
High-Precision Ballscrew + AC-Servo Controller |
|
XY Axis Resolution |
N/A |
|
Board Handling |
|
|
Max PCB Size |
TR7600F3D SII: 900 x 460 mm |
|
TR7600F3D LL SII: 1000 x 660 mm |
|
|
|
|
|
Note: The Max. PCB Size will vary depending on the angle of incidence |
|
|
PCB Thickness |
TR7600F3D SII: 0.6 - 7 mm |
|
TR7600F3D LL SII: 0.4 - 7 mm |
|
|
Max PCB Weight |
12kg |
|
Top Clearance |
@ 20/25/30 μm: 50 mm |
|
@ 15 μm: 45 mm |
|
|
@ 10 μm: 25 mm |
|
|
@ 5 μm: 5 mm |
|
|
Bottom Clearance |
@ 30 μm: 55 mm |
|
@ 5/10/15/20/25 μm: 70 mm |
|
|
Edge Clearance |
3 mm or 5 mm |
|
Conveyor Height |
880 - 920 mm |
|
|
|
|
* SMEMA Compatible |
|
|
Inspection Functions |
|
|
Capabilities |
Missing |
|
Misalignment |
|
|
Tombstone |
|
|
Billboard |
|
|
Tantalum Polarity |
|
|
Rotation |
|
|
Floating |
|
|
Defects |
Insufficient/Excess Solder |
|
Bridging |
|
|
Open |
|
|
Solder Ball |
|
|
Non-wetting |
|
|
Void |
|
|
Lifted Lead |
|
|
Dimensions |
|
|
wxya |
TR7600F3D SII: 1470 x 1971 x 1974 mm |
|
TR7600F3D LL SII: 1730 x 2300 x 1975 mm |
|
|
|
|
|
Note: not including signal tower, height: 502 mm |
|
|
Weight |
TR7600F3D SII: 3850 kg |
|
TR7600F3D LL SII: 4850 kg |
|
|
Power Requirement |
200 - 240 VAC single phase, 50/60 Hz, 4 kVA |
