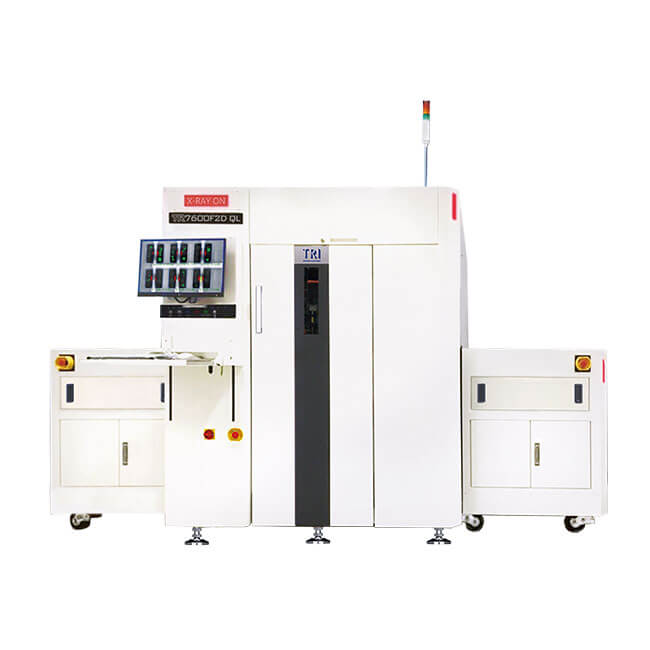

TRI TR7600F 2D QL X-ray Inspection Machine
The TR7600F2D QL is built on a new mechanical platform for the inspection of large boards, up to 2100 x 510 mm. Multi
High-Resolution inspections ranging from 5 – 30 µm. The AXI is also equipped with a specialized 2D Camera that supports automotive applications like barcode reading and fiducial detection.
The TR7600F2D QL can reliably detect defects in BGAs, Capacitors, Chips, WLCSP, DIMM Connectors, Flip-Chips, Ground Pads, Gullwing, Heat sinks, J-Leads, LED Chips, LGAs, Paladin Connector, Resistor, RNET, SiP, SMT Connectors, SOIC, SOT, Thermal Pad, QFNs, QFP and THTs.
Features
• Large Board Size Inspection, Up to 2100 x 510 mm
• Flexible Multi-Resolution Platform: 5 – 30 µm
• Inline fine-tuning without interrupting production
• AI-Powered Inspection algorithms for precise defect detection
• 2D Camera for barcode reading, fiducial detection, and bare board marking in the Automotive sector
• Smart Factory Ready for Easy MES Connectivity
• Applications: Server Board, LED Boards, Automotive ECU and more
Specification
|
Camera |
Flat Panel Detector |
|
X-ray Source |
60 - 130 kV |
|
Imaging Resolution |
5 μm - 25 μm |
|
Inspection Method |
2D |
|
Motion Table & Control |
|
|
X-Axis Control |
High-Precision Ballscrew + AC-Servo Controller |
|
Y-Axis Control |
High-Precision Ballscrew + AC-Servo Controller |
|
Z-Axis Control |
High-Precision Ballscrew + AC-Servo Controller |
|
X-Y Axis Resolution |
N/A |
|
Board Handling |
|
|
Max PCB Size |
2100 x 510 mm |
|
PCB Thickness |
0.6 - 7 mm |
|
Max PCB Weight |
12 kg |
|
Top Clearance |
@ 20/25 μm: 50 mm |
|
@ 15 μm: 40 mm |
|
|
@ 10 μm: 25 mm |
|
|
@ 5 μm: 3 mm |
|
|
Bottom Clearance |
70 mm |
|
Edge Clearance |
3 mm or 5 mm |
|
Conveyor Height |
880 - 920 mm |
|
|
|
|
* SMEMA Compatible |
|
|
Inspection Functions |
|
|
Capabilities |
BGAs |
|
Capacitors |
|
|
Chips |
|
|
Ground Pads |
|
|
Gullwing |
|
|
Resistor |
|
|
RNET |
|
|
SMT Connectors |
|
|
SOIC |
|
|
SOT |
|
|
Thermal Pad |
|
|
QFNs |
|
|
QFP |
