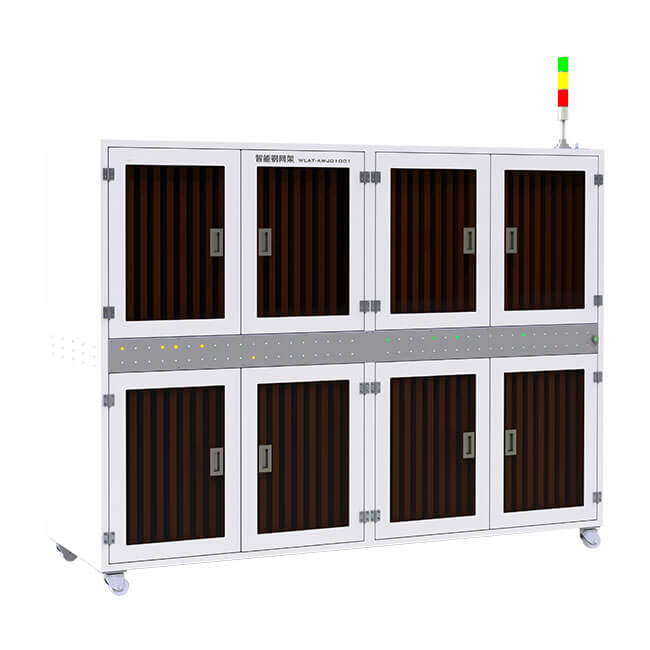

Smart steel grid

Steel mesh size:736*736*30mm (can be customized according to requirements)
Main frame material:30*30mm square steel pipe, thickness ≥1.5mm
Sheet metal clad iron sheet:Thickness ≥1mm
Main frame material:30*30mm square steel pipe, thickness ≥1.5mm

BASIC INFO

Smart steel grid

Used in the electronic components industry, mostly used in SMT factories, for storage and batching of electronic components (tray, bag, and box are compatible). It is suitable for line-side warehouse storage, receiving material search, and retrieving materials according to BOM. The station table takes materials sequentially. It is also used in various material management scenarios with large SKUs, large quantities, and frequent deposits and withdrawals.

Smart steel grid

Steel mesh size 736*736*30 (can be customized according to requirements)·When storing the stencil, put the stencil into the position corresponding to the light according to the light prompt.When reclaiming, the operator will find the corresponding material rack according to the systemprompts, and the light below the position to be reclaimed will be on·(The light will display a variety of colors, support multiple people to pick up materials, the systemwill prompt the operator which color to pick up) Waiting for the operator to take away the materials.·For storage, the operator first stores the materials according to the system prompts.When storing the materials, put the steel mesh into the corresponding position of the lighting according to the lighting prompts.·Realize the control of the equipment's three-color lights and the storage position lights,and the functions of data transmission with the host computer.

APPLICATION

Serial number	parameter name	skills requirement
1	Steel mesh size	73673630mm (can be customized according to requirements)
2	Number of steel meshes stored	76
3	Number of layers of steel mesh cabinet	Up and down 2 floors
4	Docking system	Can be connected with any WMS, ERP, MES, etc.
5	Door opening method	Hinge double door
6	Window on door	Acrylic transparent window (thickness ≥4mm), the window area accounts for ≥50%
7	Bottom universal wheel	Quantity ≥ 4, with brake, the load-bearing capacity of a single wheel is greater than the weight of the entire steel mesh cabinet when fully loaded
8	Steel mesh limit slot	Upper and lower 2 U-shaped chutes + rear limit stop
9	Steel mesh center distance	When storing, the center distance of adjacent steel mesh is 60mm (for easy access to the steel mesh)
10	Main frame material	30*30mm square steel pipe, thickness ≥1.5mm
11	Sheet metal clad iron sheet	Thickness ≥1mm
12	Window sheet metal iron sheet	Thickness ≥1.5mm
13	Sheet metal color	Surface paint treatment
14	Double door closed and fixed	Strong magnetic
15	Sealing method	All panels are connected to the frame, and a sealing strip is added, including when the door panel is closed, there is also a sealing strip at the contact part
