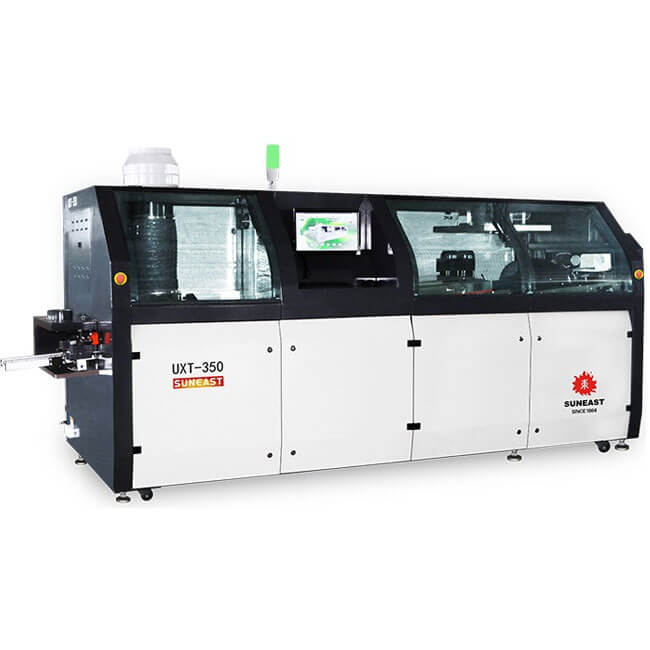

SUNEAST UXT-350 UXT-450 UXT-610 Wave Soldering Machine
Wave Soldering UXT Series
Model:UXT-350｜450｜610
UXT series is based on customer demand and adopts modular，digital and humanized design.With superiority in function，performance， stability， reliability， security， maintainability， operability and humanization， it not only reduces the operating costs， but also provides qualified products for quality， quantity and production with strong guarantee， it is the peak work in the field of soldering
equipment and the best choice and brand product of the customer.
●The transfer system uses sectional floating structure to prevent deformation of transportation rai.Non-stick titanium fingers design and directly connected to assure smooth PCB loading
●Spray flux er unit has integrated the mechanical moving body， gas and liquids prayer and electrical control into one u in it， and fast connect controller.New
precision spray nozzle ensures e ficient and even spraying， meeting the needs of water soluble soldering fluxes.
●Preheating system consists of three nergy saving drawer tructure preheating zones using hotair and infrared heating tube， allow selection of mixed preheating mode and ensure temperature st ablity
●Air cooling system(coldwater cooling system isp tional) .
●The solder pot is made of special material with coating of anti-corrosion， solder pot temperature is controlled+/-2℃.Twisting design of nozzle is convenient for installation and removal， the automatic flow guiding unit is convenient for solder dross collection and adjustment of the wave shape.Solder pot can be operated manually or automatically.
●Windows 7 operatingsystem， Chinese/English intelligent software， parameter saving， reuse， remote monito ring functions.Saving and loading parameter setting.Detecting the temperature profile.
Product parameters
| Modol NO | UXT-350 |
| Dimension：LxWxH(mm) | 4350*1480*1750 |
| Weigh | Approx.1800kg |
| Power Supply | 3PH 380V 50HZ |
| Startup Power | 32KW |
| Operation Powr Consumption | Approx.8KW |
| Control System | PC+PLC |
| Spraying movement | Step motor |
| Spray Pressure | 0.2Mpa-0.4Mpa |
| Flux Flow Arrange | Option |
| Auto Fill Flux | Standard |
| Exhaust | Top exhaust+Side exhaust |
| ExhaustDucting Diameter(mm) | Φ250 |
| Exhaust Capacity | 30m³/min |
| Preheating Mode | Hot air Convection / IR |
| Control Mode | PID |
| Preheating Zone Number | 3 |
| Preheating Length(mm) | 1800 |
| Preheating Temperature | Room temperature~200℃ |
| Warm-upTime(min) | Approx.12min(setting：150℃) |
| Blower Motor | 250W 3PH 220VAC |
| PCB Width(mm) | 50-350 |
| Convoyor Direction | L-R(Option：R-L) |
| Conveyor Speed(mm/min) | 500~1800 |
| Conveyor Height(mm) | 750±20 |
| Available Component Heigh (mm) | Top 120(Option： 240) Bottom 15 |
| Conveyor Speed Control Mode | Closef-loop stepless speed regulationg Inverter |
| Fingers | Spring Pressing Finger/D-40Type Fingor/Double-hook Finger/Heavy type double hook f inger,Options |
| Conveyor Angle | 4-7° |
| Type of solder Pot | Motor drive |
| Solder Pot Material | Casting Iron |
| Wave Height Adjustment | Inverter Approx：Digital Control by PC |
| Cooling Method | Air Cooling Option：Watercooling |
| Heater Power | 13.5KW |
| Solder Pot Temperature | 300℃ |
| Solder Pot Capacity | Approx.480KG |
| Wave Drive Power | 180Wx23PH220VAC |
| Solder Pot Warm-up Time | Approx.150min(setting：250℃) |
| Temperature Control Mode | PID |
| Finger Cleaning System | Brush |
| Modol NO | UXT-450 |
| Dimension：LxWxH(mm) | 4350*1580*1750 |
| Weigh | Approx.1950kg |
| Power Supply | 3PH 380V 50HZ |
| Startup Power | 32KW |
| Operation Powr Consumption | Approx.8.5kW |
| Control System | PC+PLC |
| Spraying movement | Step motor |
| Spray Pressure | 0.2Mpa-0.4Mpa |
| Flux Flow Arrange | Option |
| Auto Fill Flux | Standard |
| Exhaust | Top exhaust+Side exhaust |
| ExhaustDucting Diameter(mm) | Φ250 |
| Exhaust Capacity | 30m³/min |
| Preheating Mode | Hot air Convection / IR |
| Control Mode | PID |
| Preheating Zone Number | 3 |
| Preheating Length(mm) | 1800 |
| Preheating Temperature | Room temperature~200℃ |
| Warm-upTime(min) | Approx.12min(setting：150℃) |
| Blower Motor | 250W 3PH 220VAC |
| PCB Width(mm) | 50-450 |
| Convoyor Direction | L-R(Option：R-L) |
| Conveyor Speed(mm/min) | 500~1800 |
| Conveyor Height(mm) | 750±20 |
| Available Component Heigh (mm) | Top 120(Optn： 250) Bottom 15 |
| Conveyor Speed Control Mode | Closef-loop stepless speed regulationg Inverter |
| Fingers | Spring Pressing Finger/D-40Type Fingor/Double-hook Finger/Heavy type double hook f inger,Options |
| Conveyor Angle | 4-7° |
| Type of solder Pot | Motor drive |
| Solder Pot Material | Casting Iron |
| Wave Height Adjustment | Inverter Approx：Digital Control by PC |
| Cooling Method | Air Cooling Option：Watercooling |
| Heater Power | 13.5KW |
| Solder Pot Temperature | 300℃ |
| Solder Pot Capacity | Approx.550KG |
| Wave Drive Power | 180W*23PH220VAC |
| Solder Pot Warm-up Time | Approx.150min(setting：250℃) |
| Temperature Control Mode | PID |
| Finger Cleaning System | Brush |
| Modol NO | UXT-610 |
| Dimension：LxWxH(mm) | 4350*1740*1750 |
| Weigh | Approx.2150kg |
| Power Supply | 3PH 380V 50HZ |
| Startup Power | 45KW |
| Operation Powr Consumption | Approx.11KW |
| Control System | PC+PLC |
| Spraying movement | Step motor |
| Spray Pressure | 0.2Mpa-0.4Mpa |
| Flux Flow Arrange | Option |
| Auto Fill Flux | Standard |
| Exhaust | Top exhaust+Side exhaust |
| ExhaustDucting Diameter(mm) | Φ250 |
| Exhaust Capacity | 30m³/min |
| Preheating Mode | Hot air Convection / IR |
| Control Mode | PID |
| Preheating Zone Number | 3 |
| Preheating Length(mm) | 1800 |
| Preheating Temperature | Room temperature~200℃ |
| Warm-upTime(min) | Approx.12min(setting：150℃) |
| Blower Motor | 250W 3PH 220VAC |
| PCB Width(mm) | 50-610 |
| Convoyor Direction | L-R(Option：R-L) |
| Conveyor Speed(mm/min) | 500-1800 |
| Conveyor Height(mm) | 750±20 |
| Available Component Heigh (mm) | Top 120(Option： 250) Bottom 15 |
| Conveyor Speed Control Mode | Closef-loop stepless speed regulationg Inverter |
| Fingers |
Heavy type double hook f inger/ Opt on：Special jig for fixture |
| Conveyor Angle | 4-7° |
| Type of solder Pot | Motor drive |
| Solder Pot Material | Casting Iron |
| Wave Height Adjustment | Inverter Approx：Digital Control by PC |
| Cooling Method | Air Cooling Option：Watercooling |
| Heater Power | 18KW |
| Solder Pot Temperature | 300℃ |
| Solder Pot Capacity | Approx.640KG |
| Wave Drive Power | 180Wx23PH220VAC |
| Solder Pot Warm-up Time | Approx.150min(setting：250℃) |
| Temperature Control Mode | PID |
| Finger Cleaning System | Brush |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
