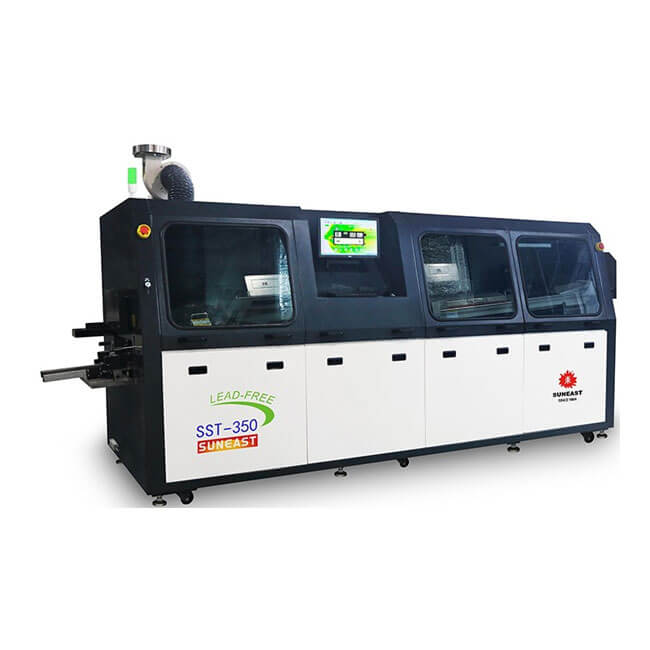

SUNEAST SST-350 Wave Soldering Machine
Lead-free Wave Soldering SST Series
Model:SST-350
SST series is a fully upgraded wave soldering with enhanced modular.digital and humanized design to meet customer needs， With more perfect function， more advanced performance， further improved stability and reliability， the operation and maintenance is more convenient， and the customer operation cost is reduced more.
Conveyor：Direct buffering input structure.Stainless steel chain conveyor， durable and special design for aluminum alloy track.Adopt segment floating structure to prevent from deformation
Pre-heatingzones：Designforenergysavingandremovablemodules(drawerdesign).Anycombinationofinfraredandhotairconvection.Use PID control to achieve±2℃accuracy.The temperature variation for pre-heating zone and soldering zone is less than s 5℃
Flux spraying system：Managed by digital control.The motion of the spray nozzle is controlled by stepper motor.
Flux supply is controlled automatically for optimized effect.Exhausting and filter system installed on the top
The solder pot is made by cast iron with anti-corrosion ceramic coating equipped with two low flowrate nozzles
Aircoolingsystem：coolingrate4-6℃/s(adjustable)
PC+PLC control system.Windows 7 operation system with Chinese/English operation interface.Processing profile and data auto saving function.Alarm for detecting the flux and solder level
Product parameters
| Modol NO | SST-350 |
| Dimension：LxWxH(mm) | 4350×1422×1750 |
| Weigh | Approx.1600kg |
| Power Supply | 3PH 380V 50HZ |
| Startup Power | 33KW |
| Operation Powr Consumption | 8KW |
| Control System | PC+PLC |
| Spraying movement | Step motor |
| Spray Pressure | 0.2Mpa~0.4Mpa |
| Flux Flow Arrange | option |
| Auto Fill Flux | Standards |
| Exhaust | Top exhaust |
| ExhaustDucting Diameter(mm) | Φ250 |
| Exhaust fan power | 750W |
| Preheating Mode | Convection / IR emitter |
| Control Mode | PID |
| Preheating Zone Number | 3 |
| Preheating Length(mm) | 1800 |
| Preheating Temperature | Room temperature~200℃ |
| Warm-upTime(min) | Appro×.12min(setting：150℃) |
| PCB Width(mm) | 50~350 |
| Convoyor Direction | L→R(Option：R→L) |
| Conveyor Speed(mm/min) | 500~1800 |
| Conveyor Height(mm) | 750±20 |
| Available Component Heigh (mm) | Top)120,Bottom15 |
| Conveyor Speed Control Mode | Closed loop stepless speed regulationg Inverter |
| Fingers | Spring Pressing Finger/D-40Type Fingor/Double-hook Finger/Heavy type double hook f inger,Options |
| Conveyor Angle | 4~7° |
| Type of solder Pot | Motor drive |
| Solder Pot Material | Casting Iron |
| Wave Height Adjustment | Digital Control by PC |
| Cooling Method | Air Cooling Option：Water cooing |
| Heater Power | 13.5KW |
| Solder Pot Temperature | 300°℃ |
| Solder Pot Capacity | Approx.480KG |
| Wave Drive Power | 180W*2 3PH 220VAC |
| Solder Pot Warm-up Time | Approx.150min(setting：250℃) |
| Temperature Control Mode | PID |
| Finger Cleaning System | Brush |
