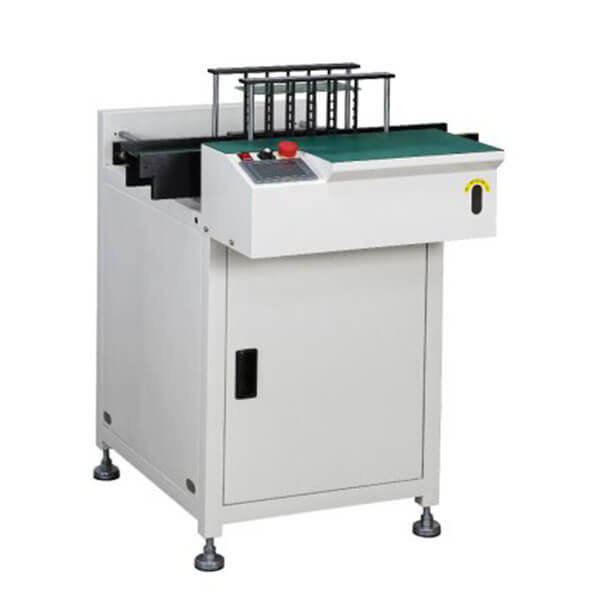

SMT NG buffer Conveyor
● Exterior structure: plate gold structure and aluminum profile into the frame, the surface spray treatment and the color is wavy white.
● Microcomputer PLC control system works stably and reliably.
● Operating by touch screen, with automatic fault diagnosis function, convenient man-machine dialogue.
● Multiple sound and light and touch screen inside prompt alarm function.
● Using stepper motor to transmission.
● The bad board can be stored 10 pcs by rising and the good boards can be directly transported to the next machine.
● Applicable behind AOI and SPI devices.
● Double line number to distinguish NG\OK.
|
External dimension （L*W*H） |
1000*900*950mm |
|
PCB size |
50*50～850*350mm (Wide adjustment range can be customized) |
|
PCB board supply height |
900±20mm，foot cup adjust height |
|
PCB board transfer direction |
Left - right or right - left |
|
PCB conveying track |
Uses special guide rail and imported circular 3mm belt |
|
Transmission motor |
15W speed regulating motor (1 set) |
|
Control system |
Panasonic PLC+ 4.3# Samkoon Touch Screen |
|
Spacing distance |
The maximum spacing for each layer is 30MM |
|
Store NG board quantity |
10 pieces |
|
Electric source |
AC220V/ 50-60Hz (Independent electric box control) |
|
Frame material |
Full sheet metal welding, the surface of electrostatic powder computer gray |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
