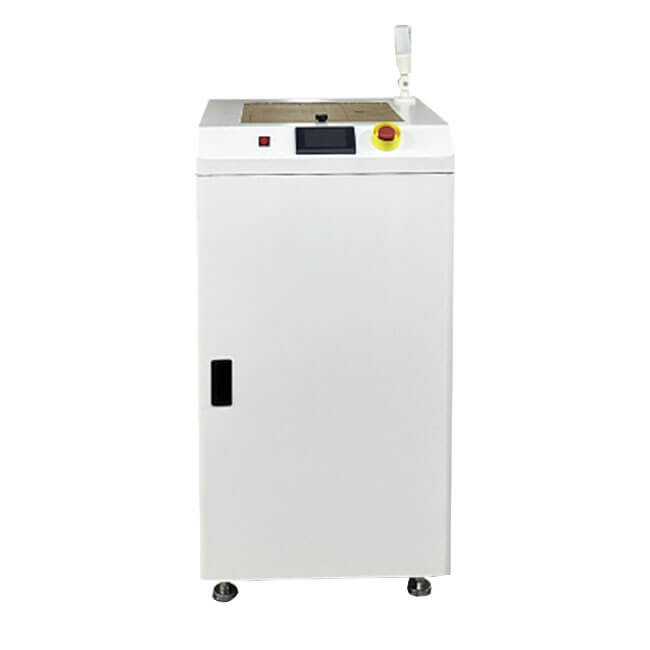

SMT 300/350 90 Degree PCB Turn Conveyor

Transport height ：900±20mm (specify)
PCB board dimension (L×W) ~ (L×W)：(50×50) ~ (450×300)
Dimension (L×W×H)：520×520×900
Weight：Approx.110kg

BASIC INFO

SMT 300/350 90 Degree PCB Turn Conveyor

1. The top safety caps of PCB turn conveyor can be opened for machine hardware maintenance. 2. It is equipped with intelligent touch screen control interface which is quite convenient. 3. The turning speed of PCB board is adjustable to avoid skid. 4. It is equipped with stable width adjustment device (manual screw control). 5. It has small floor space. 6. It is equipped with compatible SMEMA port.

The PCB turn conveyor is used to transport PCB board automatically. It can realize PCB substrate turn and direction transforming. Thus the PCB turn conveyor can save labor cost, meanwhile, it can reduce artificial error and then reduce material consumption.
This machine can be used for board loading and unloading of 90 degree lifting angle in SMT production line. The supply voltage, transport height, transport direction can be set according to customers' requirements.

Specifcation

Circulation time	About 15 seconds
Power supply	220-230V AC (specify), single phase
Electrical load	Approx. 180 VA
Air pressure	0.45-0.6Mpa
Gas flow	Approx. 30L/min
Transport height	900±20mm (specify)
Transport direction	L→R or R→L (optional)

Model	300	350
PCB board dimension (L×W) ~ (L×W)	(50×50) ~ (450×300)	(50×50) ~ (450×350)
Dimension (L×W×H)	520×520×900	570×570×900
Weight	Approx.110kg	130kg
