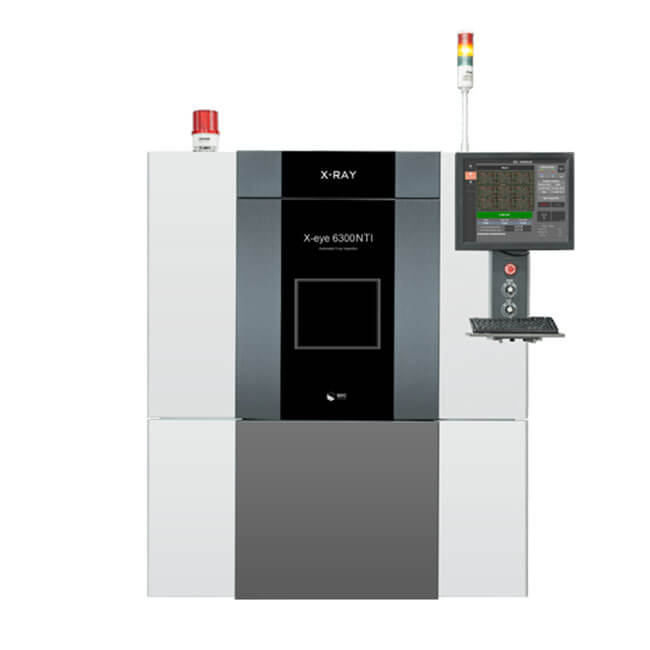

SEC X-eye 6300 In-line 3D CT X-ray Inspection Machine

X-ray Tube：160 kV / 500 µA
Min. Resolution：0.8 ~ 15 µm
Table Size：Min : 50 x 50 (mm), Max : 330 x 250 (mm)
Weight：4,200kg

BASIC INFO

SEC X-eye 6300 In-line 3D CT X-ray Inspection Machine

High-speed 3D In-Line Inspection System (~3.5 sec/FOV)

Hybrid Tube with long life span for In-line purpose (10,000hrs/Filament)

Best Solution for both-side layered PCB

High-speed In-Line 3D CT Inspection System
Automatically inspects the defects of products in the customer's line with high-speed 3D CT tomography.
Able to inspect every defect of Double-sided PCBA & BGA mounted components precisely by solving overlapped X-ray image issue.
Inspection speed of 3.5sec/FOV from loading to automatic Good/NG judgment.

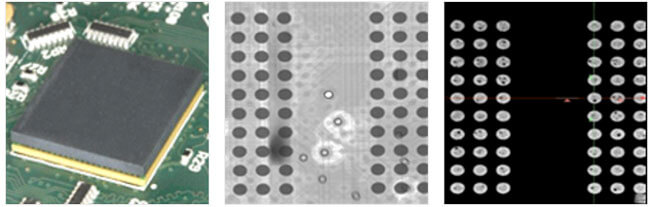

BGA Void / 3D Inspection

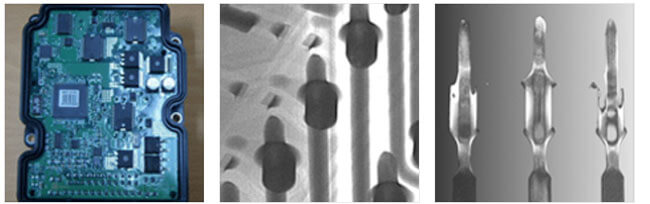

Through Hole Filling / 3D Inspection

Applications

Specifications

X-ray Tube	160 kV / 500 ㎂
Min. Resolution	0.8 ~ 15 ㎛
Table Size	Min : 50 x 50 (mm), Max : 330 x 250 (mm)
Detector	12 inch FPXD
CT Scan Method	Oblique CT
Objects	BGA, Through Hole, Chip, QFN, QFP
Defects	BGA Short, Bridging, Open, De-wet, Void, etc
Foot print	1,360 x 1,880 x 1,700 mm Control Box : 640 x 950 x 1,190 mm
Weight	4,200kg
