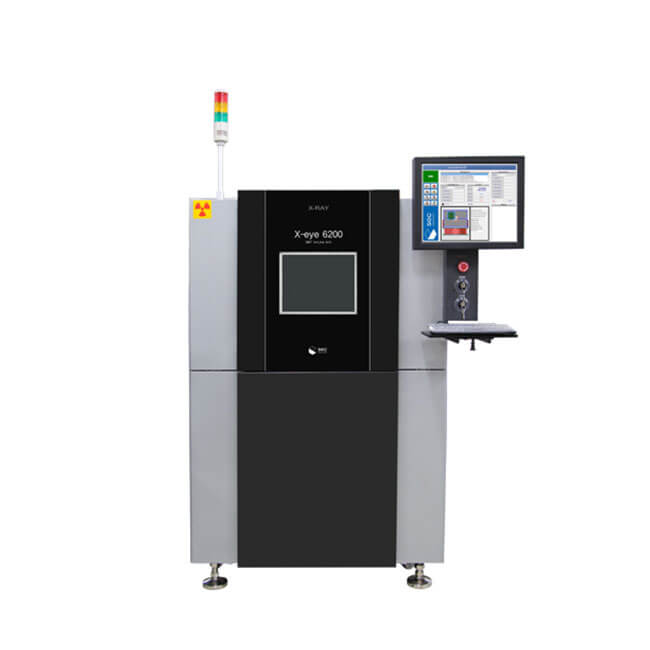

  •  SEC X-eye 6200 2D In-line X-ray Inspection Machine
SEC X-eye 6200 2D In-line X-ray Inspection Machine

SEC X-eye 6200 2D In-line X-ray Inspection Machine

  • X-ray Tube:160 kV / 500 µA (option 130 KV / 300 µA)
  • Min. Resolution:0.8 ~ 15 µm
  • Table Size:Min : 50 x 50 (mm), Max : 330 x 250 (mm)
  • Detector:1.6 M Pixel FPD
BASIC INFO

SEC X-eye 6200 2D In-line X-ray Inspection Machine

High speed 2D In Line inspection System (0.3 sec/FOV)

Hybrid Tube with long life span for In-line purpose (10,000hrs/Filament)

WAXI : Wire Automatic X-ray Inspection Detection of wire defects possible (Shorts, sweep, mssing, etc)

In-Line X-ray Inspection System
Automatically in-line inspect Solder joint defects of PCBA, and other defects on Hidden Components.
Able to judge Good/NG fast with inspection speed of 1sec/FOV and the program can set ROIs conveniently.
Performing X-ray inspection in various production site, integrated with other manufacturing equipements.

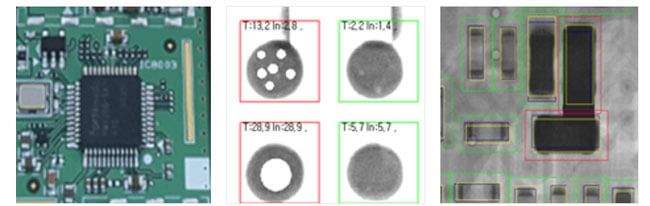

SMT Chip BGA / 2D Inspection

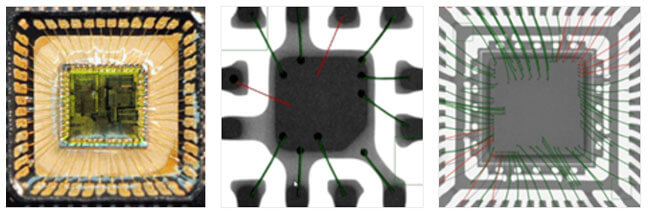

Wire Bonding / 2D Inspection

Applications

Specifications

X-ray Tube

160 kV / 500  (option 130 KV / 300 )

Min. Resolution

0.8 ~ 15

Table Size

Min : 50 x 50 (mm), Max : 330 x 250 (mm)

Detector

1.6 M Pixel FPD

Objects

BGA, Chip, QFN, QFP, Wire Bonding

Defects

BGA : Short, Bridging, Void

Chip : Manhattan, Miss align, Short

Wire Bonding : Sweep, Broken, Double Bonding, Missing

Dimension

1,000(W) x 1,360(D) x 1,450(H)mm / 2,000kg

SMT Inspection Equipment Brand

Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production LineSMT Pick and place machineSMT Stencil PrinterSMT Inspection equipmentSMT Weling equipmentSMT Intelligent Storage SystemSMT Automatic Insertion MachineSMT Peripheral EquipmentSMT FeedersSMT NozzlesSMT Spare Parts etc any kind SMT machines you may need, please contact us for more information:  WeChat: +8613714564591  Email: sales@efsmt.com

FAQ:

Q: What we can do for you?

A: One-stop SMT Solution Supplier; Reliable SMT Partner.

Q.What is your MOQ requirement for the machine?

A. 1 set moq requirement for the machine.

Q. This is the first i use this kind of machine, is it easy to operate?

A: Provide free training,There are also English manuals or instructional videos to show you how to use the machine.

Q: If the machine has any problem after we receive it, how can we do?

A: Our engineer will help to solve it first,  and free parts send to you in machine warranty period.

Q: Do you provide any warranty for the machine?

A: Yes 1 year warranty will be provided for the machine.

Q: What is your payment terms?

A: 30% deposit in advance and 70% balance before shipment.
