SEC X-eye 6300 3D CT X-ray Inspection Machine
High-speed 3D In-Line Inspection System (~3.5 sec/FOV)
Hybrid Tube with long life span for In-line purpose (10,000hrs/Filament)
Best Solution for both-side layered PCB
High-speed In-Line 3D CT Inspection System
Automatically inspects the defects of products in the customer's line with high-speed 3D CT tomography.
Able to inspect every defect of Double-sided PCBA & BGA mounted components precisely by solving overlapped X-ray image issue.
Inspection speed of 3.5sec/FOV from loading to automatic Good/NG judgment.

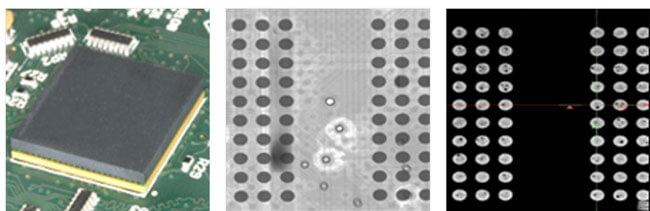

BGA Void / 3D Inspection

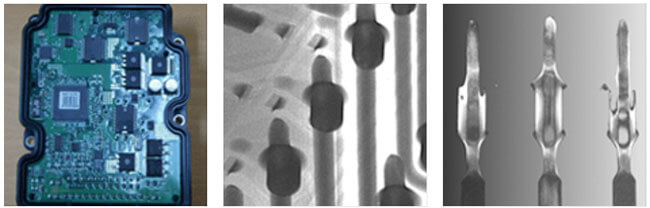

Through Hole Filling / 3D Inspection
Applications
Specifications
| X-ray Tube | 160 kV / 500 µA |
| Min. Resolution | 0.8 ~ 15 µm |
| Table Size | Min : 50 x 50 (mm), Max : 330 x 250 (mm) |
| Detector | 12 inch FPXD |
| CT Scan Method | Oblique CT |
| Objects | BGA, Through Hole, Chip, QFN, QFP |
| Defects | BGA Short, Bridging, Open, De-wet, Void, etc |
| Foot print | 1,360 x 1,880 x 1,700 mm |
| Control Box : 640 x 950 x 1,190 mm | |
| Weight | 4,200kg |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
