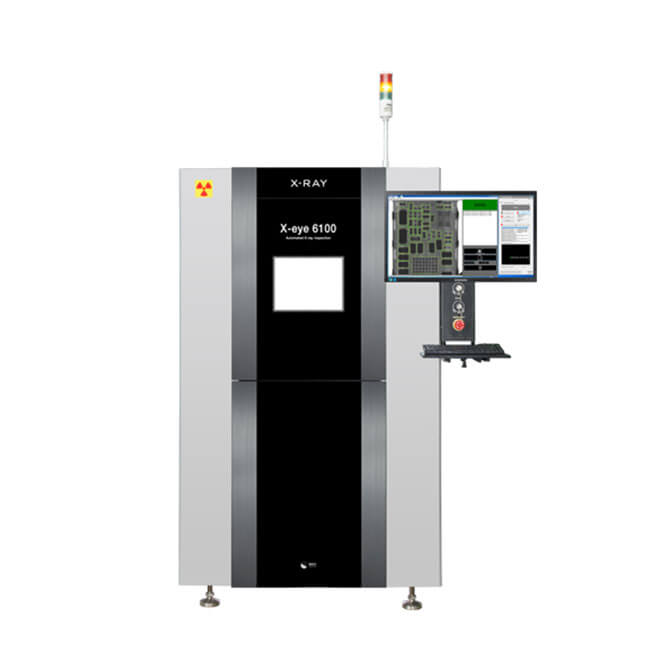

SEC X-eye 6100 In-Line 2D X-ray Inspection Machine
High speed 2D In-Line Inspection System (0.5 sec/FOV)
BGA, Chip, QFN, QFP, Battery
Short, Bridging, Manhattan, Miss align, etc
In-Line 2D X-ray Inspection Machine
Automatically In-Line inspect Solder Joint defects of PCBA, and other defects on Hidden Components.
Able to be customized regarding Application by users setting ROIs.
Especially, area type image scanning can gain high resolution results fast.

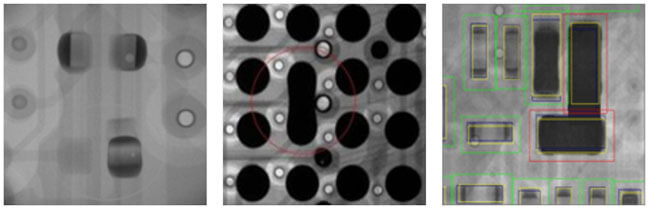

SMT Chip BGA (Short, Miss align, Missing)

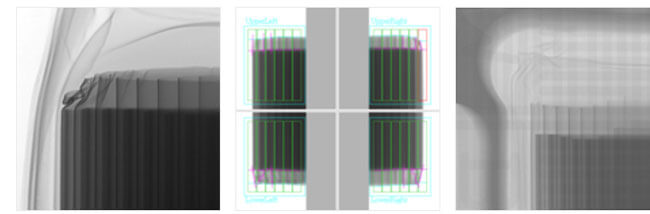

Battery Inspection
Applications
Specifications
|
X-ray Tube |
100 kV / 200 ㎂ (Closed Tube) |
|
Min. Resolution |
5㎛ |
|
Table Size |
400 X 400 mm |
|
AXIS |
n/a |
|
Detector |
5 inch FPXD |
|
CT Scan Method |
Unable CT |
|
Objects |
BGA, Chip, QFN, QFP, Battery |
|
Foot print |
1,020 x 1,350 x 1,720 mm |
|
Weight |
1,500kg |
SMT Inspection Equipment Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
