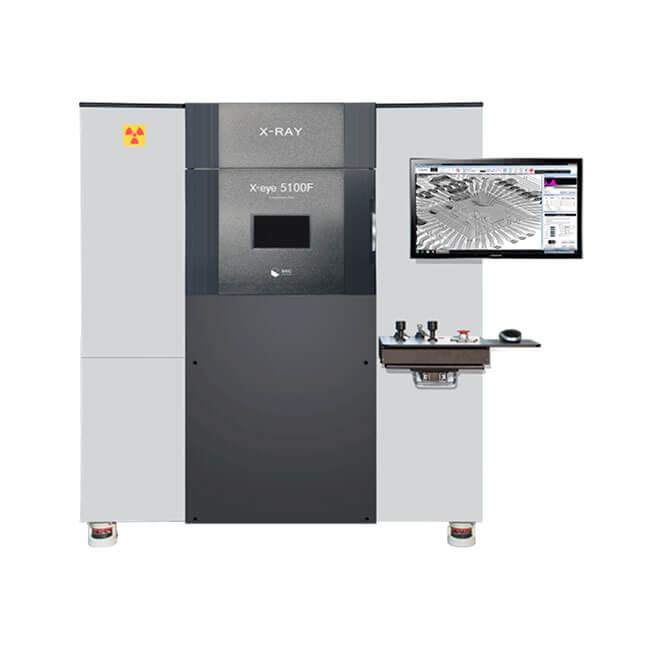

SEC X-eye 5100 Series X-ray Inspection Machine
Entry-level X-ray Inspection System
Non-destructive analysis of semiconductor, SMT, and electron/electric components
Inspection S/W is able to be installed for mass production of SMT and electron/electric components
Various convenient functions – Easy of use
Practical X-ray Inspection System
100kV ~ 130kV Micro-focus Closed tube and high-definition Flat Panel Detector are installed and high-resolution image can be gained.
Customer convenience is primarily considered in operation and maintenance of the product.
Customization is available because it is specially designed to be added up any necessary functions depending on customer needs with reasonable prices.

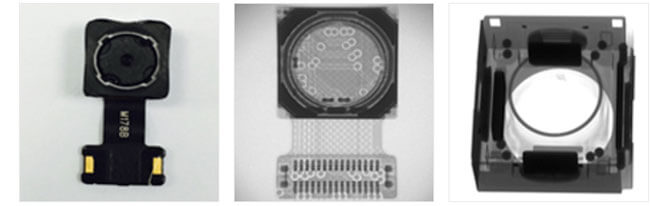

Camera Module

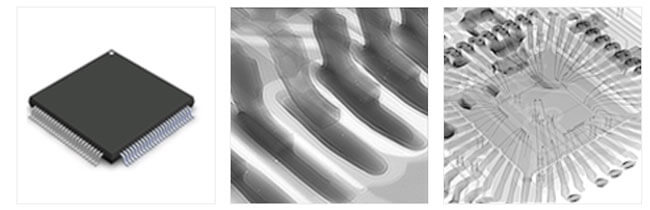

Applications
Specifications
|
X-ray Tube |
100 kV / 200 µA (option 130 kV / 200 µA) |
|
Min. Resolution |
5 µm |
|
Table Size |
460 X 340 mm (option 550 X 550 mm) |
|
AXIS |
X, Y, Z, Tilt (±50º) |
|
Detector |
2.5 inch FPXD or 5 inch FPXD |
|
CT Scan Method |
Unable CT |
|
Foot print |
1,270(W) x 1,025(D) x 1,460(H)mm |
|
Weight |
720kg |
SMT Inspection Equipment Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
